Front Seat Control Switch: Removal

WARNING: This page is about a different car, the 2023 Ford Bronco Sport. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Driver seat shown, passenger seat similar.
  1. Remove the front seat. Refer to: Front Seat

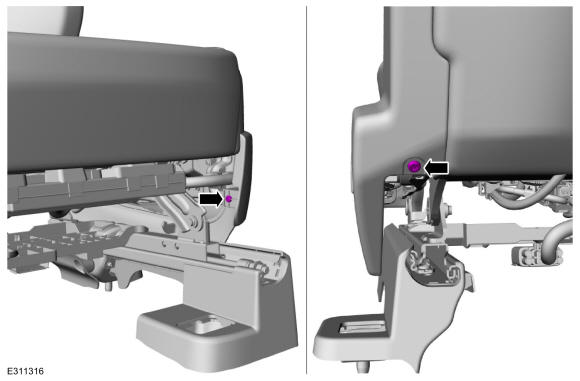

  2. Remove the front seat side shield screws.
    GFD747369Courtesy of FORD MOTOR COMPANY

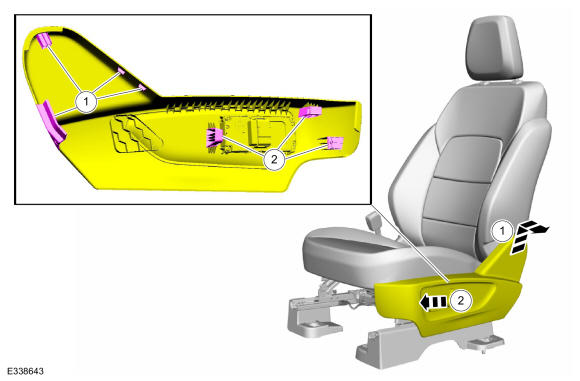

    1. Firmly grasp the front seat side shield, lift up and out, separating the front seat side shield from the recliner bracket.
    2. Slide the front seat side shield forward and separate the front seat side shield from the seat.
    GFD747373Courtesy of FORD MOTOR COMPANY

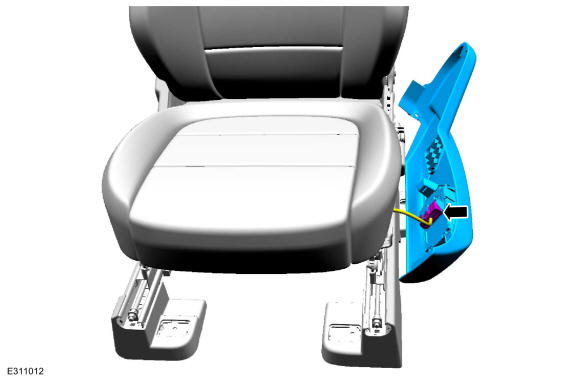

  4. Disconnect the electrical connector and remove the front seat side shield
    GFD747374Courtesy of FORD MOTOR COMPANY

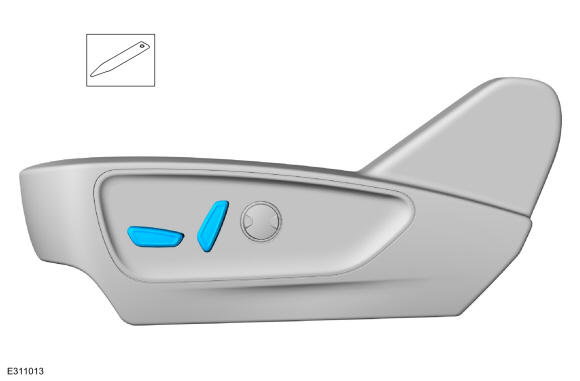

  5. Remove the front seat control switch knob(s).
    GFD747387Courtesy of FORD MOTOR COMPANY

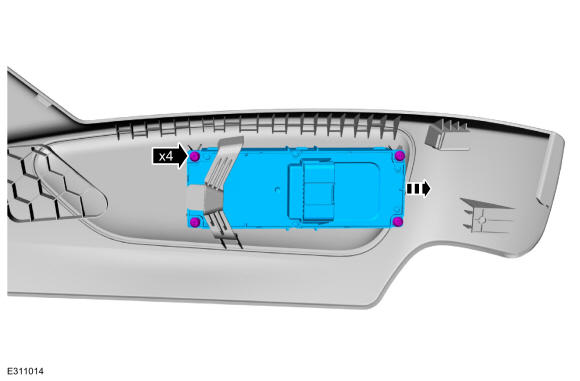

  6. Remove the screws and the front seat control switch.
GFD747388Courtesy of FORD MOTOR COMPANY
