Front Door Alignment: Inspection

WARNING: This page is about a different car, the 2023 Ford Bronco Sport. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

NOTE: LH side shown, RH side similar.

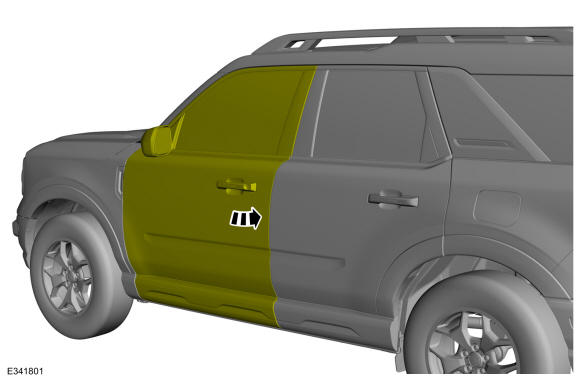

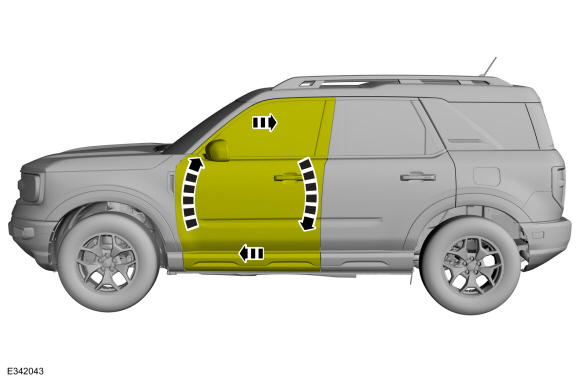

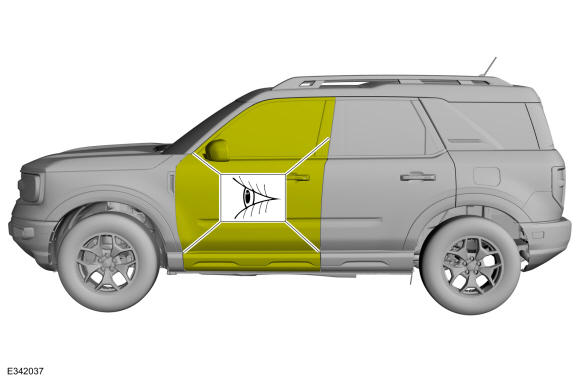

Inspect the front door-to-body dimensions.

Courtesy of FORD MOTOR COMPANY

Adjustment

All alignments

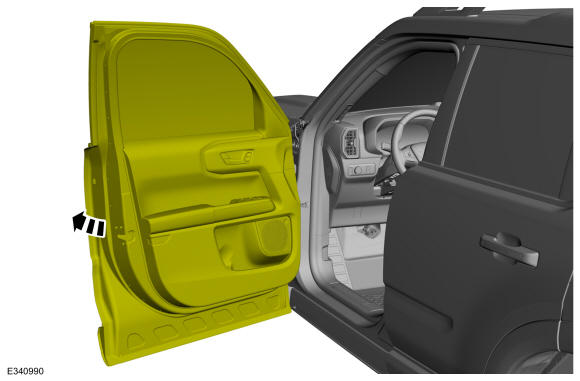

Open the door.

Courtesy of FORD MOTOR COMPANY

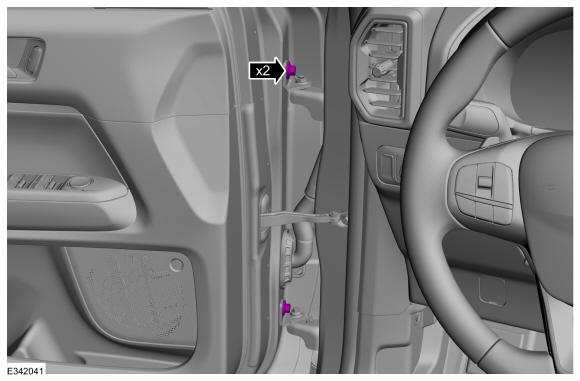

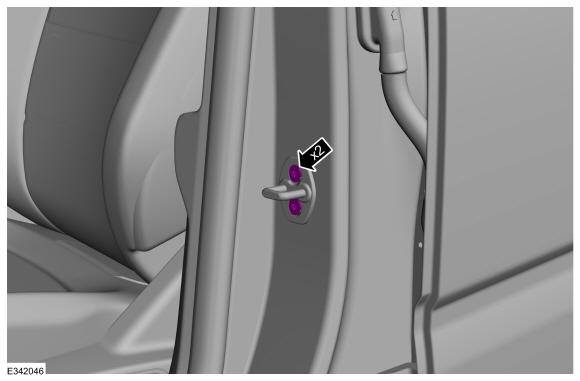

Remove the bolts and the striker assembly.
Torque

: 18 lb.ft (25 Nm)

Courtesy of FORD MOTOR COMPANY

Front door in and out, up and down alignment

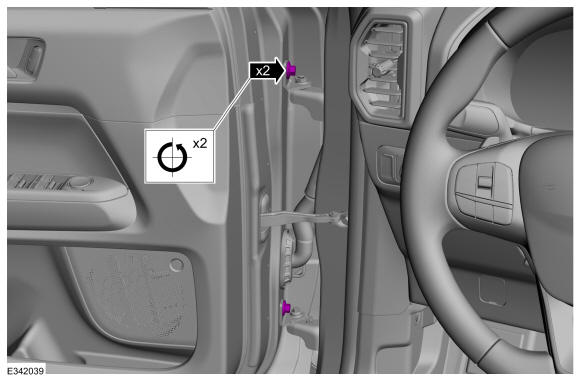

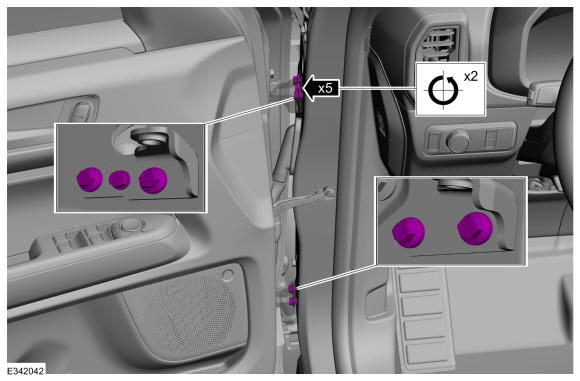

Loosen the bolts to permit movement of the door. Loosen: : 2 turn(s)

Courtesy of FORD MOTOR COMPANY

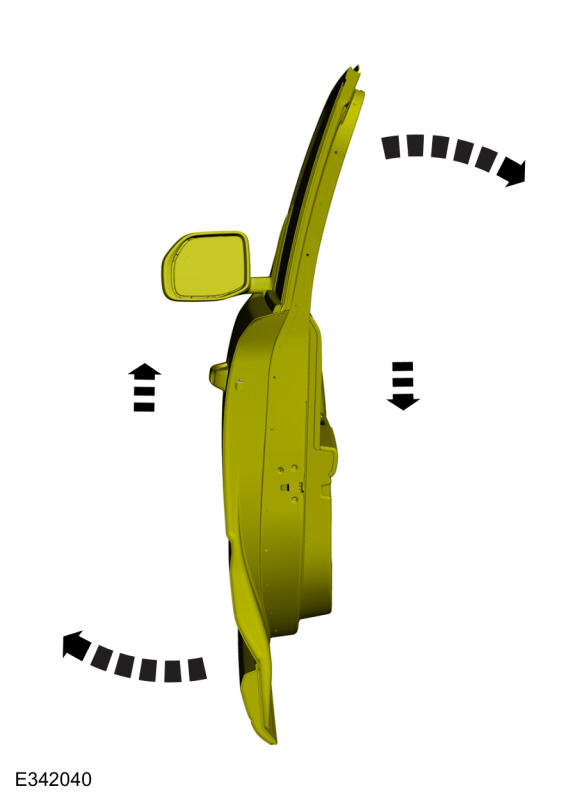

Adjust the door as required.

Courtesy of FORD MOTOR COMPANY
Tighten the bolts.
Torque

: 35 lb.ft (48 Nm)

Courtesy of FORD MOTOR COMPANY

Front door fore, aft and tilt alignment
Loosen the bolts to permit movement of the door. Loosen: : 2 turn(s)

Courtesy of FORD MOTOR COMPANY
Carefully close the door.

Courtesy of FORD MOTOR COMPANY
Adjust the door as required.

Courtesy of FORD MOTOR COMPANY
Carefully open the door.

Courtesy of FORD MOTOR COMPANY

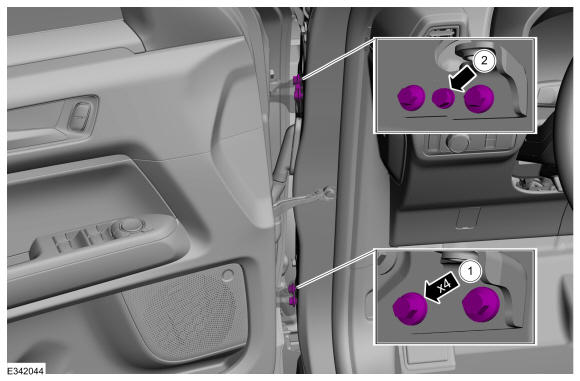

Tighten the bolts.
Torque

: 1.: 22 lb.ft (30 Nm) 2.: 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY

All alignments

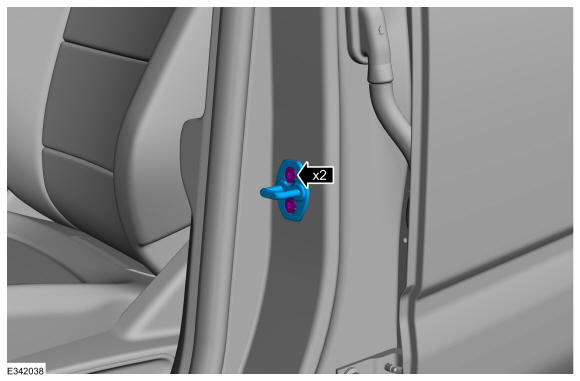

Install the striker assembly.
Torque

: 18 lb.ft (25 Nm)

Courtesy of FORD MOTOR COMPANY

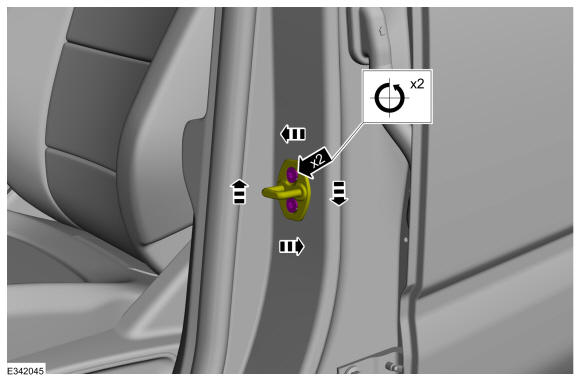

Loosen the bolts to permit movement of the striker assembly. Loosen: : 2 turn(s)

Courtesy of FORD MOTOR COMPANY
Tighten the bolts.
Torque

: 18 lb.ft (25 Nm)

Courtesy of FORD MOTOR COMPANY
Inspect the body-to-front door dimensions.

Courtesy of FORD MOTOR COMPANY
