Differential Fluid Level Check

WARNING: This page is about a different car, the 2022 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

For information on Ford Color Coded Illustrations refer to OEM COLOR CODING

Check

With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .

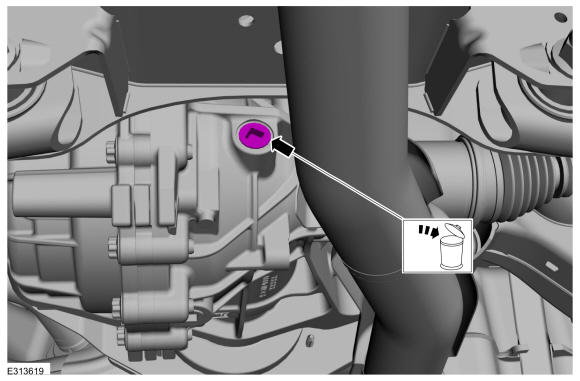

Remove and discard the RDU fluid fill plug.

Courtesy of FORD MOTOR COMPANY

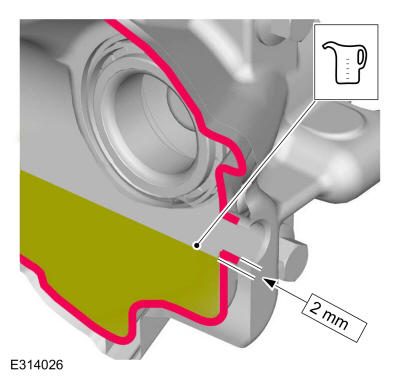

If fluid level is low, check and top off the RDU with clean RDU fluid. The RDU fluid level should be within 2mm (0.079 in.) from the fluid level fill plug opening.

Courtesy of FORD MOTOR COMPANY

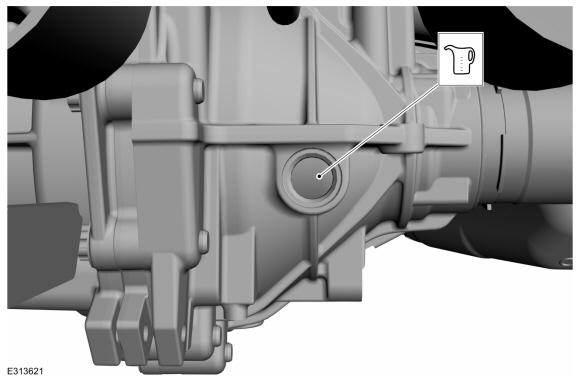

If empty, fill the RDU with clean RDU fluid. Refer to: Specifications .

Courtesy of FORD MOTOR COMPANY
NOTE: Make sure that a new component is installed.

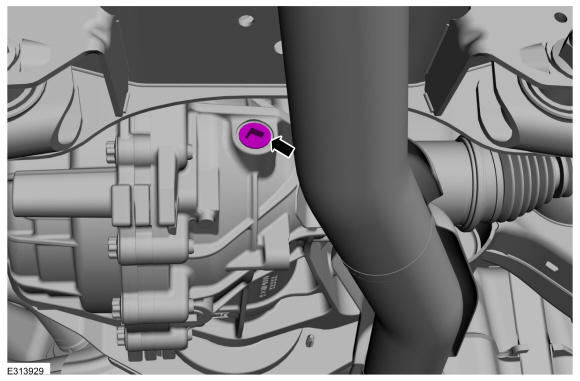

Install the RDU fluid fill plug.

Torque: 21 lb.ft (29 Nm)

Courtesy of FORD MOTOR COMPANY
