Image Processing Module A (IPMA): Removal
NOTE:
Removal steps in this procedure may contain installation details.
- If a new IPMA (image processing module A) is being installed, using a diagnostic scan tool, begin the PMI (programmable module installation) process for the IPMA following the on-screen instructions.

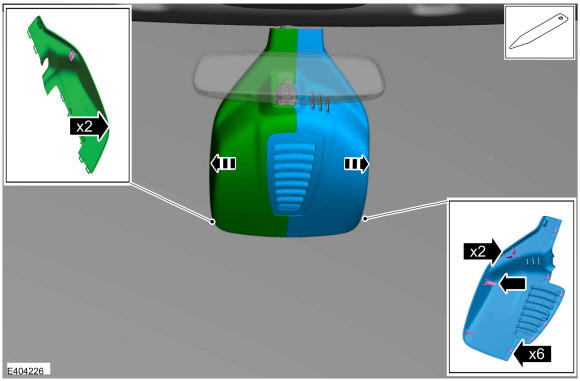

- Remove the clips and the IPMA covers.Use the General Equipment: Interior Trim Remover
-

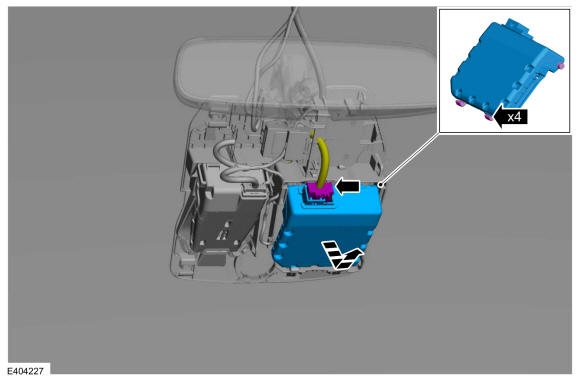

- Disconnect the electrical connector.
- Release the tabs and remove the IPMA.
