Fuel Pump Driver Module (FPDM): Removal

NOTE: Removal steps in this procedure may contain installation details.
  1. Position aside the RH load space trim panel.
    GFD771431Courtesy of FORD MOTOR COMPANY

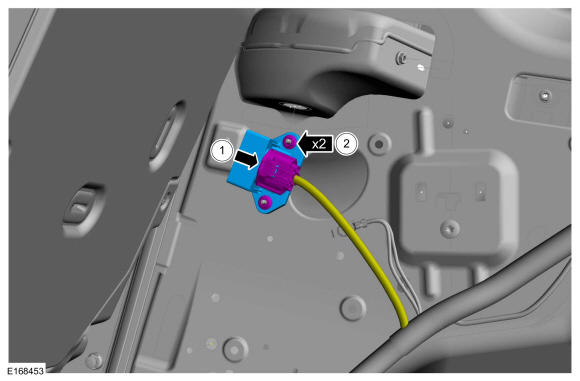

    1. Disconnect the FPDM electrical connector.
    2. Remove the FPDM retaining nuts and the FPDM.

      Torque: 89 lb.in (10 Nm)

GFD771432Courtesy of FORD MOTOR COMPANY
