Powertrain/Drivetrain Mount Neutralizing

Adjustment

NOTE: Refer to the appropriate Service Information and procedure for special instructions on loosening and tightening mount fasteners.

All vehicles

Refer to: Jacking and Lifting - 3.5L Duratec (202kW/275PS)/3.5L EcoBoost (235kW/320PS) - Overview
3.5L Duratec (202kW/275PS)/3.5L EcoBoost (235kW/320PS)
Remove the engine crossmember.Refer to: Engine Crossmember

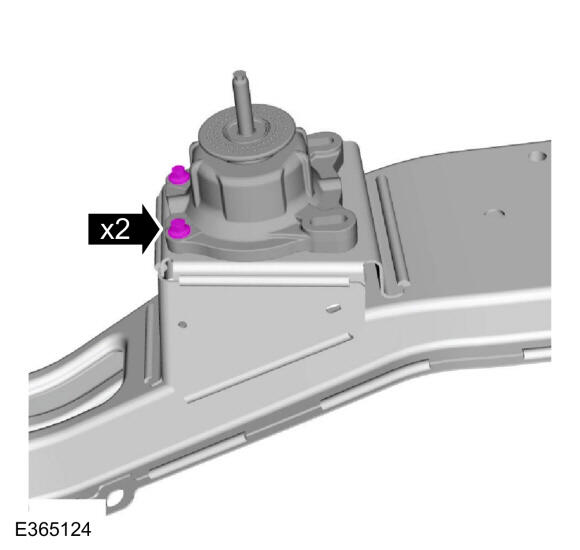

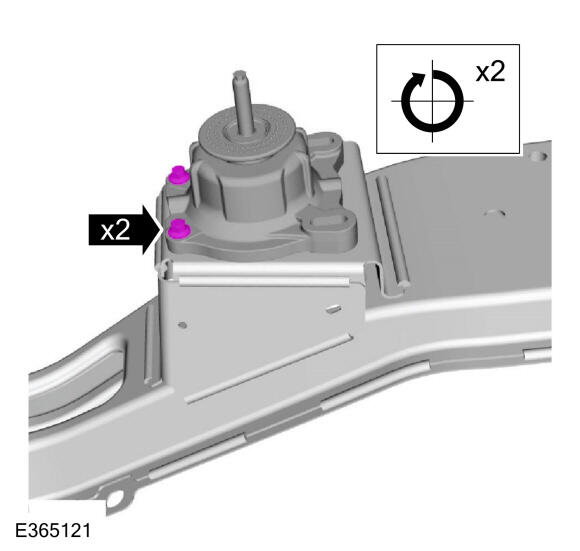

Loosen, but do not remove the LH engine mount bolts.

Courtesy of FORD MOTOR COMPANY

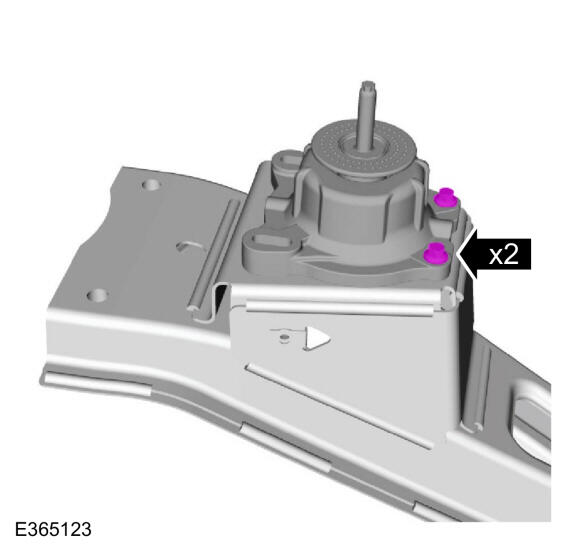

Loosen, but do not remove the RH engine mount bolts.

Courtesy of FORD MOTOR COMPANY

Electric Motor (EL)

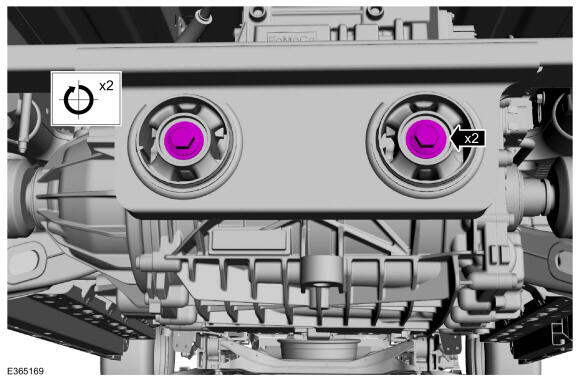

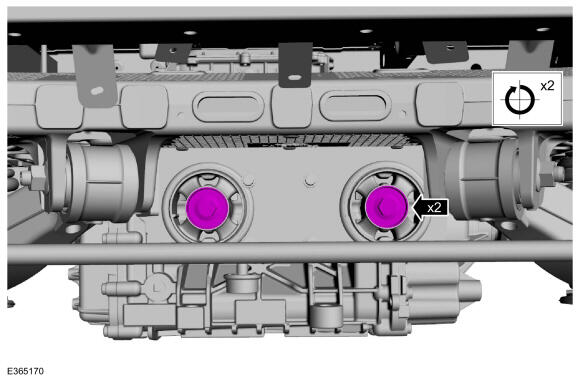

Loosen, but do not remove the rear electric drive assembly fasteners.

Courtesy of FORD MOTOR COMPANY
Loosen, but do not remove the rear electric drive assembly fasteners.

Courtesy of FORD MOTOR COMPANY

All vehicles
NOTE: Do not twist or strain the powertrain/drivetrain mounts or damage to the mounts may occur.

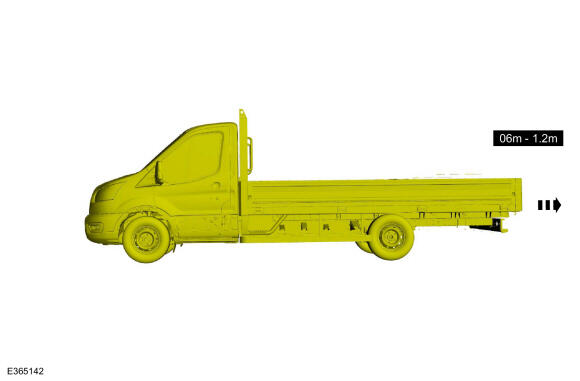

Start the vehicle and move it forward 0.6 m (1.97 ft) - 1.2 m (3.94 ft).

Courtesy of FORD MOTOR COMPANY
NOTE: Do not twist or strain the powertrain/drivetrain mounts or damage to the mounts may occur.

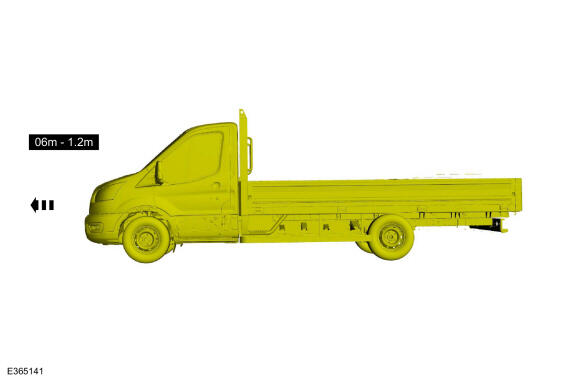

Move the vehicle in reverse the same distance 0.6 m (1.97 ft) - 1.2 m (3.94 ft).

Courtesy of FORD MOTOR COMPANY

3.5L Duratec (202kW/275PS)/3.5L EcoBoost (235kW/320PS)

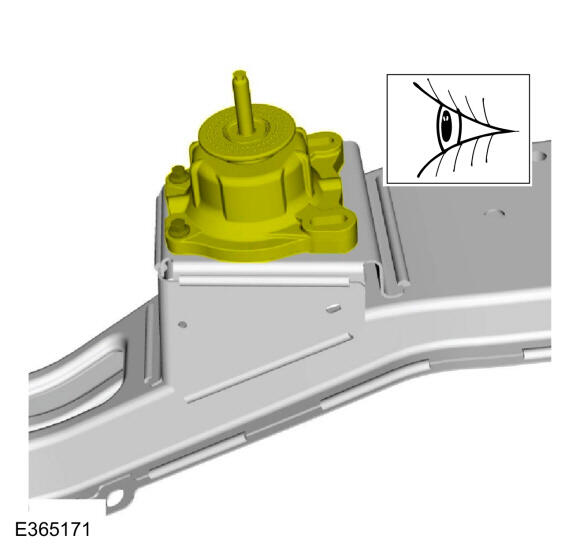

Inspect the LH engine mount that it is not twisted or preloaded.

Courtesy of FORD MOTOR COMPANY

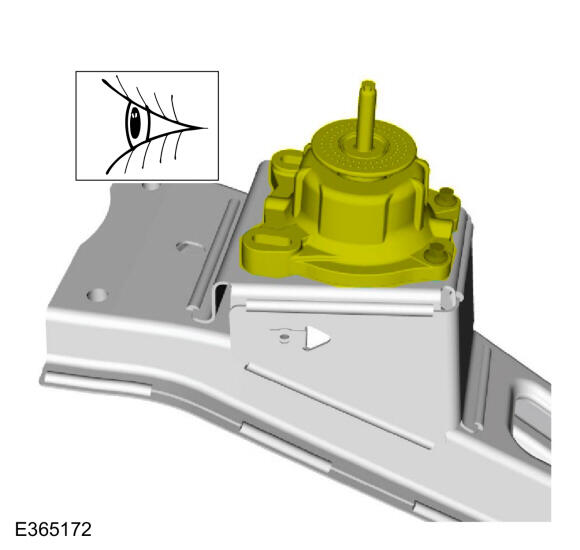

Inspect theRH engine mount that it is not twisted or preloaded.

Courtesy of FORD MOTOR COMPANY
Tighten the LH engine mount bolts.
Torque: 30 Nm

Courtesy of FORD MOTOR COMPANY

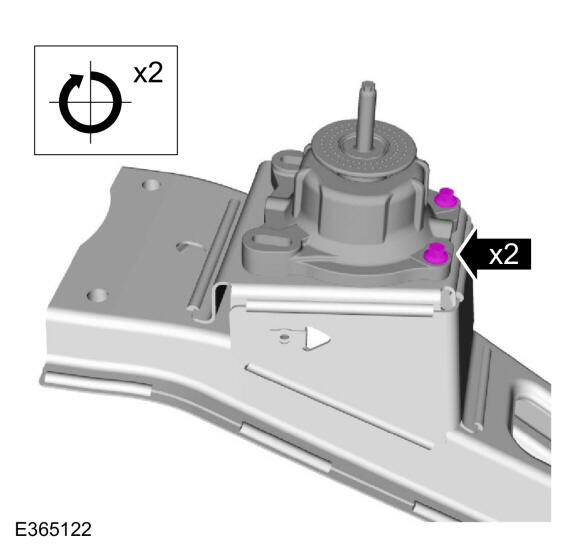

Tighten theRH engine mount bolts.
Torque: 30 Nm

Courtesy of FORD MOTOR COMPANY
Install the engine crossmember.Refer to: Engine Crossmember
Electric Motor (EL)

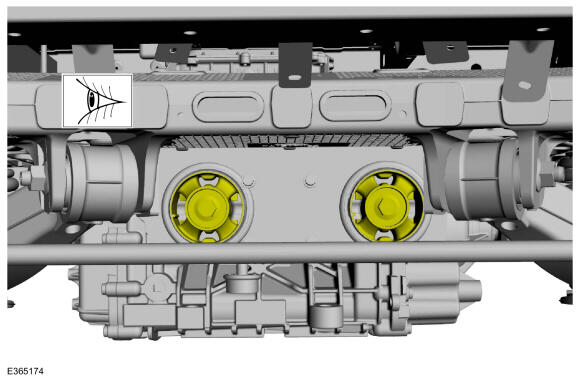

Inspect the rear electric drive assembly fasteners for bolt interference and verify the mounts are not twisted or preloaded.

Courtesy of FORD MOTOR COMPANY

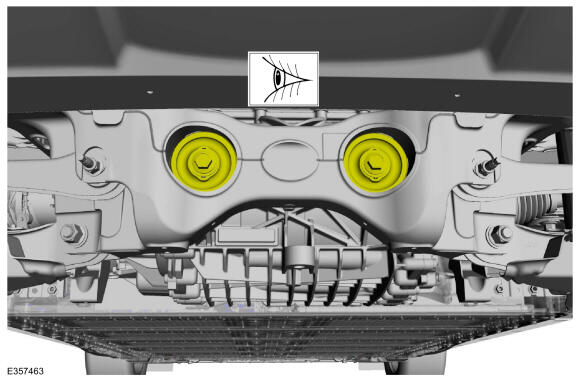

Inspect the rear electric drive assembly fasteners for bolt interference and verify the mounts are not twisted or preloaded.

Courtesy of FORD MOTOR COMPANY

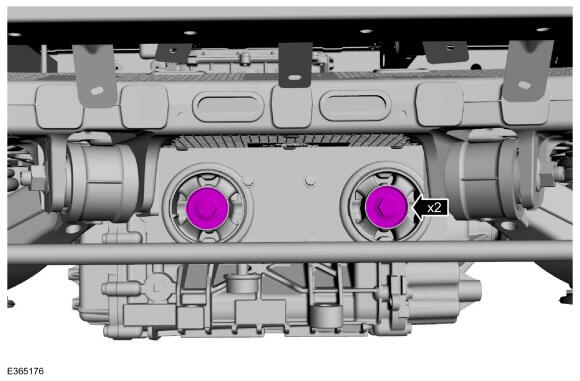

Tighten the rear electric drive assembly fasteners.
Torque: 250 Nm

Courtesy of FORD MOTOR COMPANY

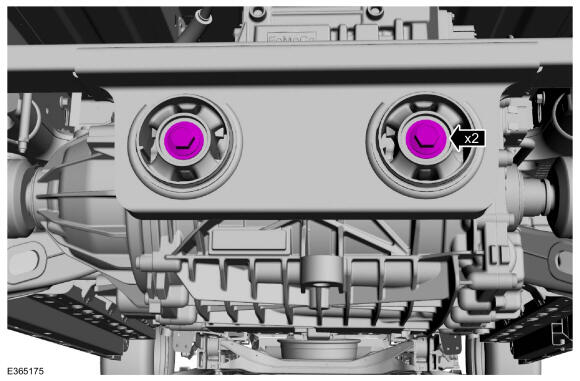

Tighten the rear electric drive assembly fasteners.
Torque: 250 Nm

Courtesy of FORD MOTOR COMPANY

All vehicles
Test the system for normal operation.
