Powertrain Drivetrain Mount Neutralizing

WARNING: This page is about a different car, the 2024 Ford Maverick. However, it is still accessible from the selected car via links, so may be relevant.

For information on Ford Color Coded Illustrations refer to OEM COLOR CODING

Powertrain/Drivetrain Mount Neutralizing

Adjustment

All vehicles

  1. With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting .
  2. Remove the fasteners and the undershield.

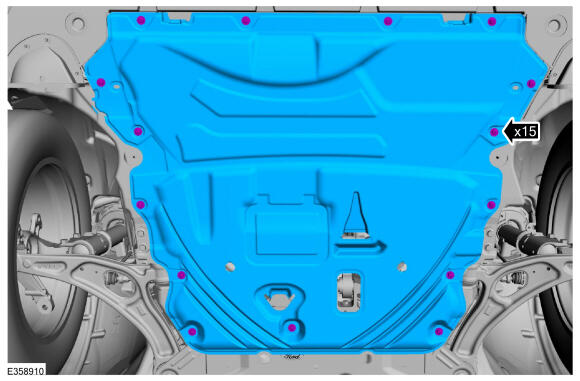

    GFD843009Courtesy of FORD MOTOR COMPANY

    2.0L EcoBoost (177kW/240PS) - MI4

  3. Remove the nuts and the bracket.

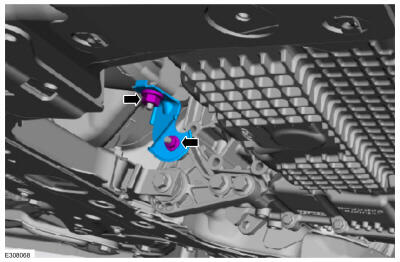

    GFD843010Courtesy of FORD MOTOR COMPANY
  4. Loosen, but do not remove the roll restrictor fasteners. Verify that the roll restrictor is loose.

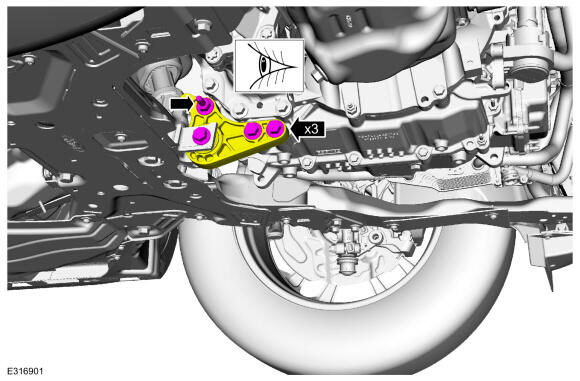

    GFD843011Courtesy of FORD MOTOR COMPANY
    • Detach the coolant hose retainer.

    • Remove the bolts and the degas bottle support bracket.

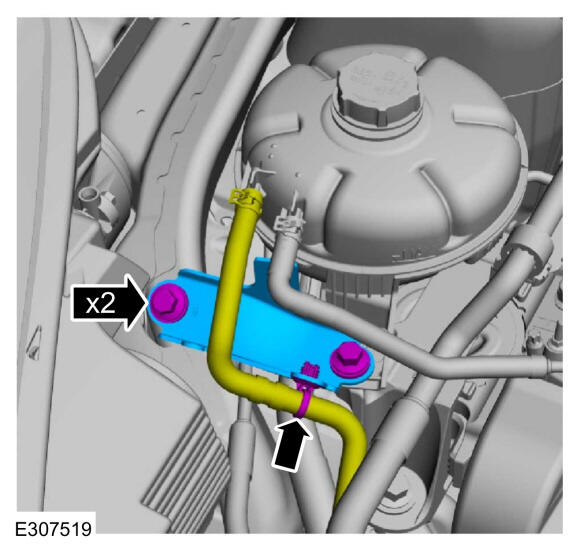

    GFD843012Courtesy of FORD MOTOR COMPANY
  6. Release the tabs and position the degas bottle aside.

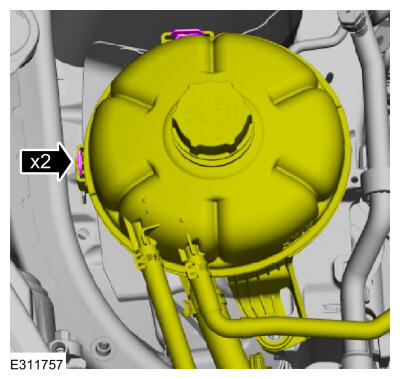

    GFD843013Courtesy of FORD MOTOR COMPANY
  7. Loosen, but do not remove the engine mount bolts.

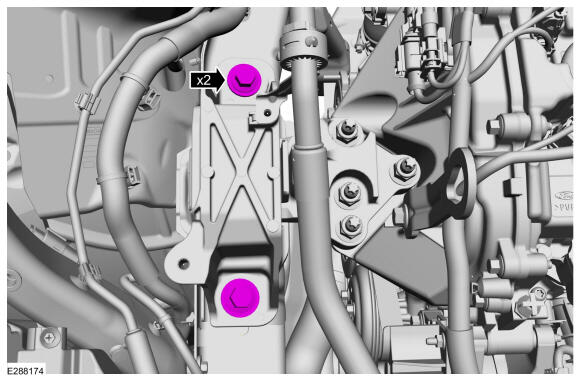

    GFD843014Courtesy of FORD MOTOR COMPANY
  8. Remove the battery tray. Refer to: Battery Tray .
  9. Loosen, but do not remove the transmission mount bolts.

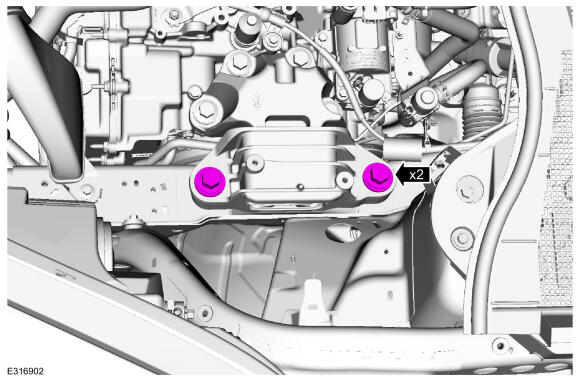

    GFD843015Courtesy of FORD MOTOR COMPANY
  10. Install the battery tray. Refer to: Battery Tray .

    2.5L Duratec - Hybrid (121kW/164PS) (BG)

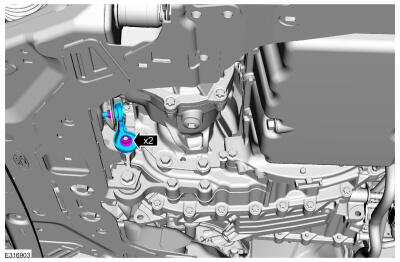

  11. Remove the nuts and the bracket.
    GFD843016Courtesy of FORD MOTOR COMPANY
  12. Loosen, but do not remove the roll restrictor fasteners. Verify that the roll restrictor is loose.

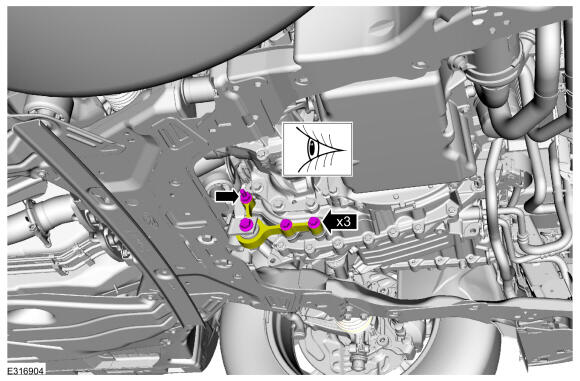

    GFD843017Courtesy of FORD MOTOR COMPANY
  13. Disable the vehicle high-voltage electrical system. Refer to: High Voltage System De-energizing - Hybrid Electric Vehicle (HEV) .
  14. Remove the degas bottle. Refer to: Degas Bottle .

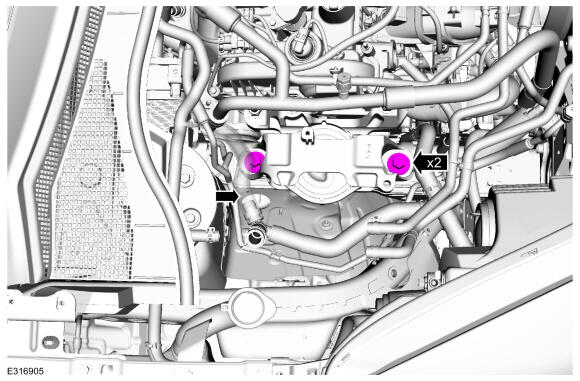

  15. Loosen, but do not remove the engine mount bolts.
    GFD843018Courtesy of FORD MOTOR COMPANY
  16. NOTE: Be prepared to catch a minimal amount of escaping coolant fluid.

    Disconnect the coolant hoses.

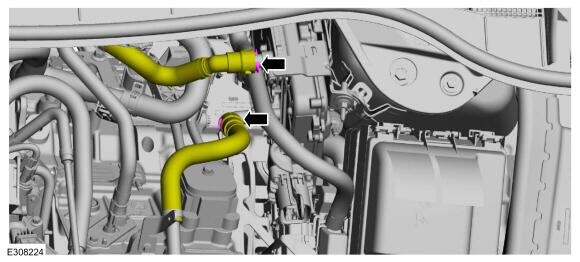

    GFD843019Courtesy of FORD MOTOR COMPANY
  17. Disconnect the electrical connector and wiring harness retainers.

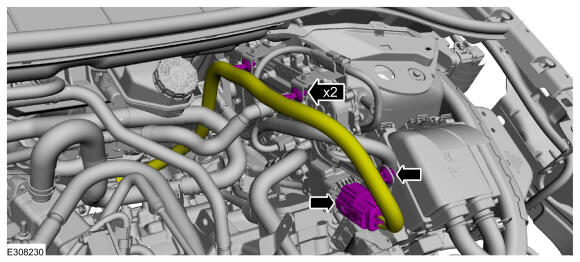

    GFD843020Courtesy of FORD MOTOR COMPANY
  18. Disconnect the electrical connectors and wiring harness retainers.

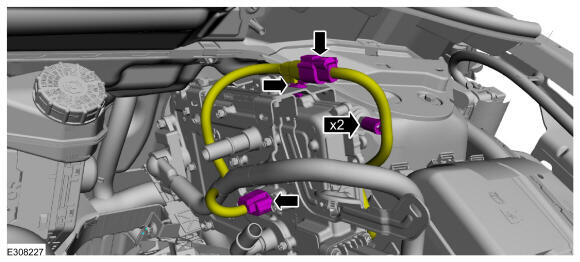

    GFD843021Courtesy of FORD MOTOR COMPANY
  19. Disconnect the electrical connector.

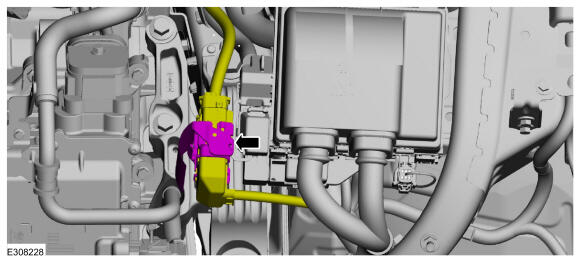

    GFD843022Courtesy of FORD MOTOR COMPANY
  20. Remove wiring harness nut and disconnect the wiring harness retainers.

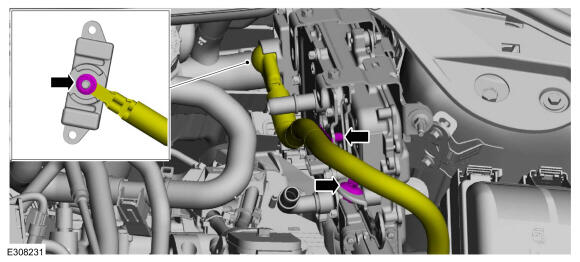

    GFD843023Courtesy of FORD MOTOR COMPANY
  21. Remove the bolts and the power converter.

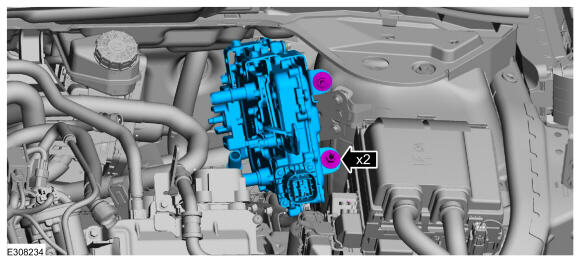

    GFD843024Courtesy of FORD MOTOR COMPANY

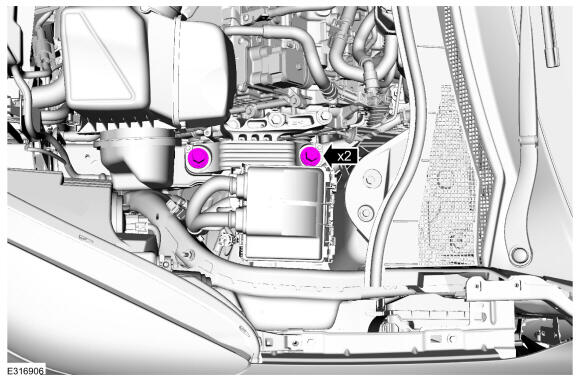

  22. Loosen, but do not remove the transmission mount bolts.
    GFD843025Courtesy of FORD MOTOR COMPANY
  23. Install the power converter and the bolts.

    Torque

    : 18 Nm

    GFD843024Courtesy of FORD MOTOR COMPANY
  24. Connect the converter wiring harness retainers and install the wiring harness nut.

    Torque

    : 6 Nm

    GFD843023Courtesy of FORD MOTOR COMPANY
  25. Connect the electrical connector.
    GFD843022Courtesy of FORD MOTOR COMPANY
  26. Connect the electrical connectors and wiring harness retainers.
    GFD843021Courtesy of FORD MOTOR COMPANY
  27. Connect the electrical connector and wiring harness retainers.
    GFD843020Courtesy of FORD MOTOR COMPANY
  28. Connect the coolant hoses.
    GFD843019Courtesy of FORD MOTOR COMPANY
  29. Enable the vehicle high-voltage electrical system. Refer to: High Voltage System De-energizing - Hybrid Electric Vehicle (HEV) .

    2.0L EcoBoost (177kW/240PS) - MI4/2.5L Duratec - Hybrid (121kW/164PS) (BG)

  30. NOTE: Do not twist or strain the powertrain/drivetrain mounts or damage to the mounts may occur.

    Start the vehicle and move it forward 0.6 m (1.97 ft) - 1.2 m (3.94 ft).

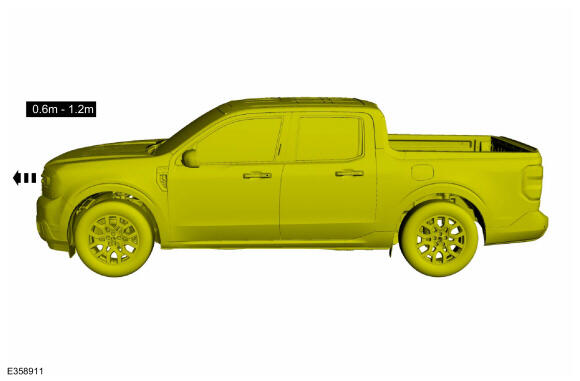

    GFD843026Courtesy of FORD MOTOR COMPANY
  31. NOTE: Do not twist or strain the powertrain/drivetrain mounts or damage to the mounts may occur.

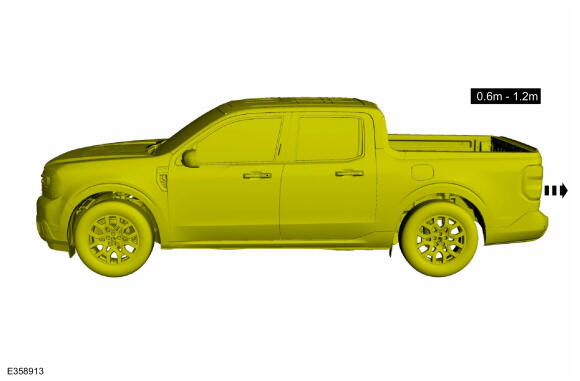

    Move the vehicle in reverse the same distance 0.6 m (1.97 ft) - 1.2 m (3.94 ft).

    GFD843027Courtesy of FORD MOTOR COMPANY

    2.5L Duratec - Hybrid (121kW/164PS) (BG)

  32. Disable the vehicle high-voltage electrical system. Refer to: High Voltage System De-energizing - Hybrid Electric Vehicle (HEV) .
  33. NOTE: Be prepared to catch a minimal amount of escaping coolant fluid.

    Disconnect the coolant hoses.

    GFD843019Courtesy of FORD MOTOR COMPANY
  34. Disconnect the electrical connector and wiring harness retainers.
    GFD843020Courtesy of FORD MOTOR COMPANY
  35. Disconnect the electrical connectors and wiring harness retainers.
    GFD843021Courtesy of FORD MOTOR COMPANY
  36. Disconnect the electrical connector.
    GFD843022Courtesy of FORD MOTOR COMPANY
  37. Remove wiring harness nut and disconnect the wiring harness retainers.
    GFD843023Courtesy of FORD MOTOR COMPANY
  38. Remove the bolts and the power converter.
    GFD843024Courtesy of FORD MOTOR COMPANY

    2.0L EcoBoost (177kW/240PS) - MI4

  39. Remove the battery tray. Refer to: Battery Cables - 2.0L EcoBoost (177kW/240PS) - MI4 .
  40. Tighten the transmission mount bolts.

    Torque

    : Stage 1: 140 Nm Stage 2: 120deg.

    GFD843015Courtesy of FORD MOTOR COMPANY
  41. Tighten the engine mount bolts.

    Torque

    : 175 Nm

    GFD843014Courtesy of FORD MOTOR COMPANY
  42. Position the degas bottle on the tabs.
    GFD843013Courtesy of FORD MOTOR COMPANY
    • Install the degas bottle support bracket and the bolts.

    • Attach the coolant hose retainer.

    GFD843012Courtesy of FORD MOTOR COMPANY
  44. Install the battery tray. Refer to: Battery Cables - 2.0L EcoBoost (177kW/240PS) - MI4 .
    • Tighten the bolts and studbolt.

      Torque

      : 110 Nm

    • Tighten the bolt.

      Torque

      : 175 Nm

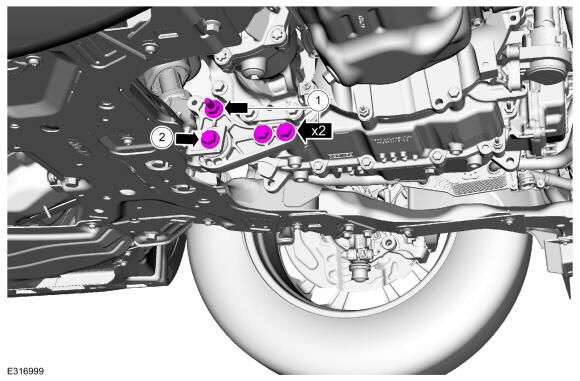

    GFD843028Courtesy of FORD MOTOR COMPANY
  46. Install the bracket and the nuts.

    Torque

    : 47 Nm

    GFD843010Courtesy of FORD MOTOR COMPANY

    2.5L Duratec - Hybrid (121kW/164PS) (BG)

  47. Tighten the engine mount bolts.

    Torque

    : 175 Nm

    GFD843018Courtesy of FORD MOTOR COMPANY
  48. Install the degas bottle. Refer to: Degas Bottle .
  49. Tighten the transmission mount bolts.

    Torque

    : 250 Nm

    GFD843025Courtesy of FORD MOTOR COMPANY
  50. Install the power converter and the bolts.

    Torque

    : 18 Nm

    GFD843024Courtesy of FORD MOTOR COMPANY
  51. Connect the converter wiring harness retainers and install the wiring harness nut.

    Torque

    : 6 Nm

    GFD843023Courtesy of FORD MOTOR COMPANY
  52. Connect the electrical connector.
    GFD843022Courtesy of FORD MOTOR COMPANY
  53. Connect the electrical connectors and wiring harness retainers.
    GFD843021Courtesy of FORD MOTOR COMPANY
  54. Connect the electrical connector and wiring harness retainers.
    GFD843020Courtesy of FORD MOTOR COMPANY
  55. Connect the coolant hoses.
    GFD843019Courtesy of FORD MOTOR COMPANY
  56. Remove the nuts and the bracket.

    Torque

    : 48 Nm

    GFD843016Courtesy of FORD MOTOR COMPANY

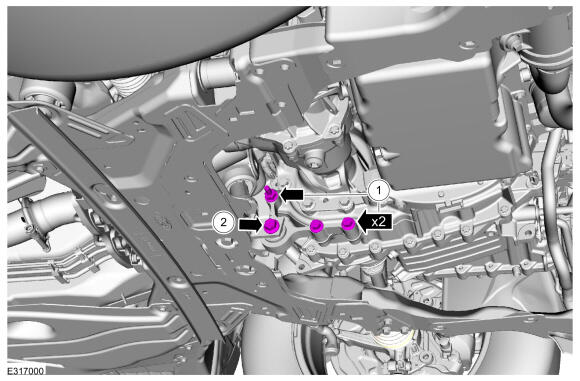

    • Tighten the bolts and studbolt.

      Torque

      : 110 Nm

    • Tighten the bolt.

      Torque

      : 175 Nm

    GFD843029Courtesy of FORD MOTOR COMPANY
  58. Enable the vehicle high-voltage electrical system. Refer to: High Voltage System De-energizing - Hybrid Electric Vehicle (HEV) .
  59. Fill the Electric Powertrain Cooling System. Refer to: Engine Cooling System Draining, Vacuum Filling and Bleeding .

    All vehicles

  60. Install the undershield and fasteners.
    GFD843009Courtesy of FORD MOTOR COMPANY
  61. Test the system for normal operation.
