Radio Transceiver Module (RTM): Removal
WARNING: This page is about a different car, the 2024 Ford Maverick. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.
All vehicles
-
NOTE: If installing a new module, it is necessary to upload the module configuration information to the diagnostic scan tool prior to removing the module. This information must be downloaded into the new module after installation.
Carry out the PMI procedure for the RTM. Refer to: Module Configuration - System Operation and Component Description .
Vehicles without a sunroof
- Remove the headliner. Refer to: Headliner .

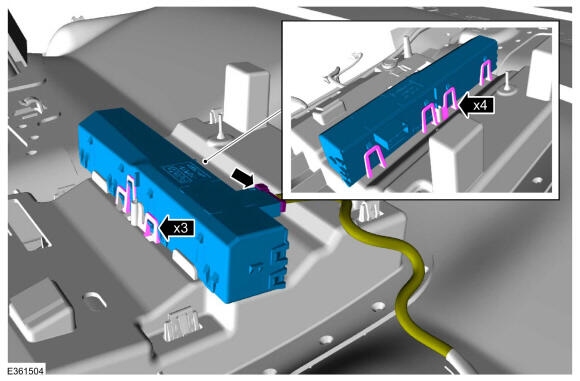

- Disconnect the electrical connector, then release the RTM bracket clips and remove the RTM.
Vehicles with a sunroof
- Lower the headliner. Refer to: Headliner - Lowering .
-
NOTE: Typical application shown.

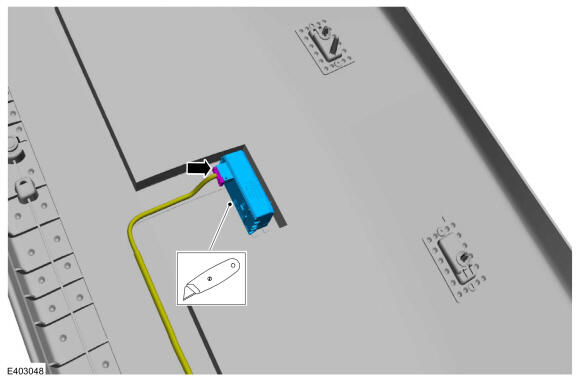

Using a knife, carefully cut the RTM -to-headliner adhesive and remove the RTM.
- Disconnect the electrical connector.
