Body Control Module (BCM): Removal

WARNING: This page is about a different car, the 2024 Ford Bronco Sport. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

If installing a new BCM, connect a battery charger to the battery to make sure it is charged to maintain proper battery voltage. Refer to: Battery Charging .
NOTE: If the BCM (body control module) did not respond to the diagnostic scan tool, As-Built Data may need to be entered as part of the repair. This step is only necessary if the BCM (body control module) is being replaced.

Using a diagnostic scan tool, begin the PMI process for the BCM following the on-screen instructions. Refer to: MODULE CONFIGURATION .

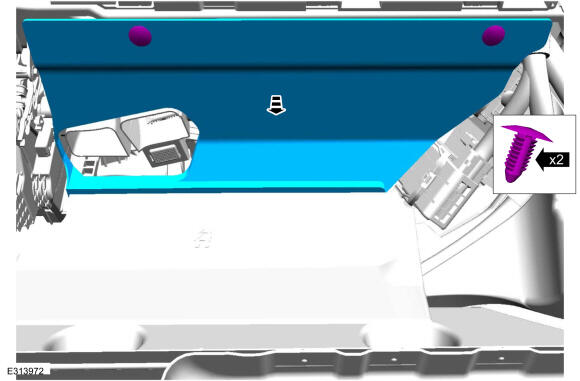

Remove the retainers and the lower insulation panel.

Courtesy of FORD MOTOR COMPANY

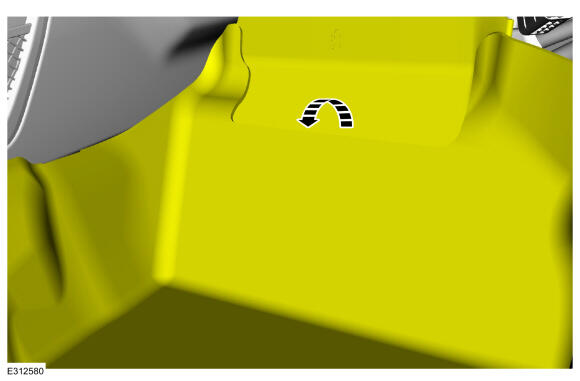

Position the carpet back.

Courtesy of FORD MOTOR COMPANY

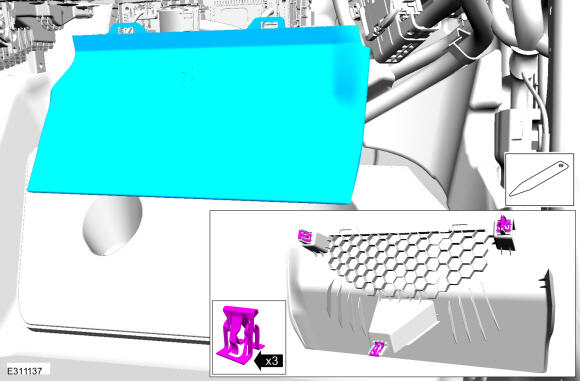

Release the clips and remove the trim panel.Use the General Equipment: Interior Trim Remover

Courtesy of FORD MOTOR COMPANY

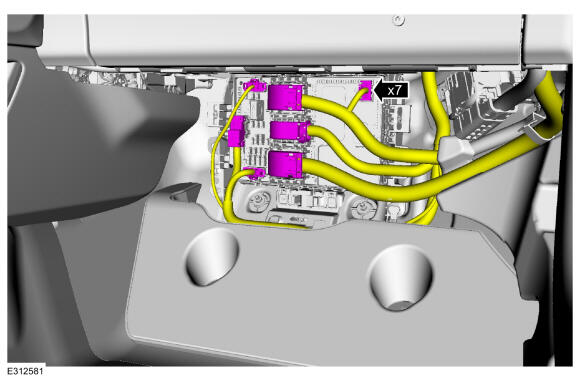

Disconnect the BCM electrical connectors.

Courtesy of FORD MOTOR COMPANY

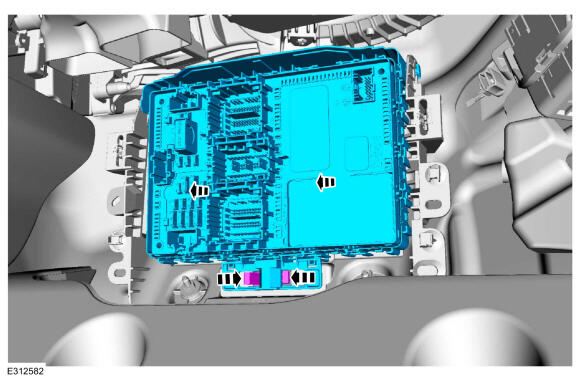

Release the clips and remove the BCM.

Courtesy of FORD MOTOR COMPANY
