Module Communications Network

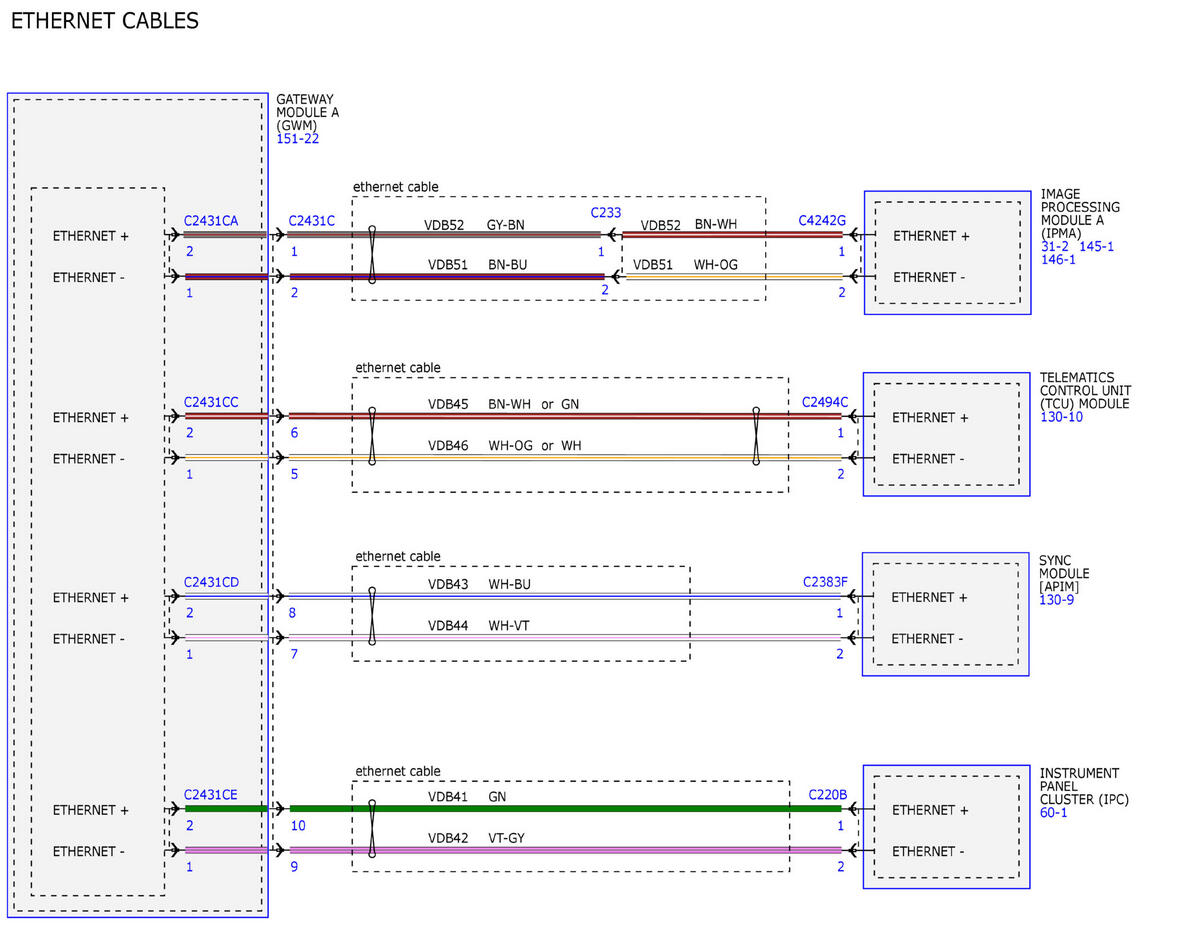

Fig 1: Module Communications Network (1 Of 19)

GFDWR231359

Courtesy of FORD MOTOR COMPANY

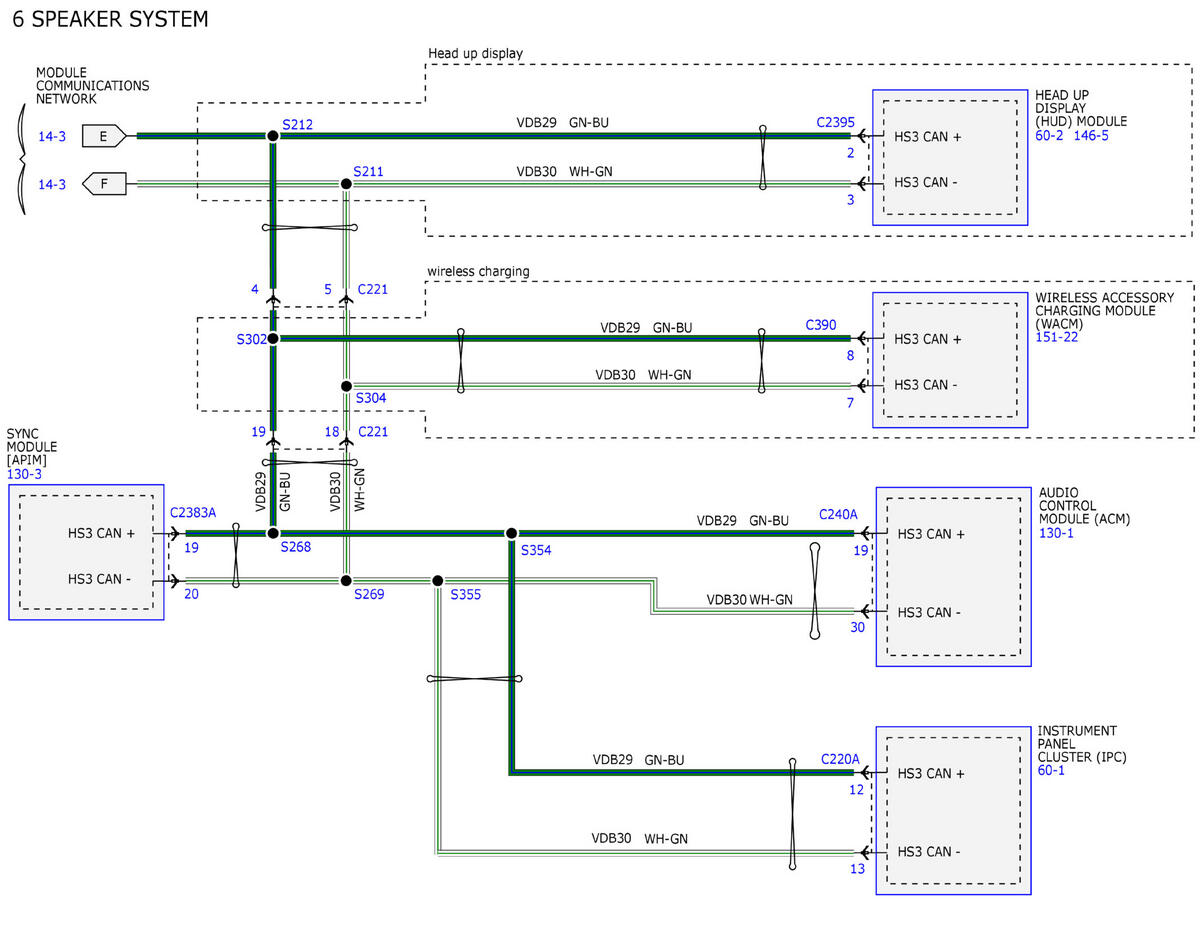

Fig 2: Module Communications Network (2 Of 19)

GFDWR231360

Courtesy of FORD MOTOR COMPANY

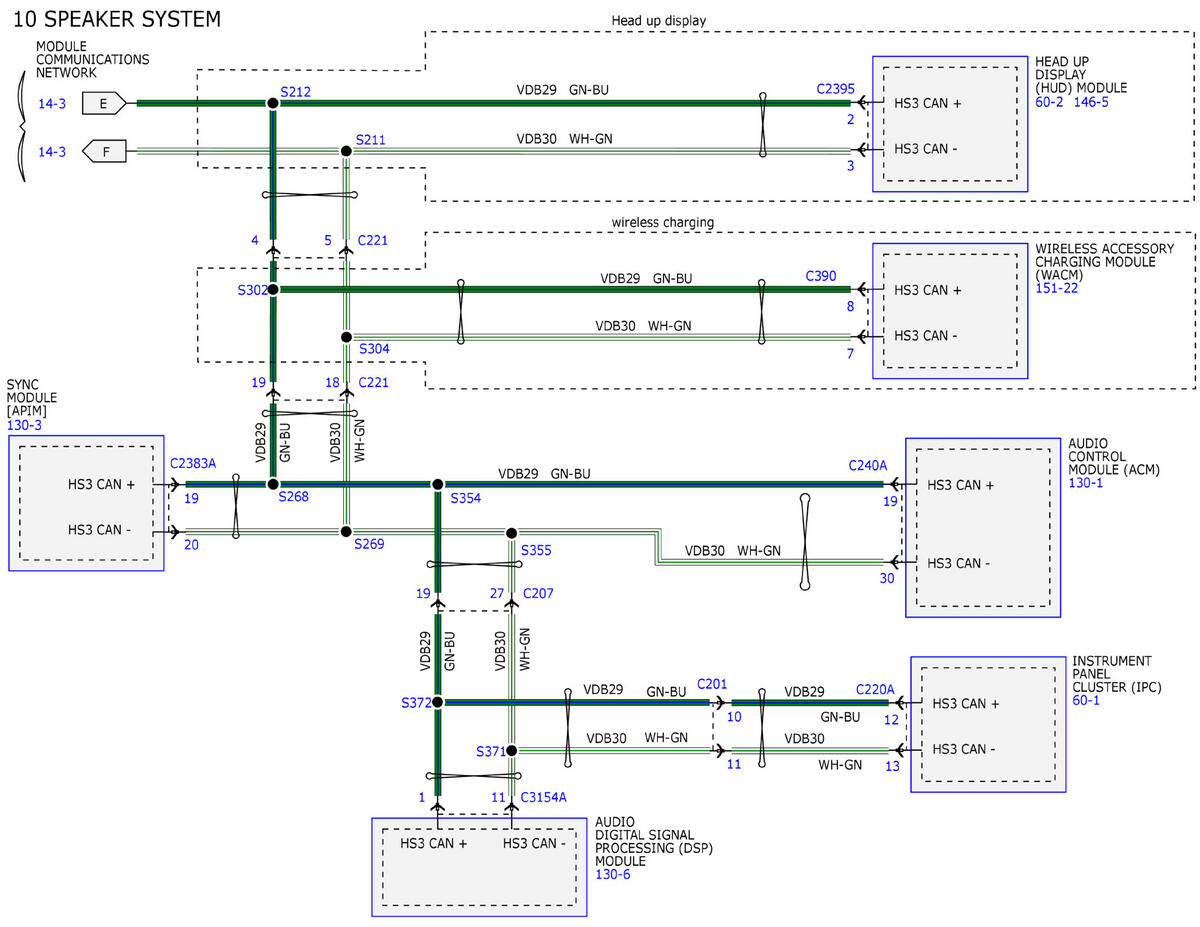

Fig 3: Module Communications Network (3 Of 19)

GFDWR231361

Courtesy of FORD MOTOR COMPANY

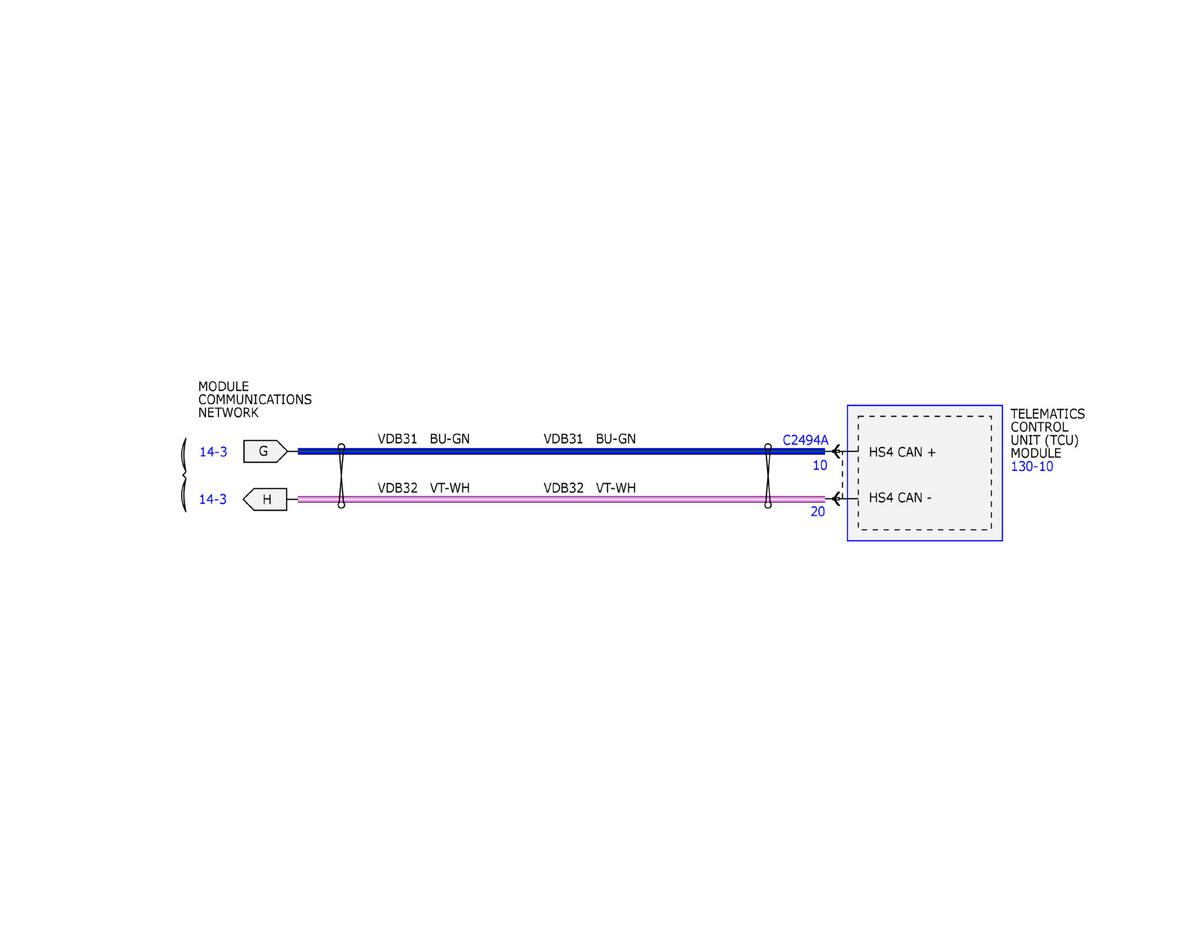

Fig 4: Module Communications Network (4 Of 19)

GFDWR231362

Courtesy of FORD MOTOR COMPANY

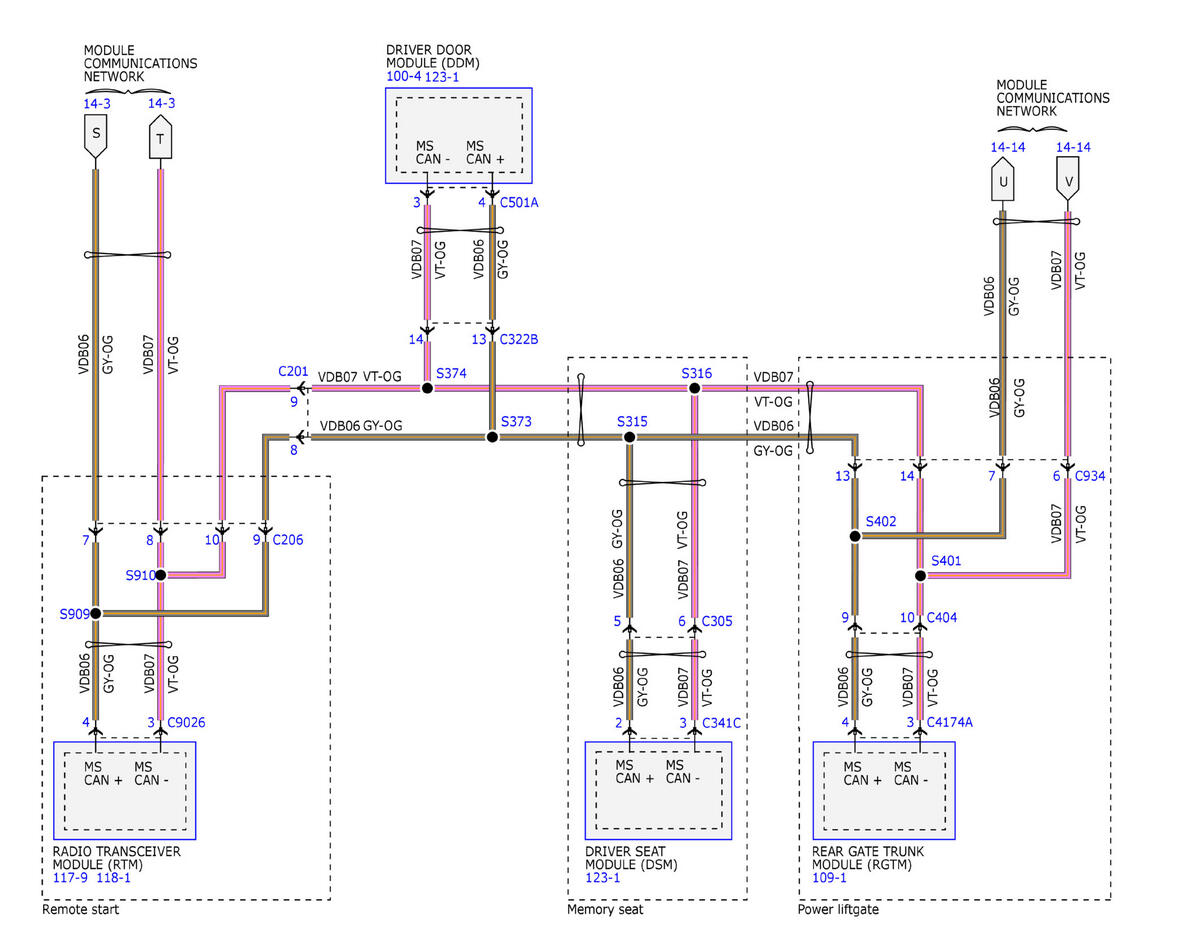

Fig 5: Module Communications Network (5 Of 19)

GFDWR231363

Courtesy of FORD MOTOR COMPANY

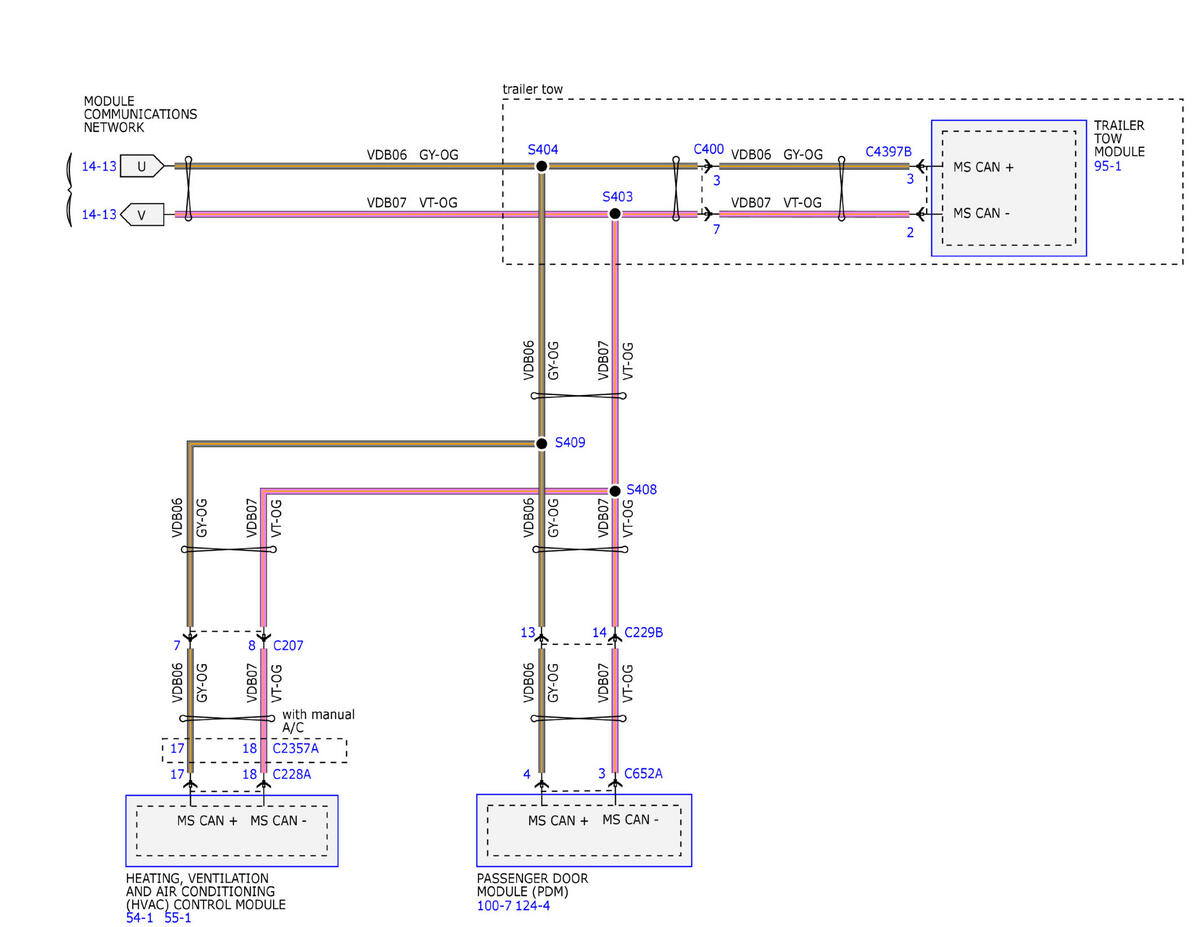

Fig 6: Module Communications Network (6 Of 19)

GFDWR231364

Courtesy of FORD MOTOR COMPANY

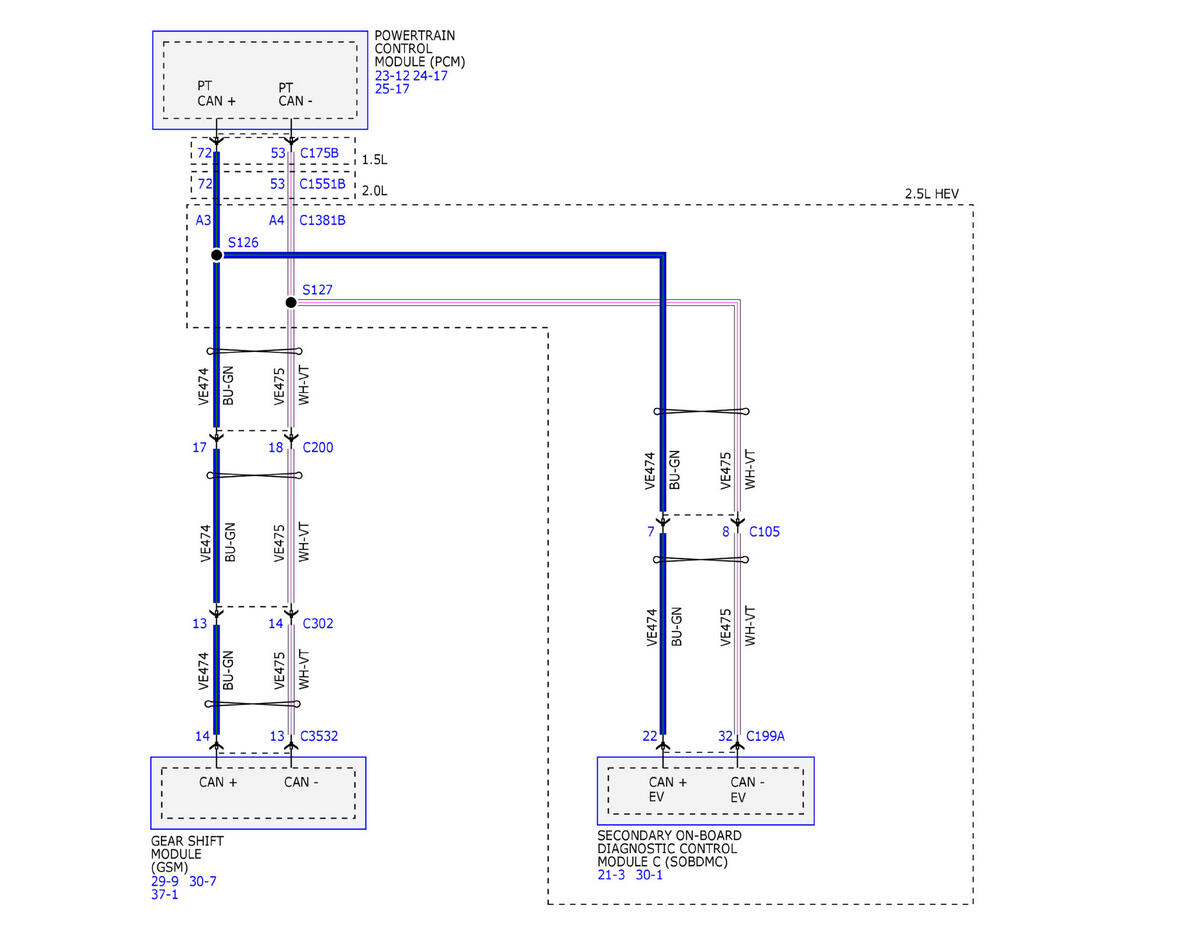

Fig 7: Module Communications Network (7 Of 19)

GFDWR231365

Courtesy of FORD MOTOR COMPANY

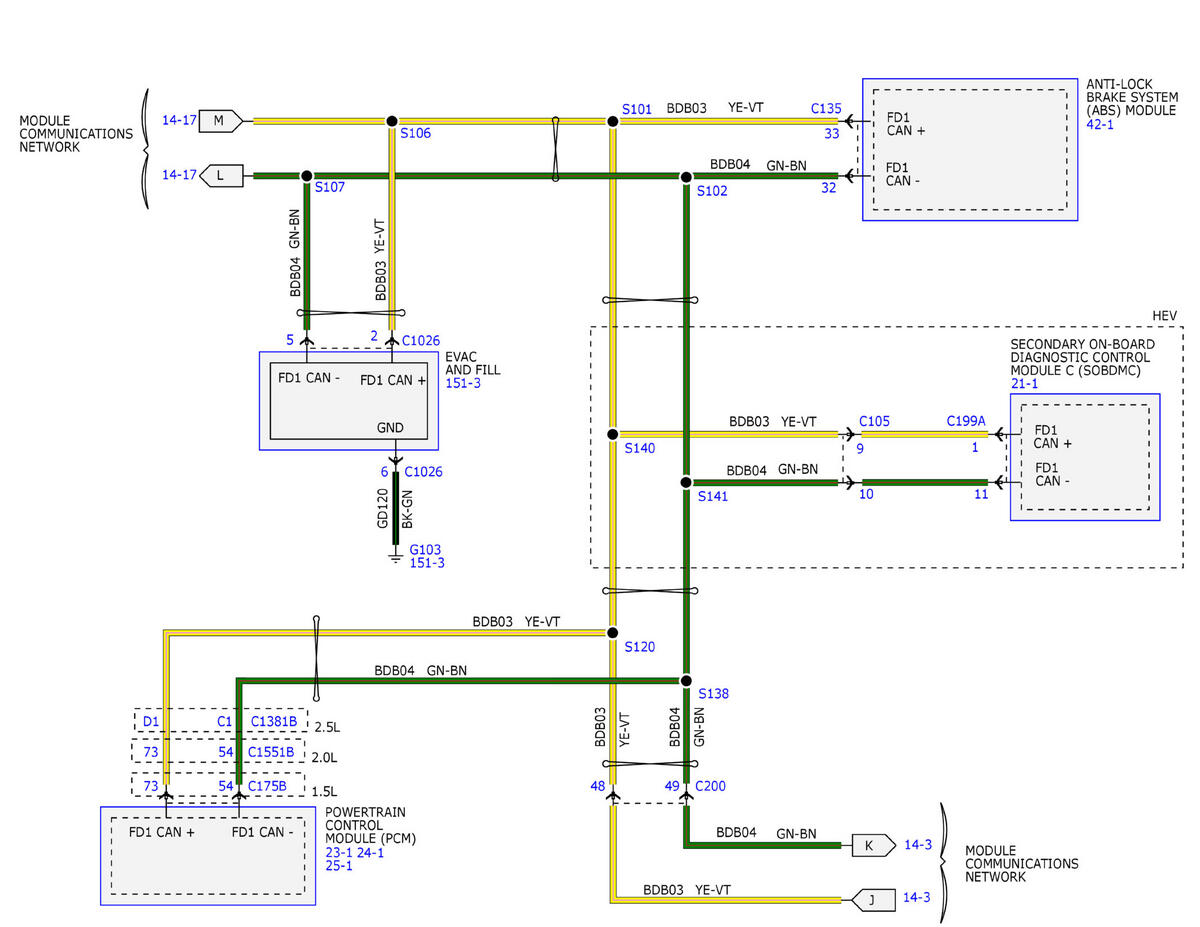

Fig 8: Module Communications Network (8 Of 19)

GFDWR231366

Courtesy of FORD MOTOR COMPANY

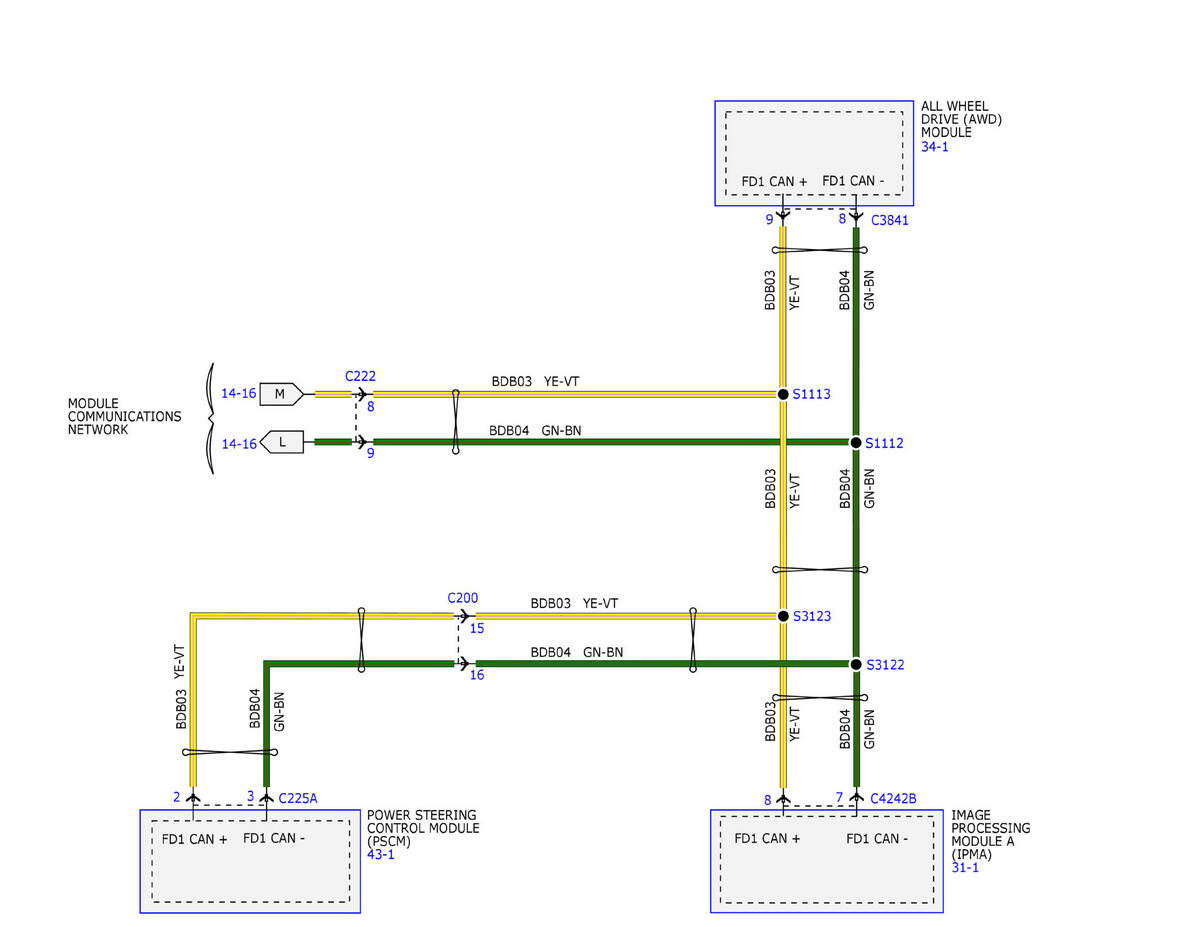

Fig 9: Module Communications Network (9 Of 19)

GFDWR231367

Courtesy of FORD MOTOR COMPANY

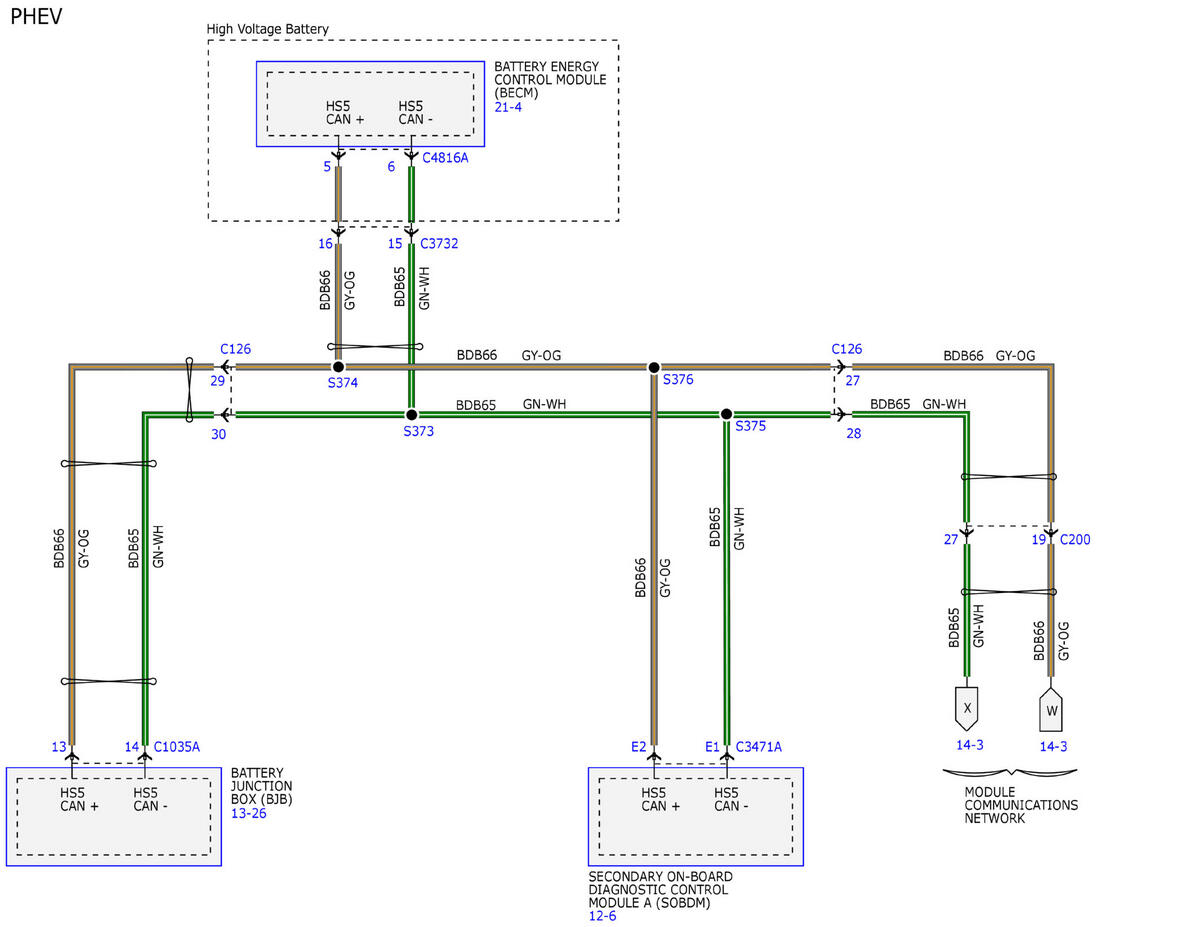

Fig 10: Module Communications Network (10 Of 19)

GFDWR231368

Courtesy of FORD MOTOR COMPANY

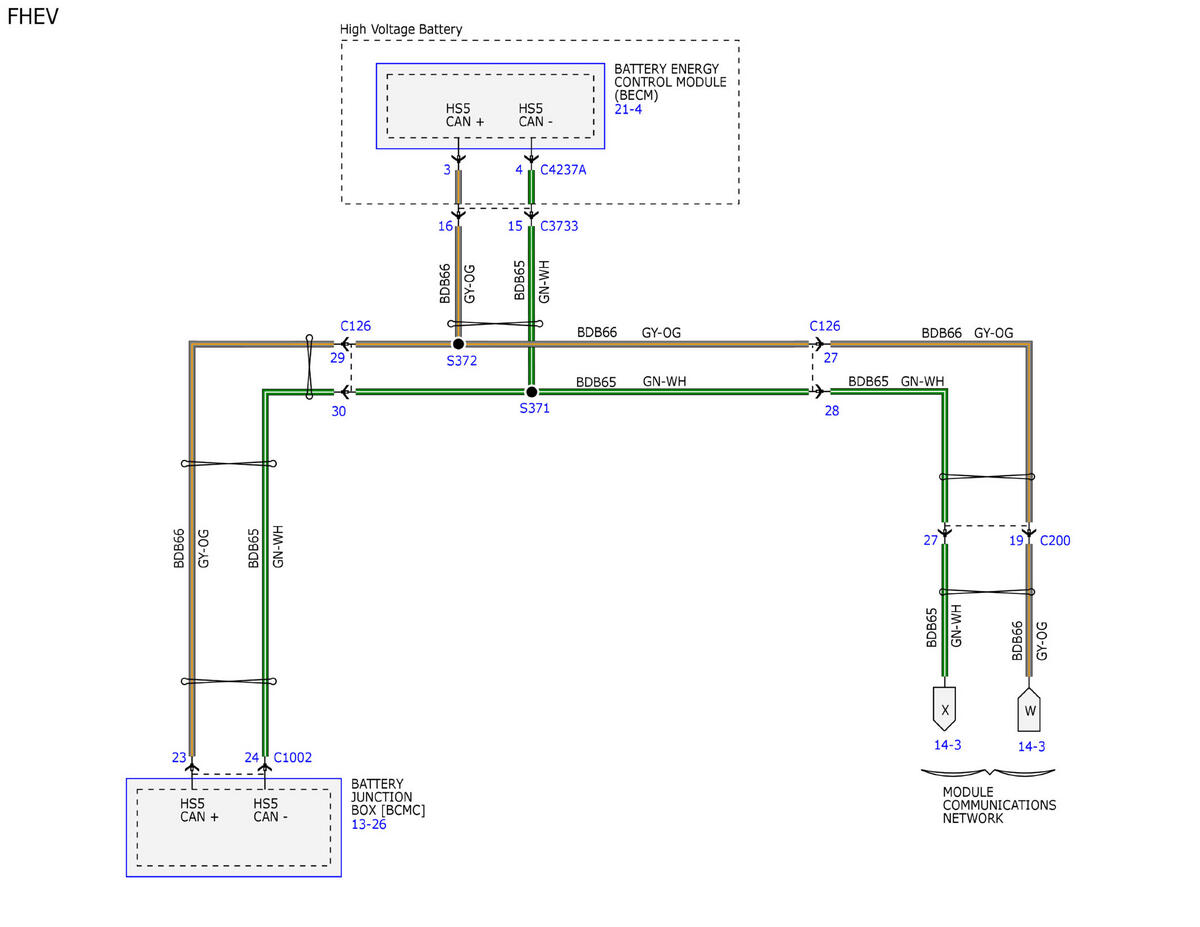

Fig 11: Module Communications Network (11 Of 19)

GFDWR231369

Courtesy of FORD MOTOR COMPANY

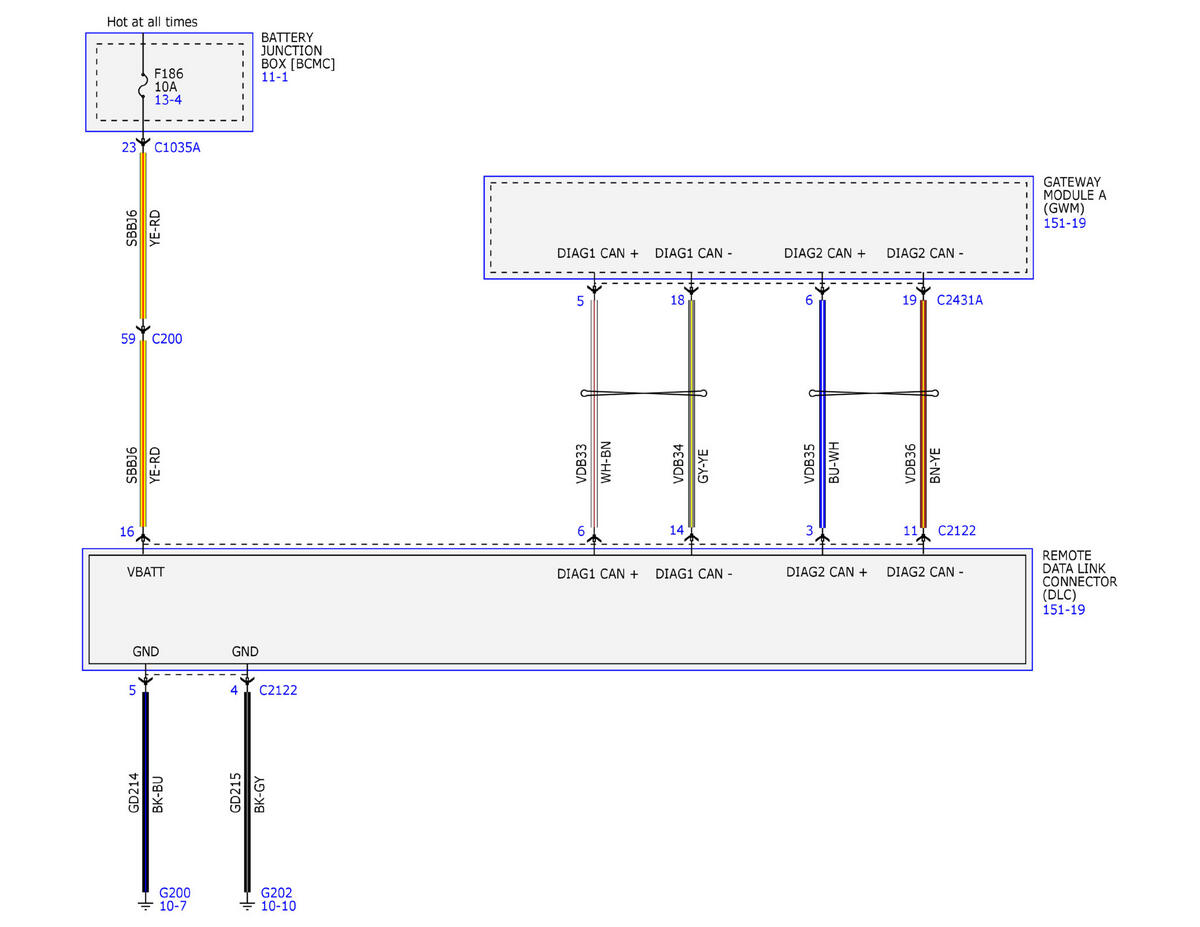

Fig 12: Module Communications Network (12 Of 19)

GFDWR231370

Courtesy of FORD MOTOR COMPANY

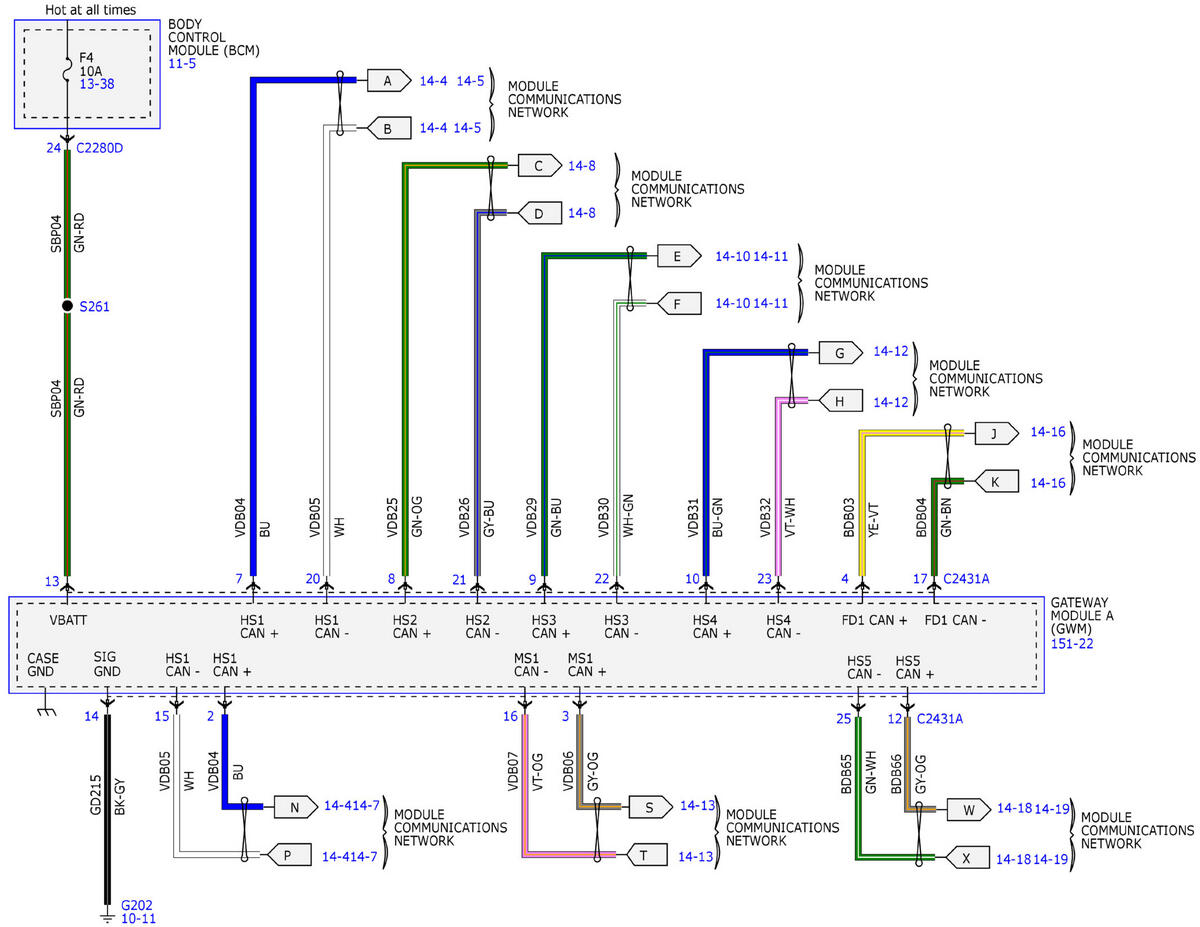

Fig 13: Module Communications Network (13 Of 19)

GFDWR231371

Courtesy of FORD MOTOR COMPANY

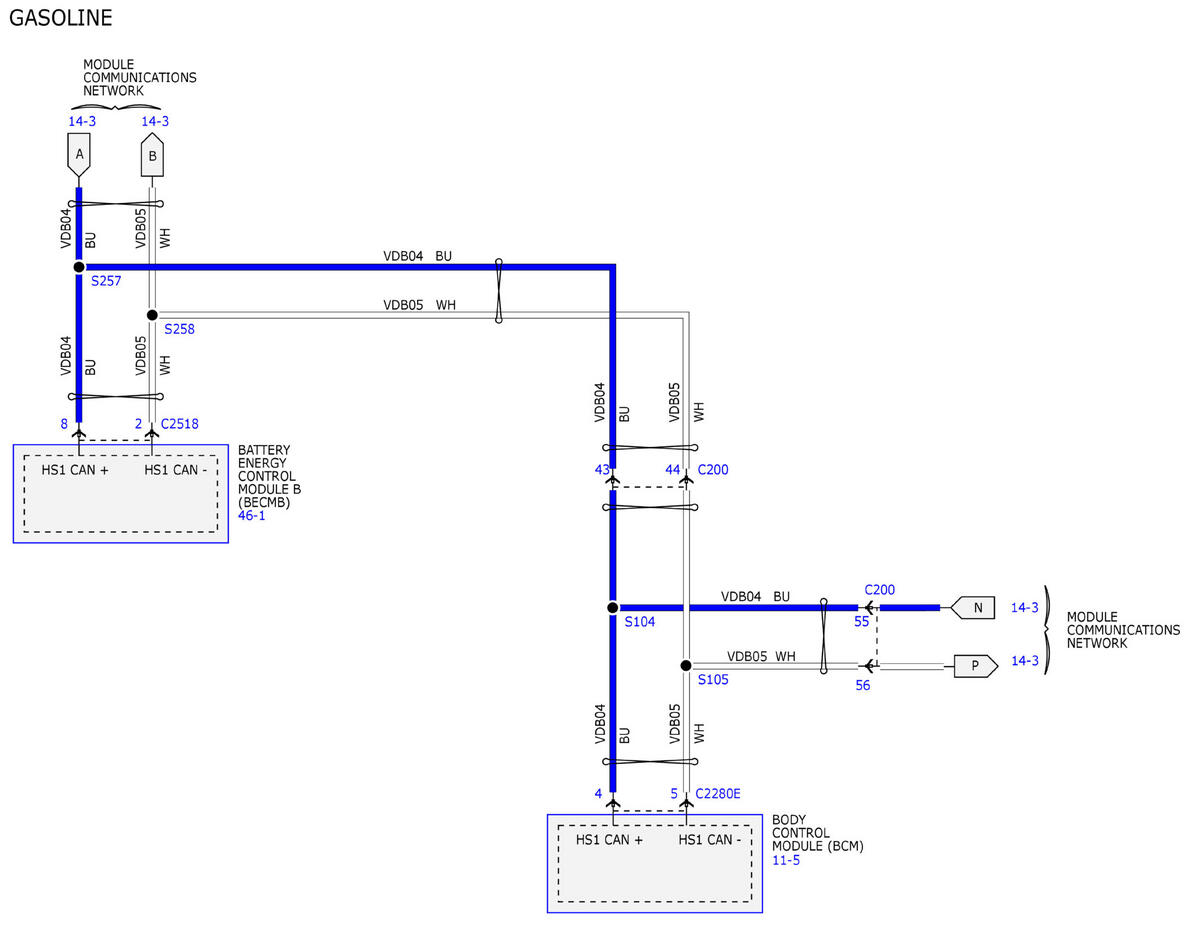

Fig 14: Module Communications Network (14 Of 19)

GFDWR231372

Courtesy of FORD MOTOR COMPANY

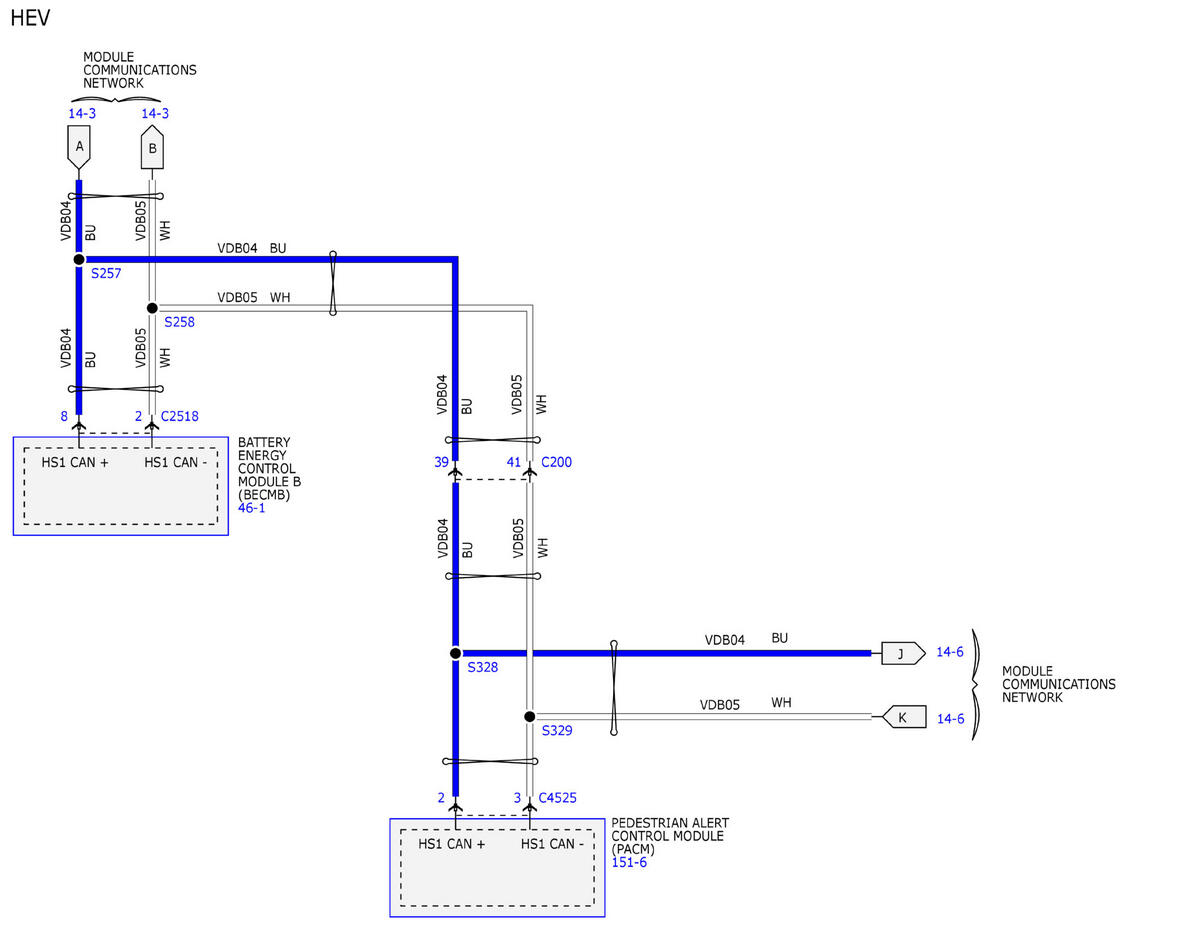

Fig 15: Module Communications Network (15 Of 19)

GFDWR231373

Courtesy of FORD MOTOR COMPANY

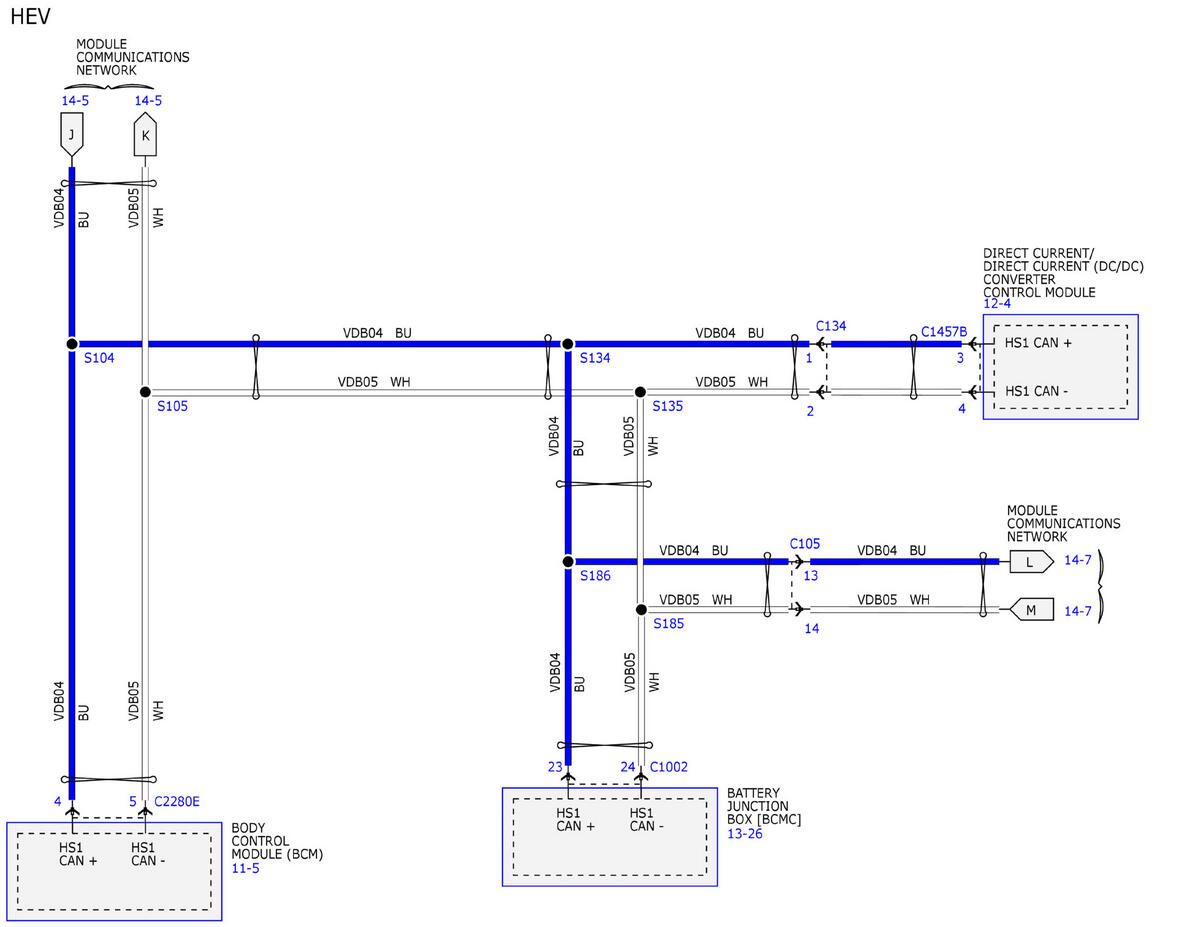

Fig 16: Module Communications Network (16 Of 19)

GFDWR231374

Courtesy of FORD MOTOR COMPANY

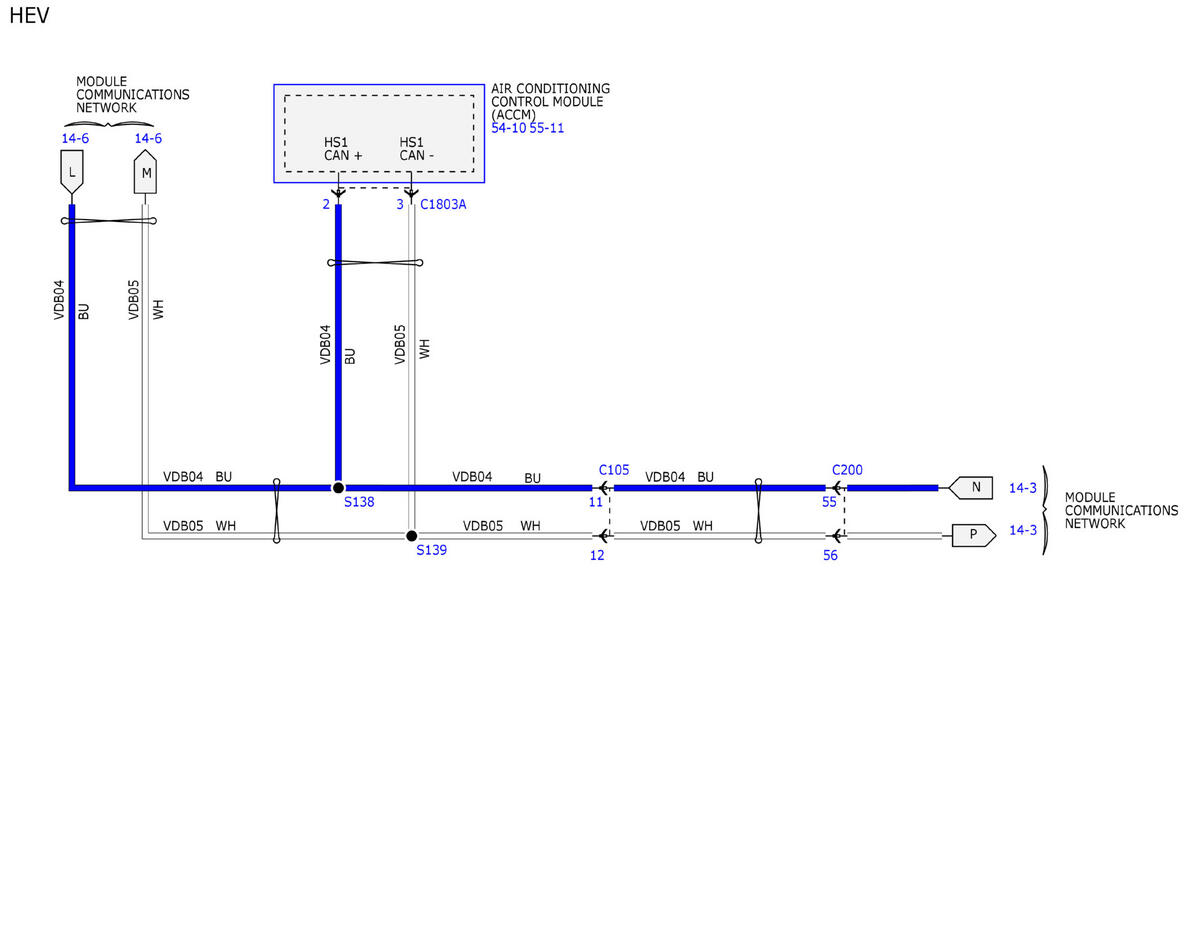

Fig 17: Module Communications Network (17 Of 19)

GFDWR231375

Courtesy of FORD MOTOR COMPANY

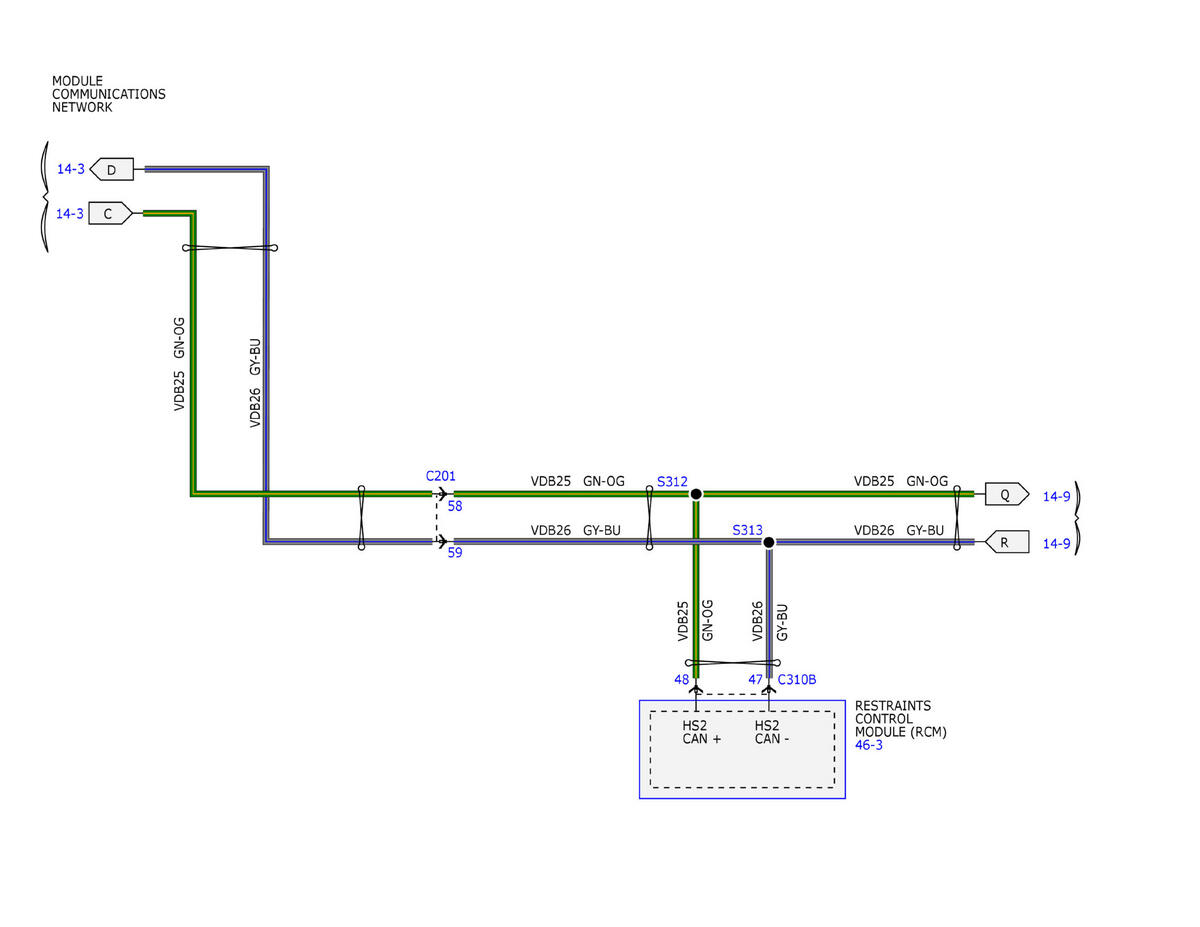

Fig 18: Module Communications Network (18 Of 19)

GFDWR231376

Courtesy of FORD MOTOR COMPANY

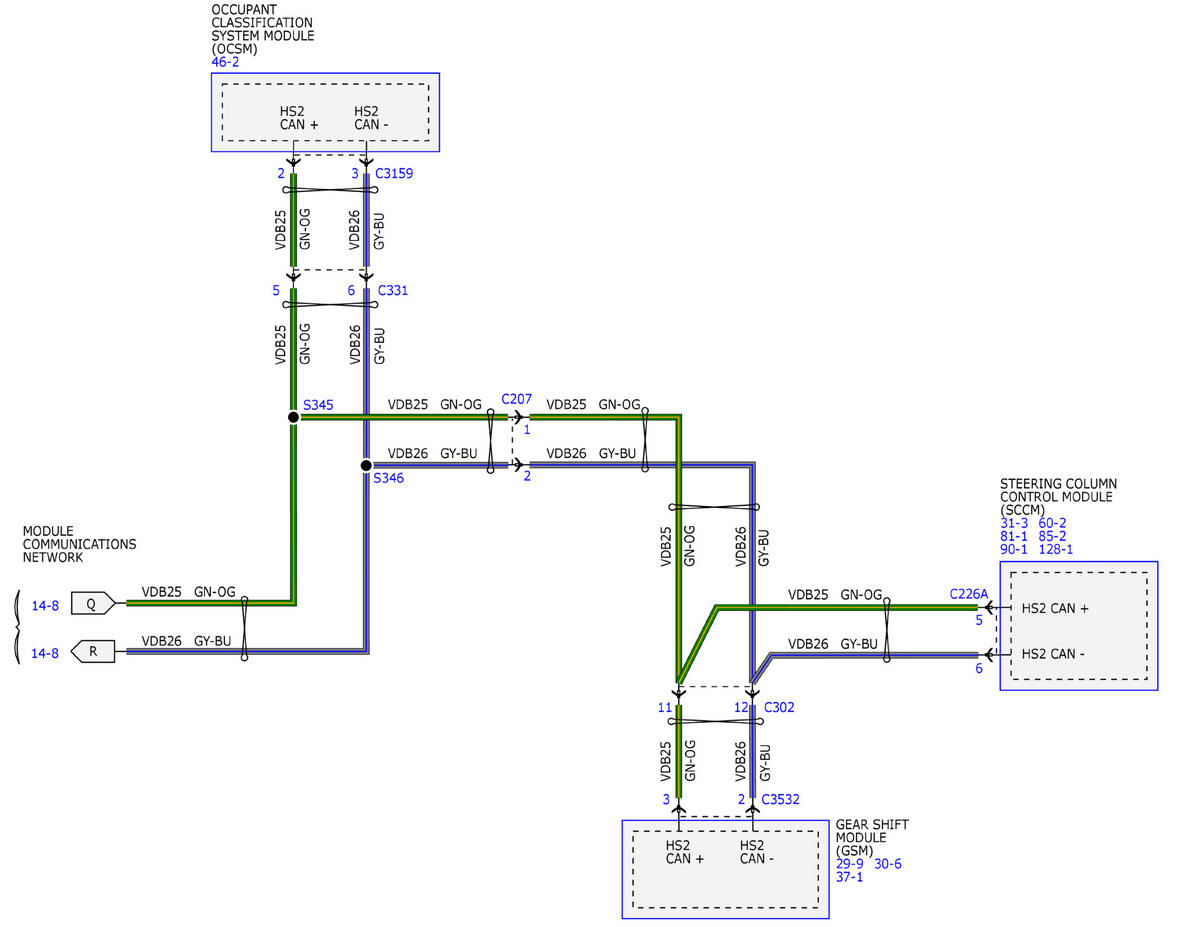

Fig 19: Module Communications Network (19 Of 19)

GFDWR231377

Courtesy of FORD MOTOR COMPANY
