OEM Electrical Wiring Diagram Introduction: Introduction

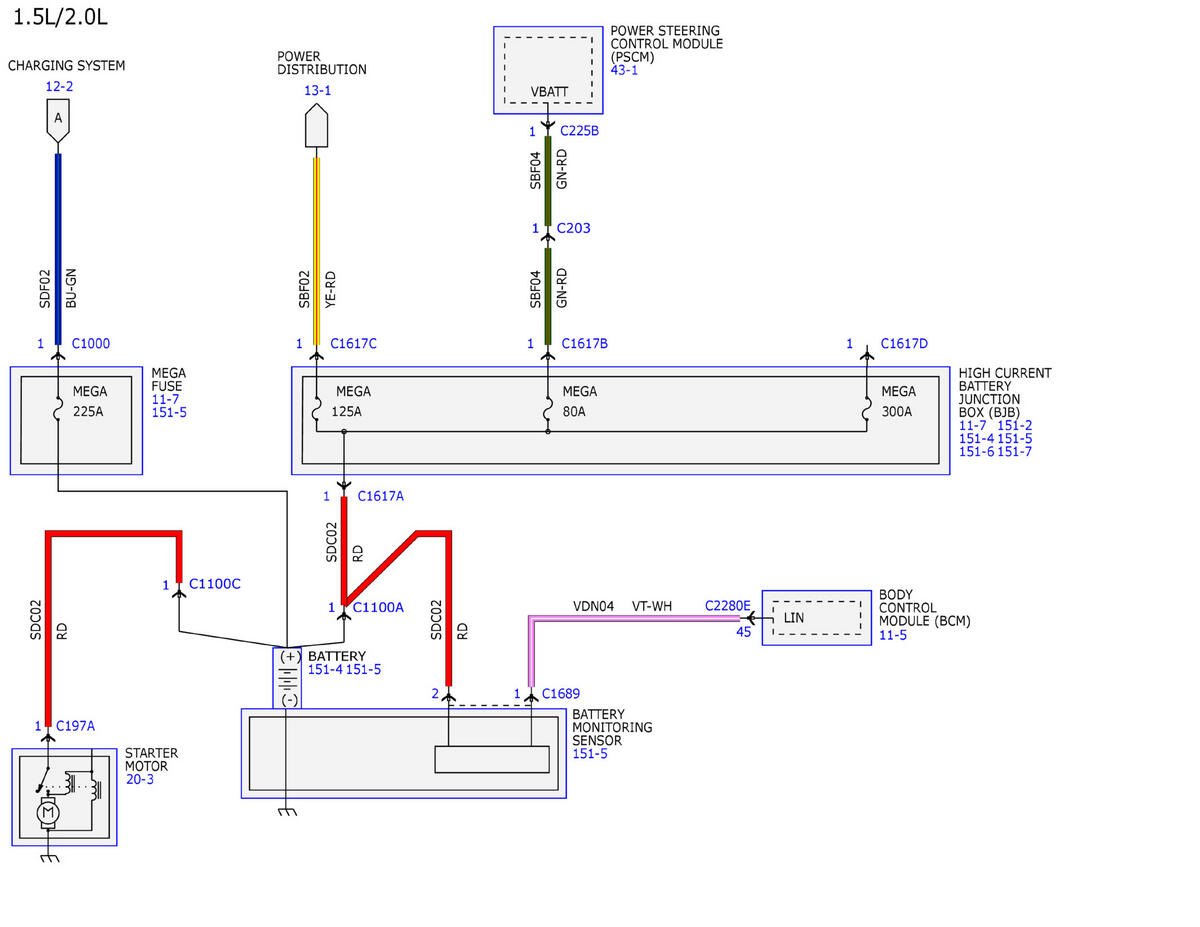

GFDWR231182Courtesy of FORD MOTOR COMPANY

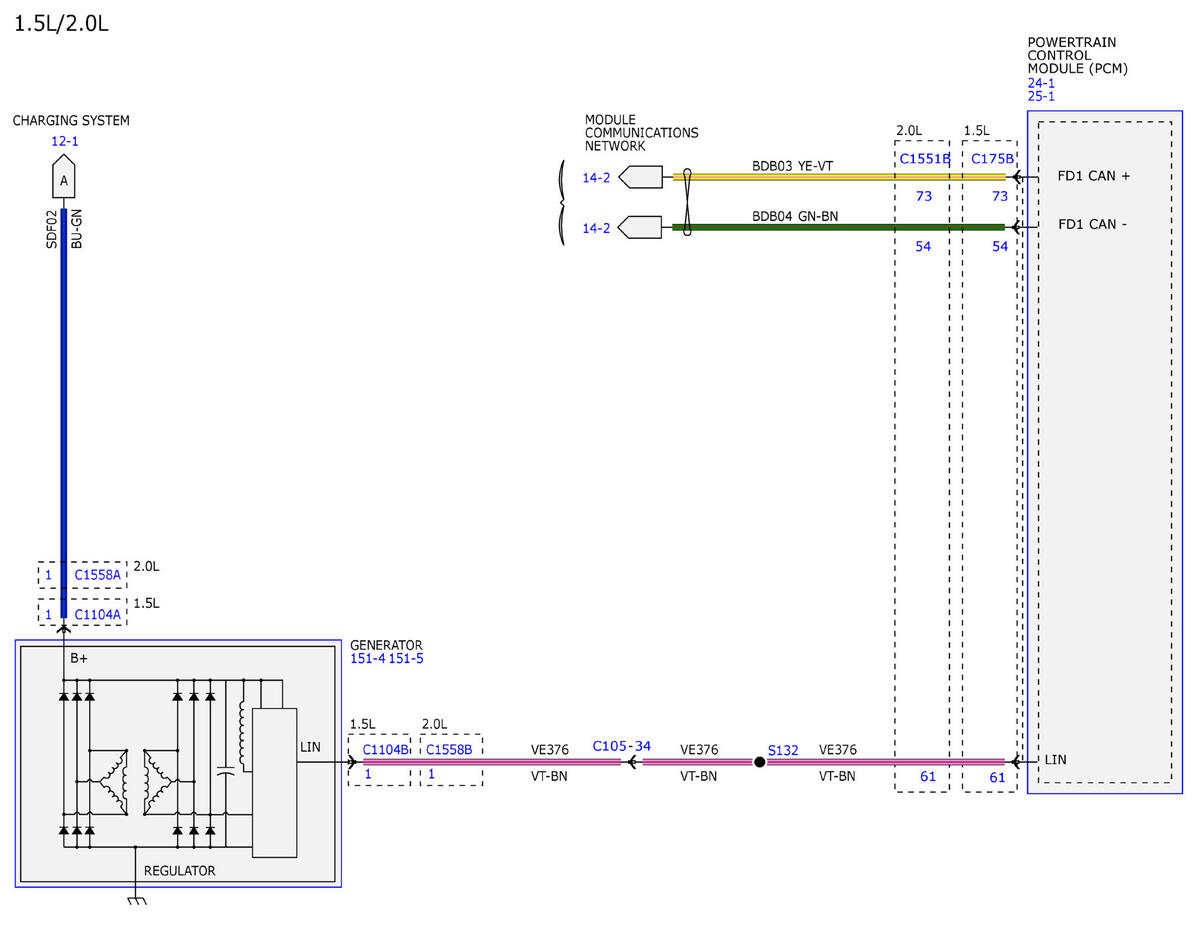

GFDWR231183Courtesy of FORD MOTOR COMPANY

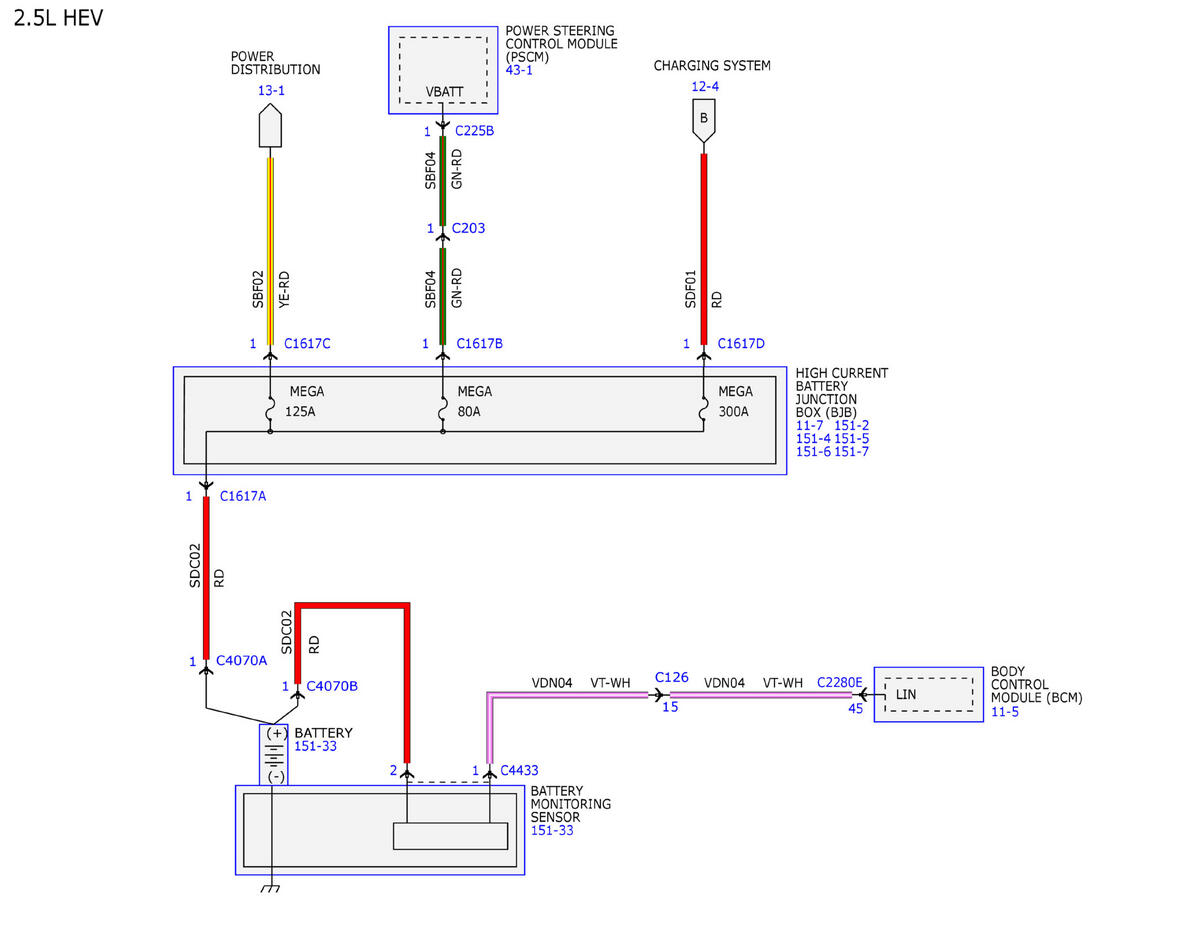

GFDWR231184Courtesy of FORD MOTOR COMPANY

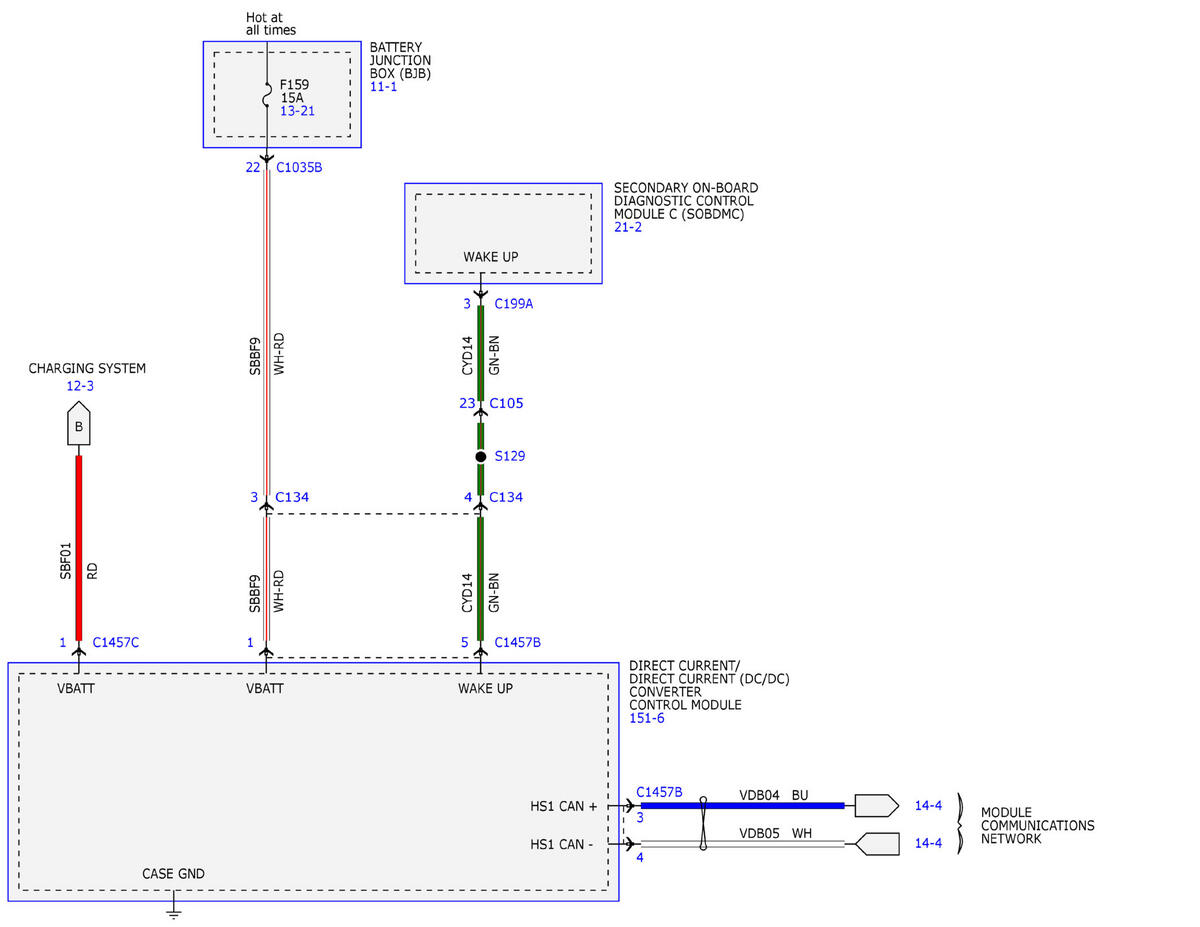

GFDWR231185Courtesy of FORD MOTOR COMPANY

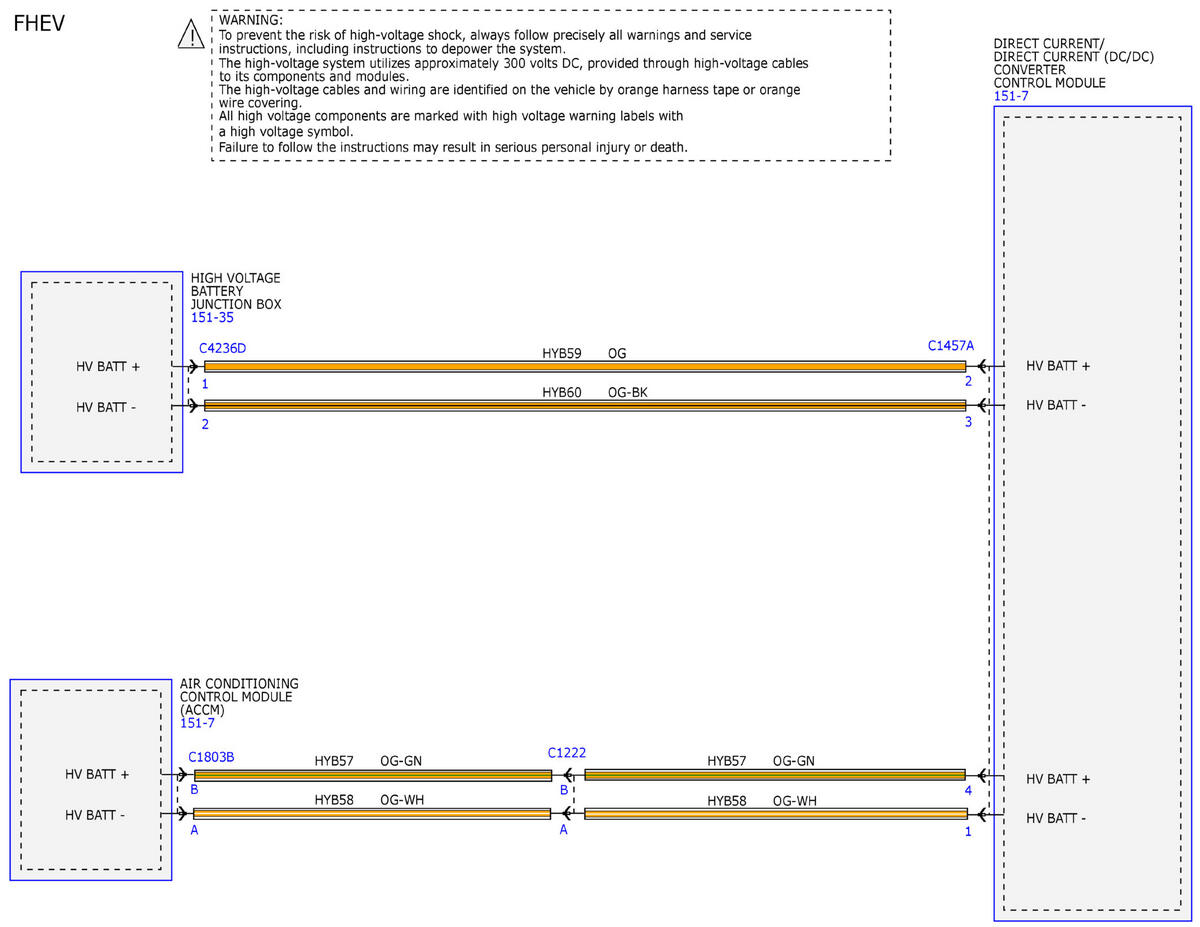

GFDWR231186Courtesy of FORD MOTOR COMPANY

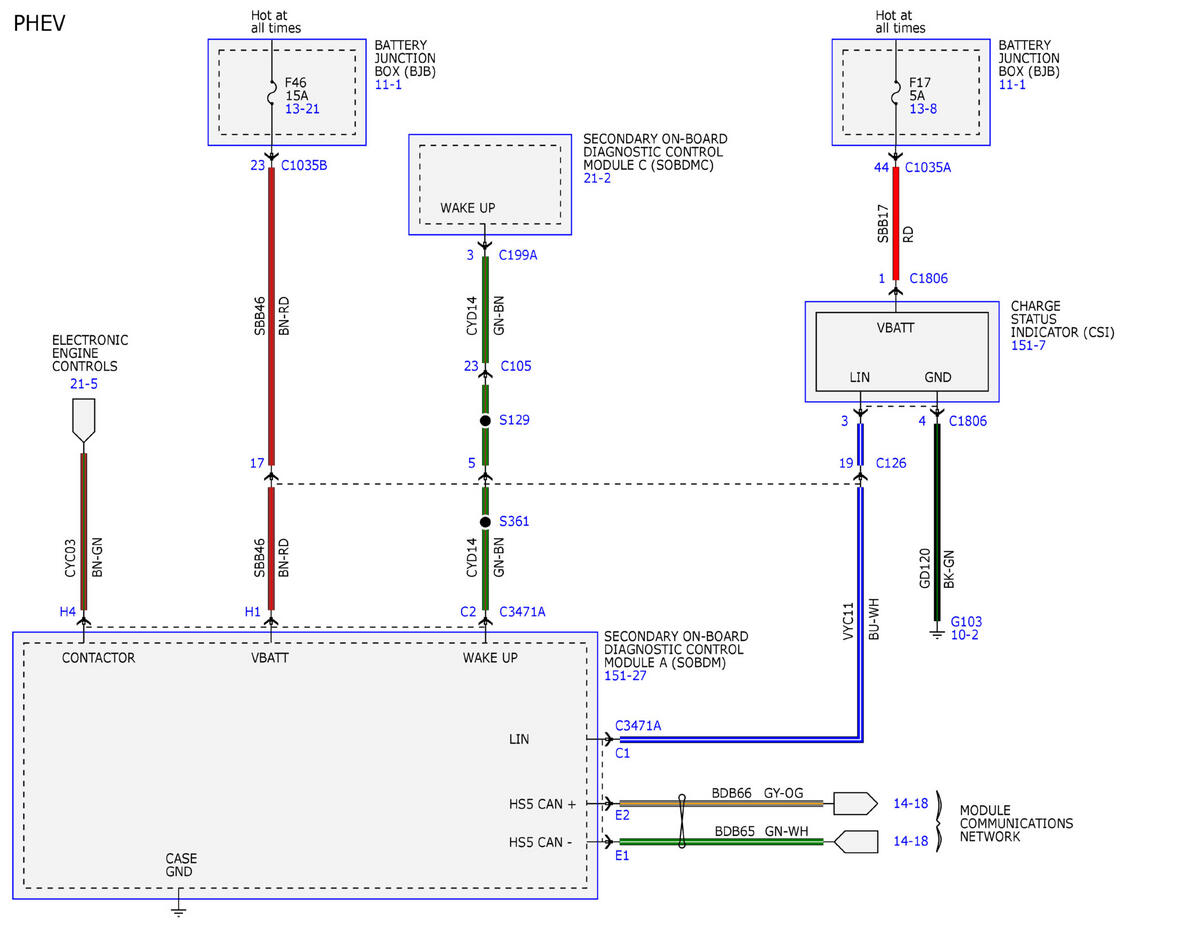

GFDWR231187Courtesy of FORD MOTOR COMPANY

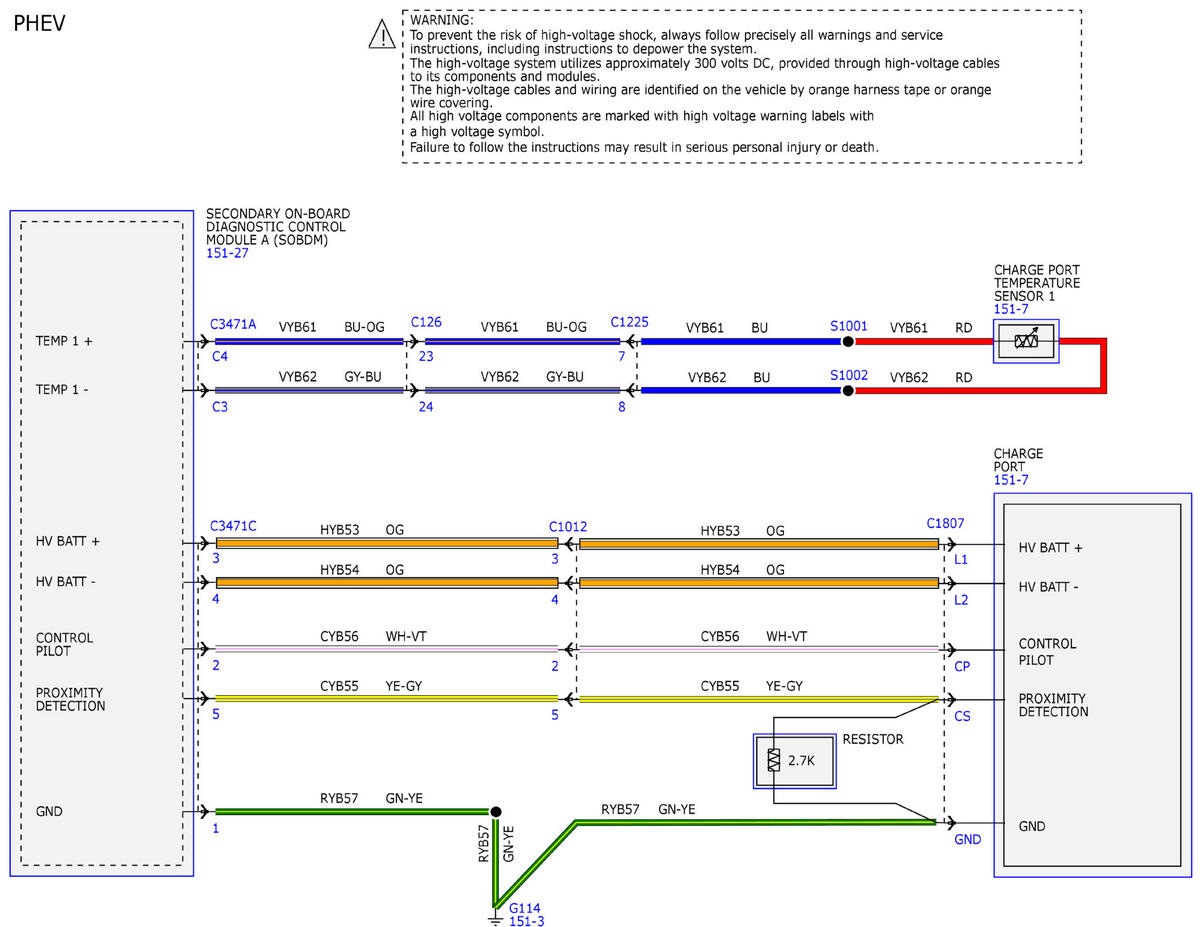

GFDWR231188Courtesy of FORD MOTOR COMPANY

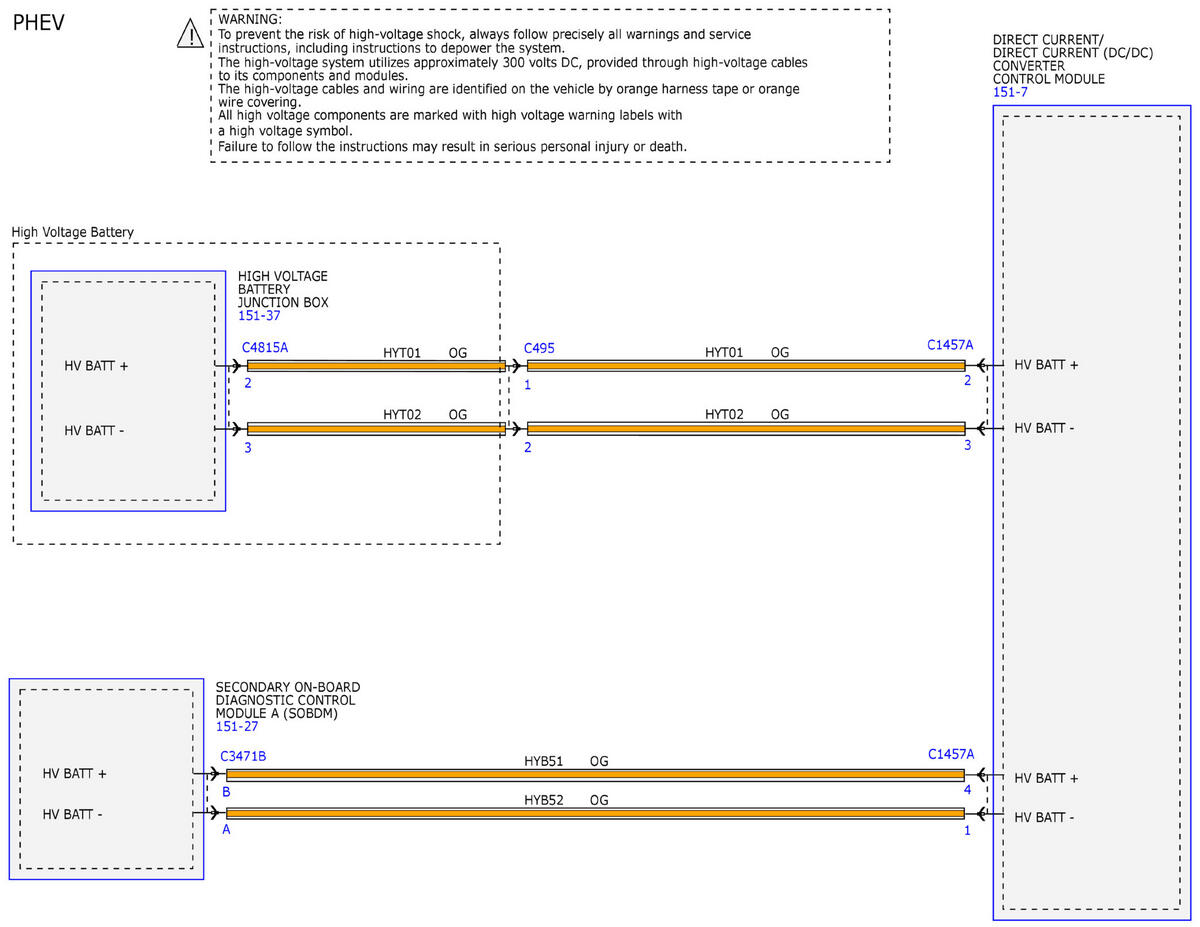

GFDWR231189Courtesy of FORD MOTOR COMPANY
