Relay - Micro ISO

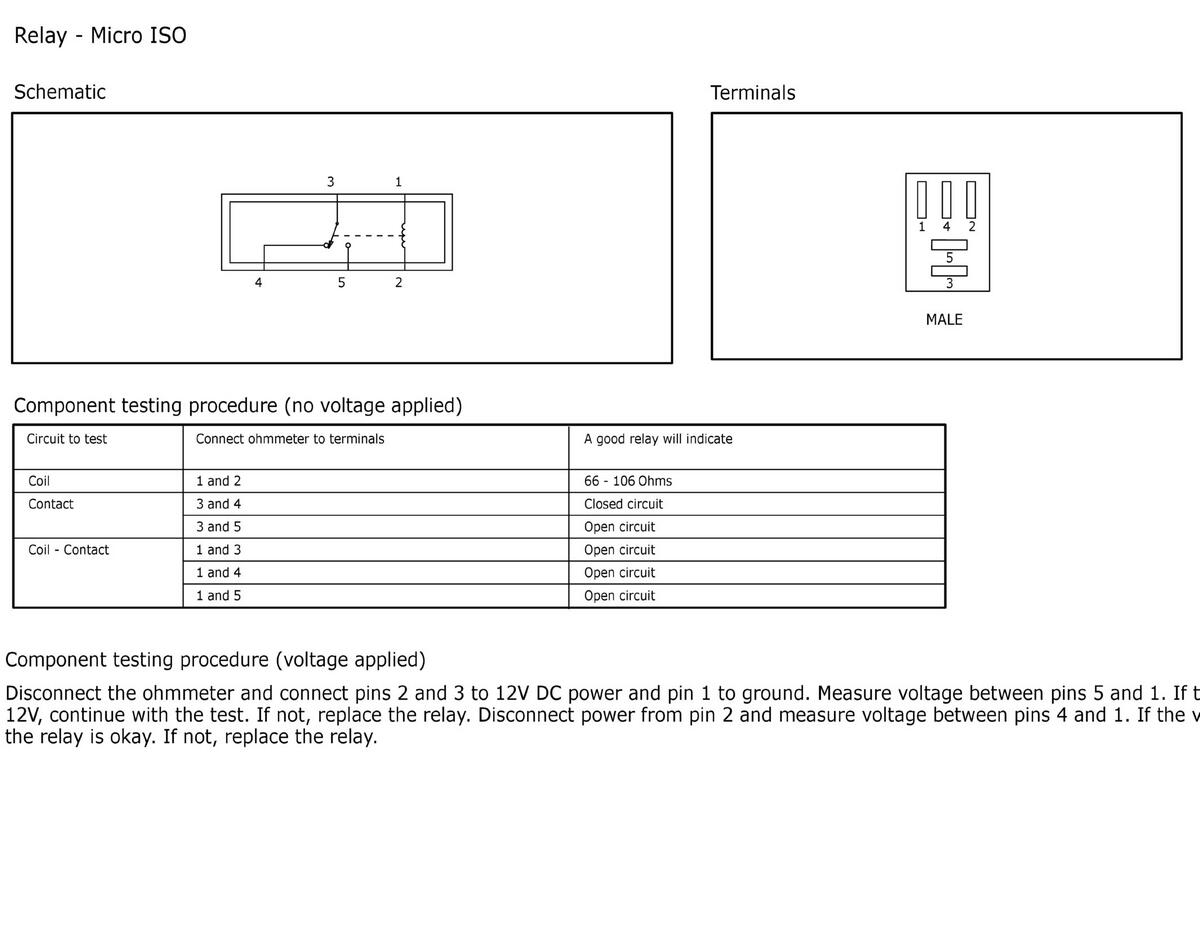

Fig 1: Relay - Micro ISO Component Testing
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
