Relay - Power ISO

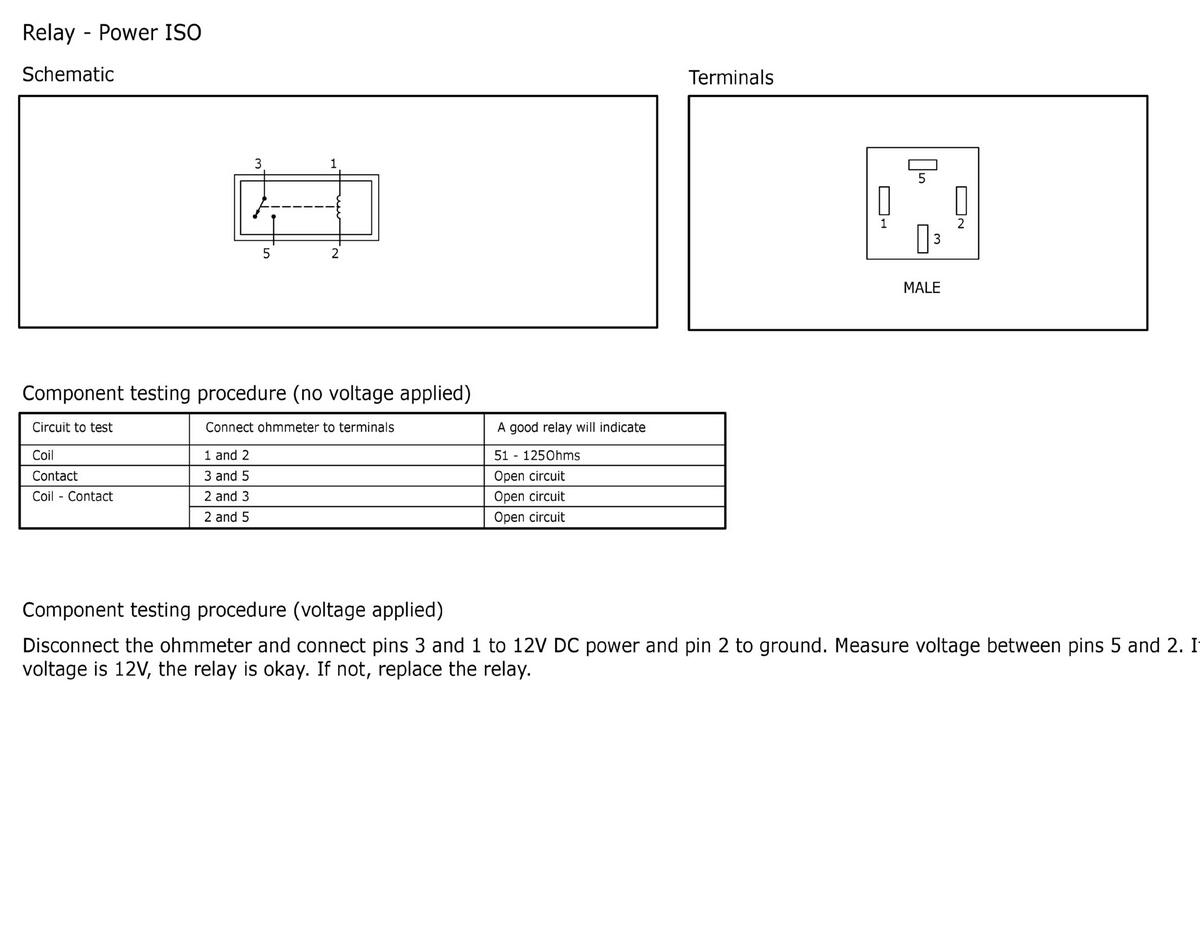

Fig 1: Relay - Power ISO Component Testing
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
