Electronic Engine Controls - 1.5L ECOBOOST (129KW 175PS) (Cr)
>>
Description And Operation
>>
Electronic Engine Controls - Component Location
>>
Engine Sensor
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Engine Sensor
Courtesy of FORD MOTOR COMPANY
Item
Description

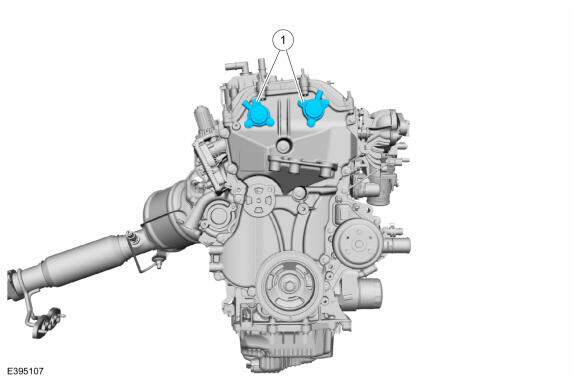

1
VCT oil control solenoids
Courtesy of FORD MOTOR COMPANY
Item
Description

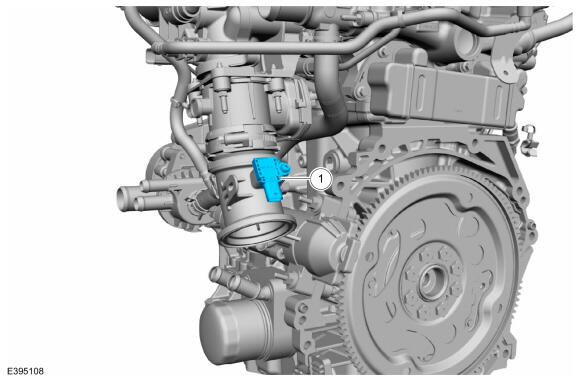

1
Turbocharger Boost Pressure (TCBP) and Charger Air Cooler Temperature (CACT) sensor
