Variable Camshaft Timing (VCT) Oil Control Solenoid: Removal

RH

1. Remove the RH valve cover. Refer to: Valve Cover Rh .

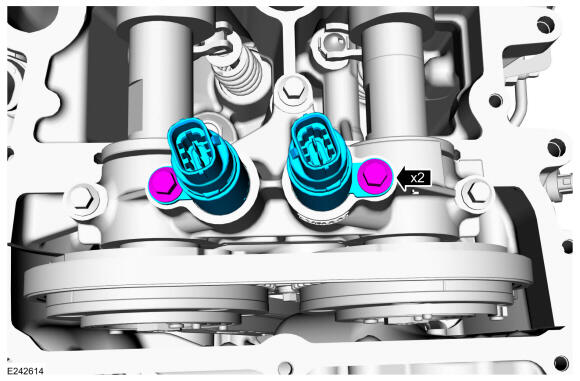

2. Remove the bolts and the RHVCT oil control solenoids.

   Torque: 10 Nm

   Courtesy of FORD MOTOR COMPANY

   LH

3. Remove the LH valve cover. Refer to: Valve Cover LH .

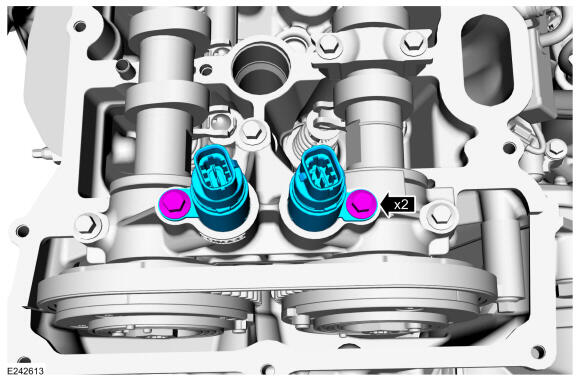

4. Remove the bolts and the LHVCT oil control solenoids.

   Torque: 10 Nm

Courtesy of FORD MOTOR COMPANY
