System Diagram
NOTE:
The system diagrams include all component options. Some components may not be equipped on the vehicle.

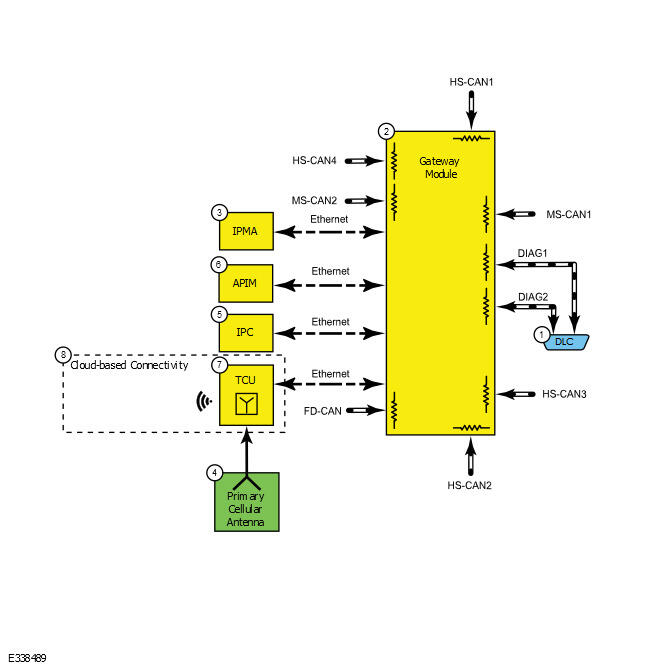

Ethernet Communication Network BEV
| Item | Description |
|---|---|
| 1 | DLC |
| 2 | GWM |
| 3 | IPMA |
| 4 | Primary cellular antenna |
| 5 | IPC |
| 6 | APIM |
| 7 | TCU |
| 8 | Cloud-based connectivity |
Ethernet Communication Network All Other Vehicles
| Item | Description |
|---|---|
| 1 | Gateway Module |
| 2 | IPMA |
| 3 | APIM |
| 4 | IPC |
| 5 | Cloud-based Connectivity |
| 6 | TCU |
| 7 | Primary Cellular Antenna |
| 8 | DLC |
