Connector Repair Procedures

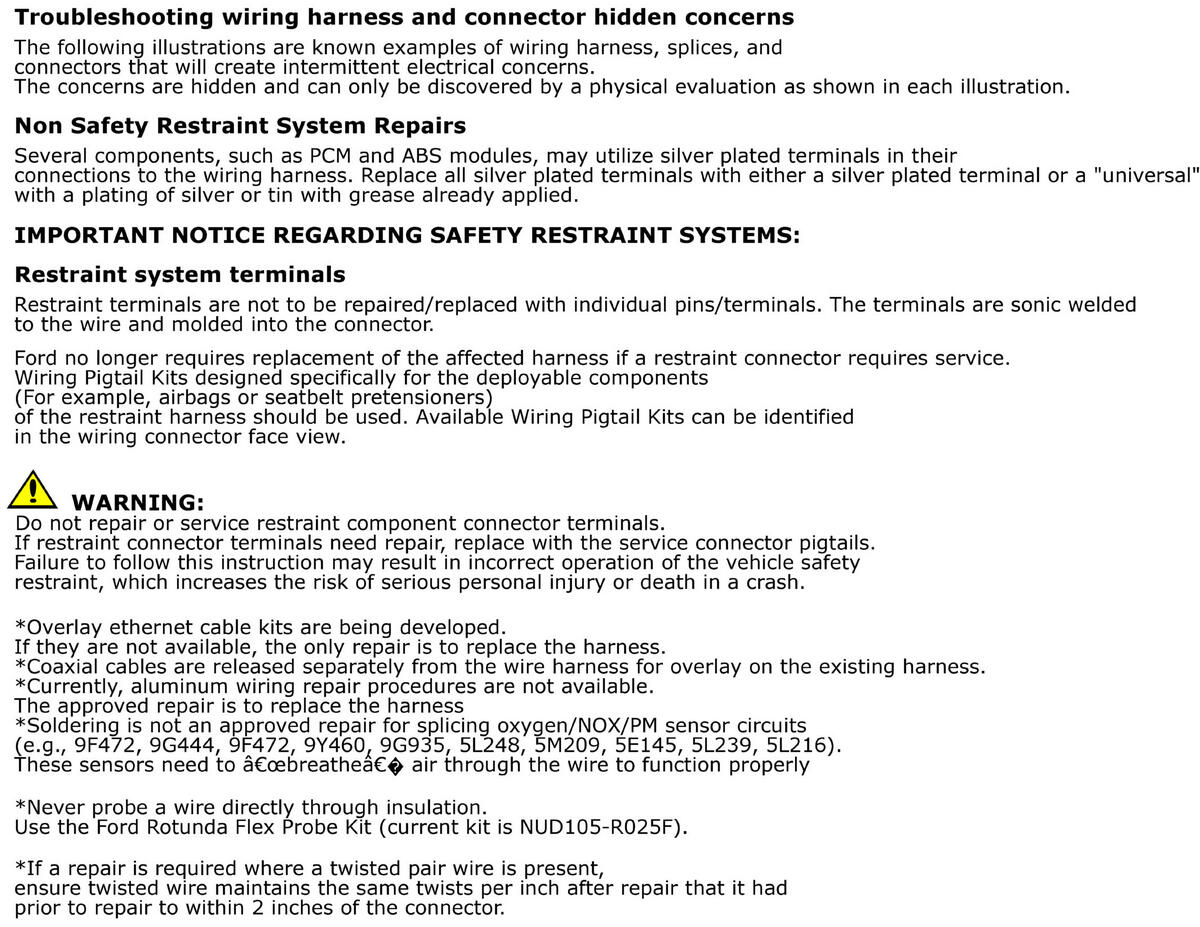

GFDWR244213Courtesy of FORD MOTOR COMPANY

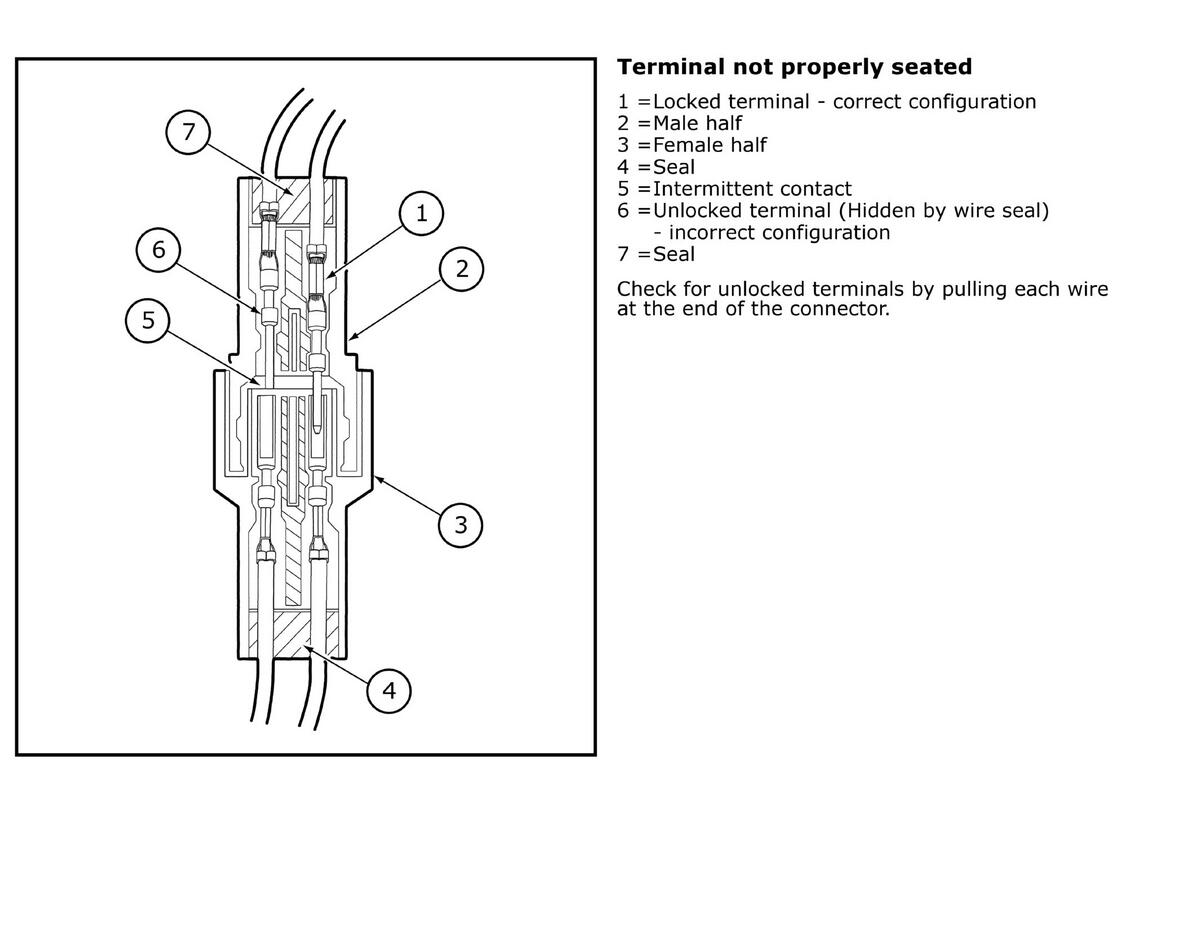

GFDWR244214Courtesy of FORD MOTOR COMPANY

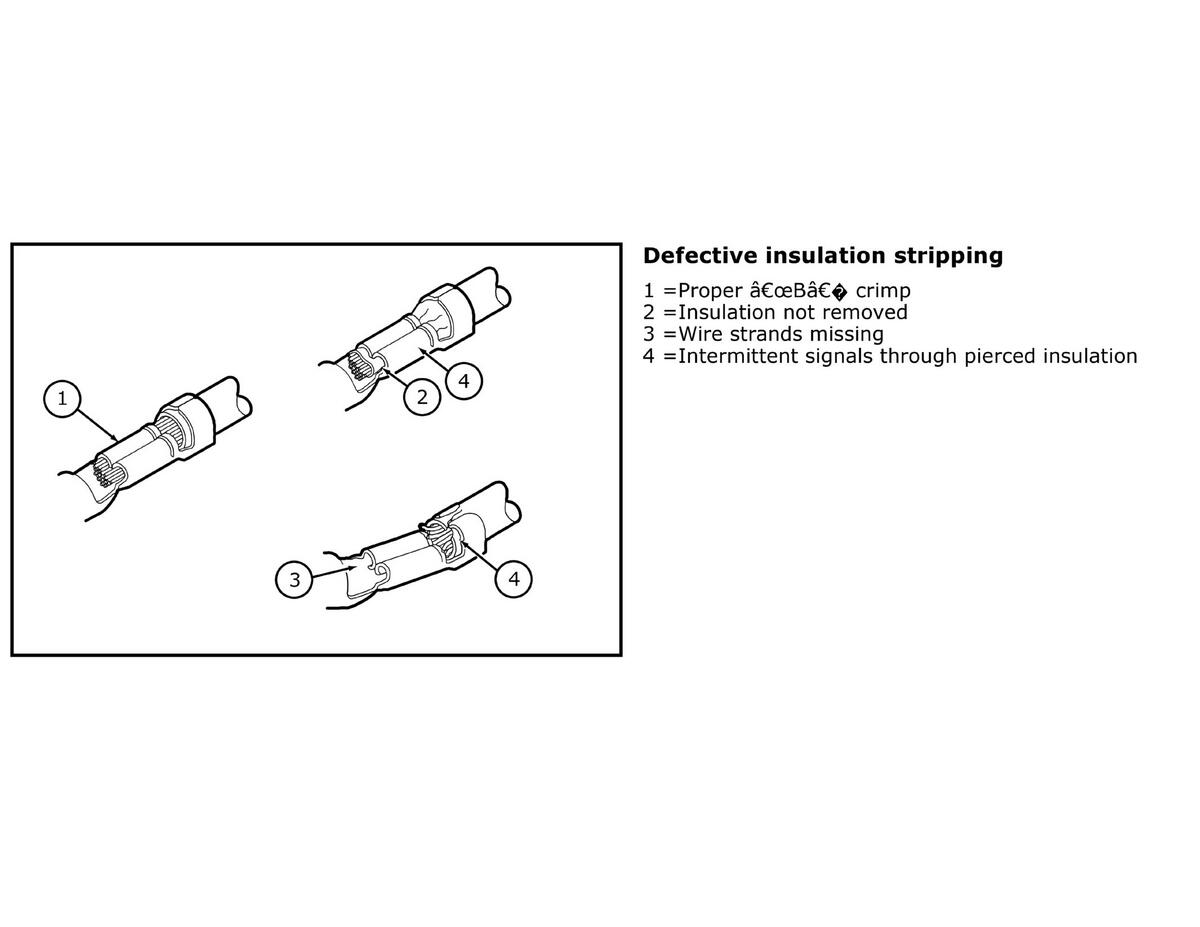

GFDWR244215Courtesy of FORD MOTOR COMPANY

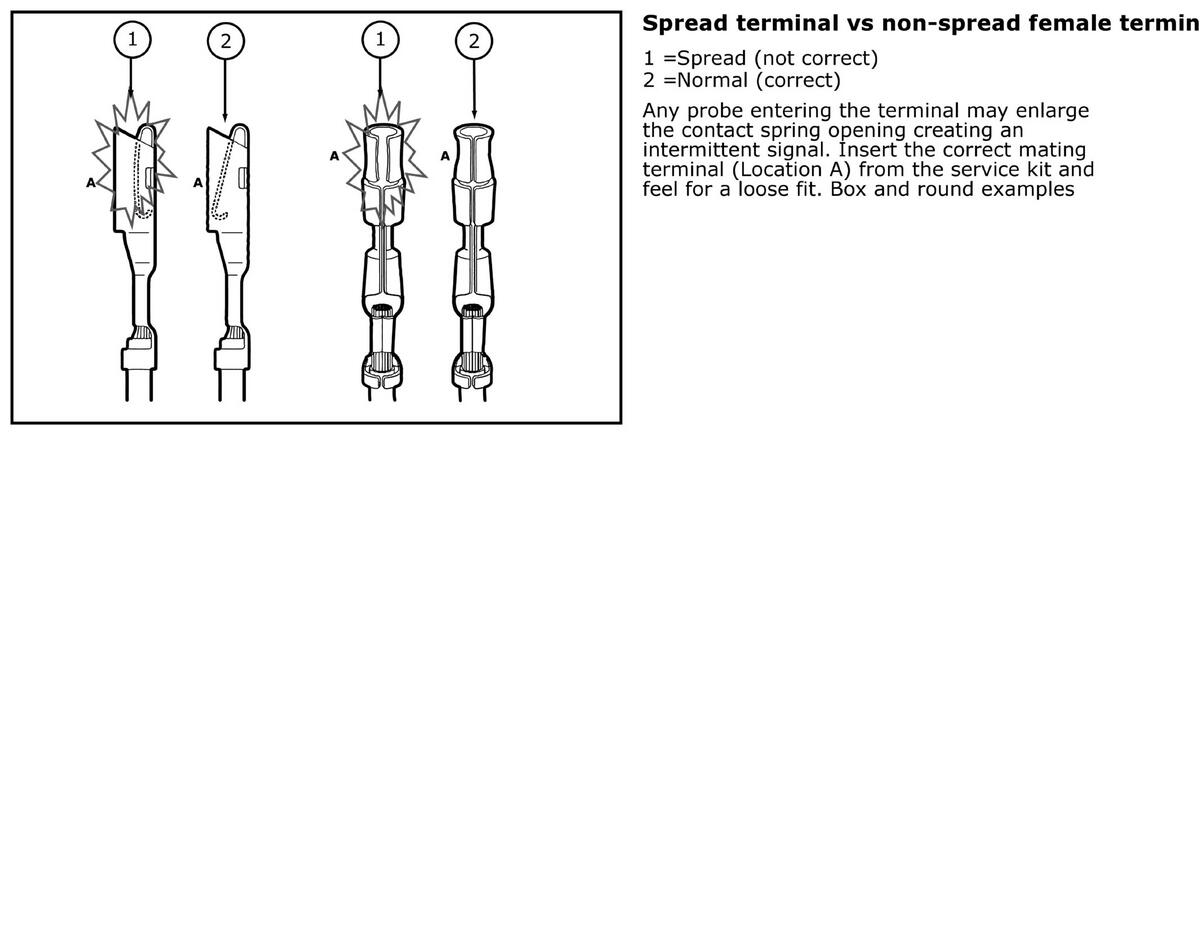

GFDWR244216Courtesy of FORD MOTOR COMPANY

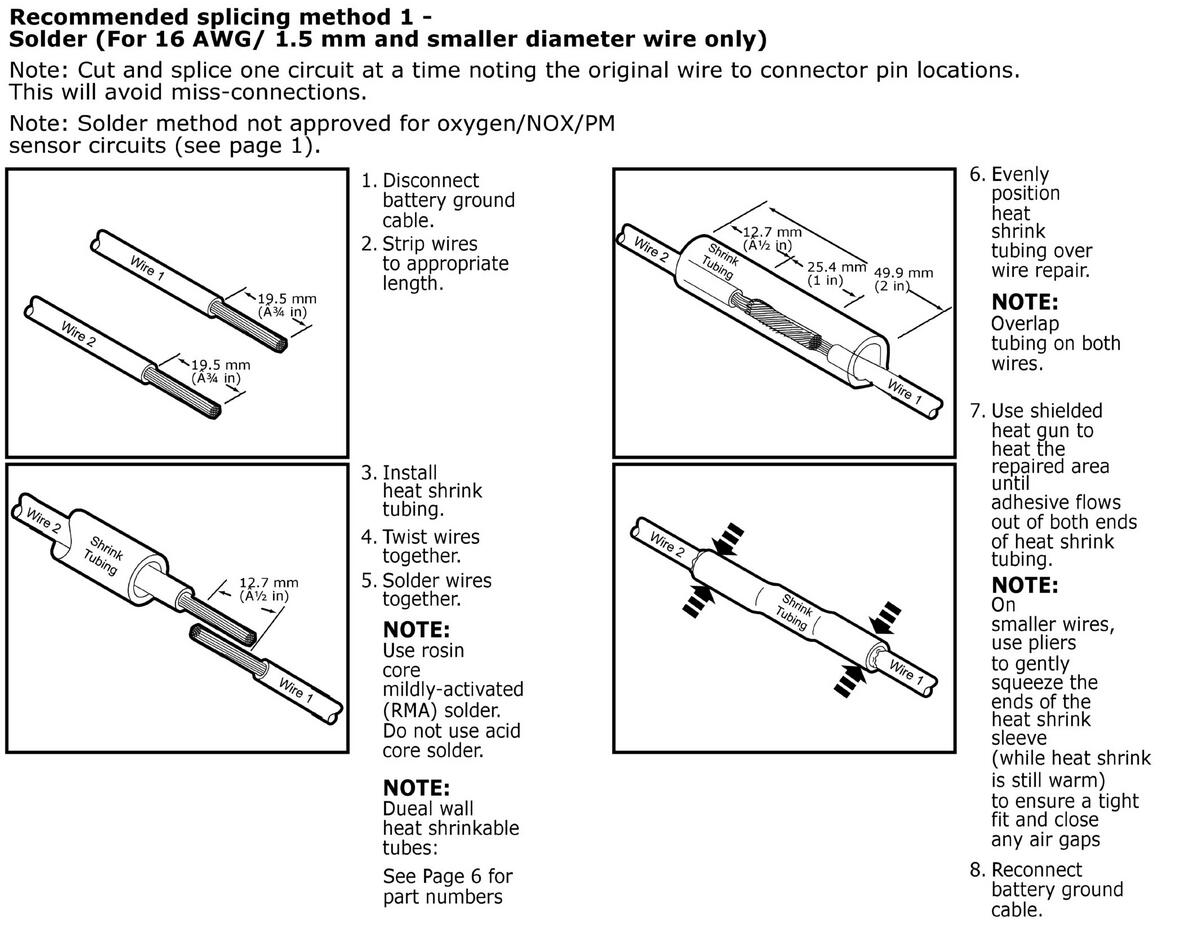

GFDWR244217Courtesy of FORD MOTOR COMPANY

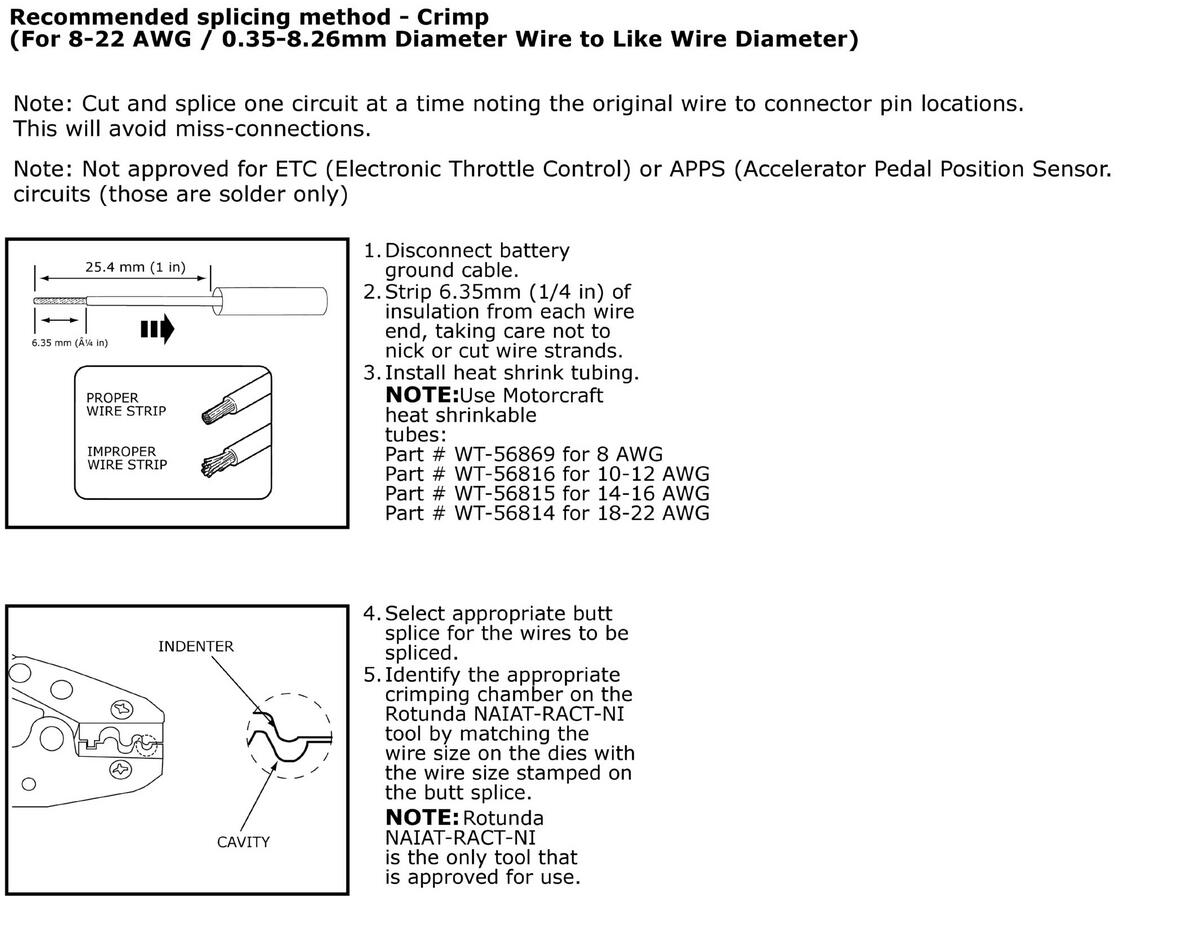

GFDWR244218Courtesy of FORD MOTOR COMPANY

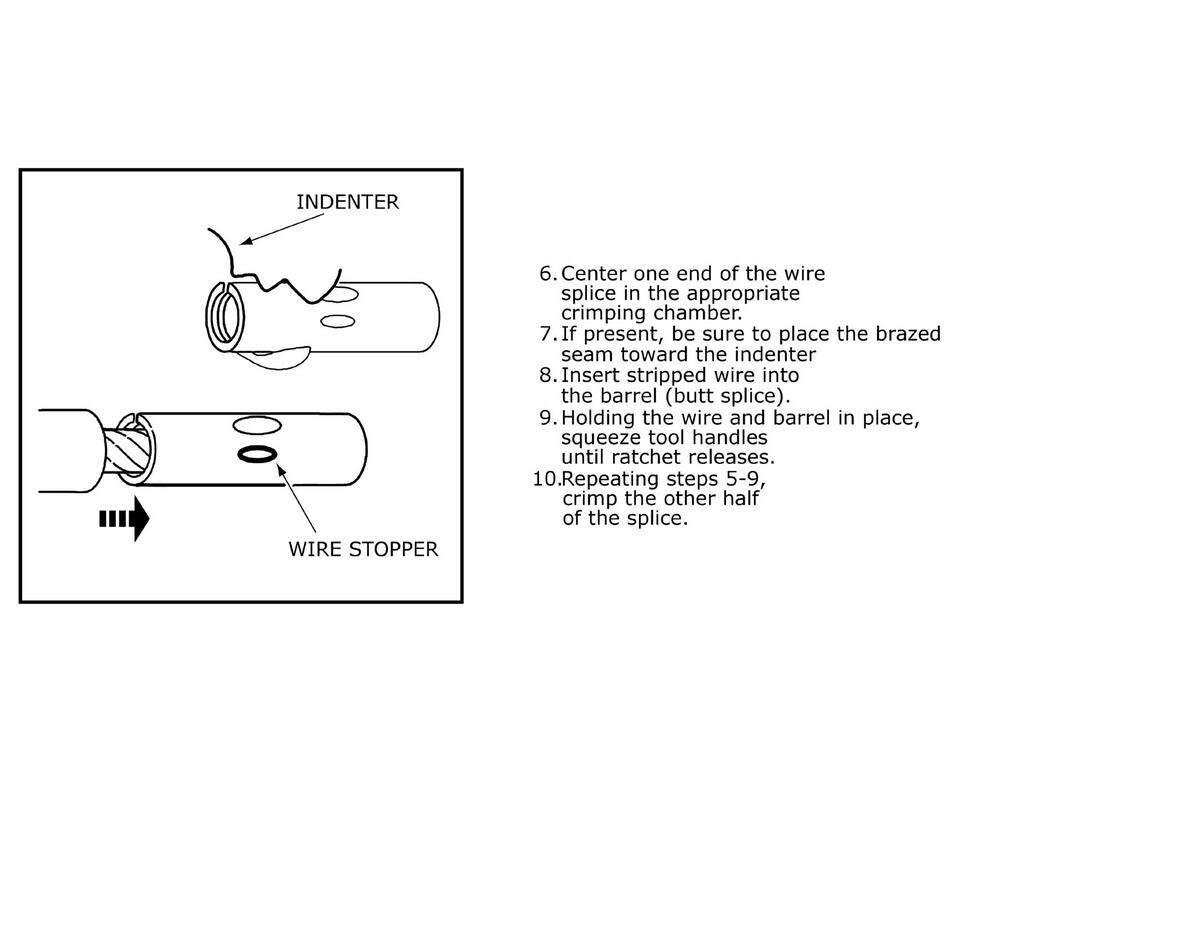

GFDWR244219Courtesy of FORD MOTOR COMPANY

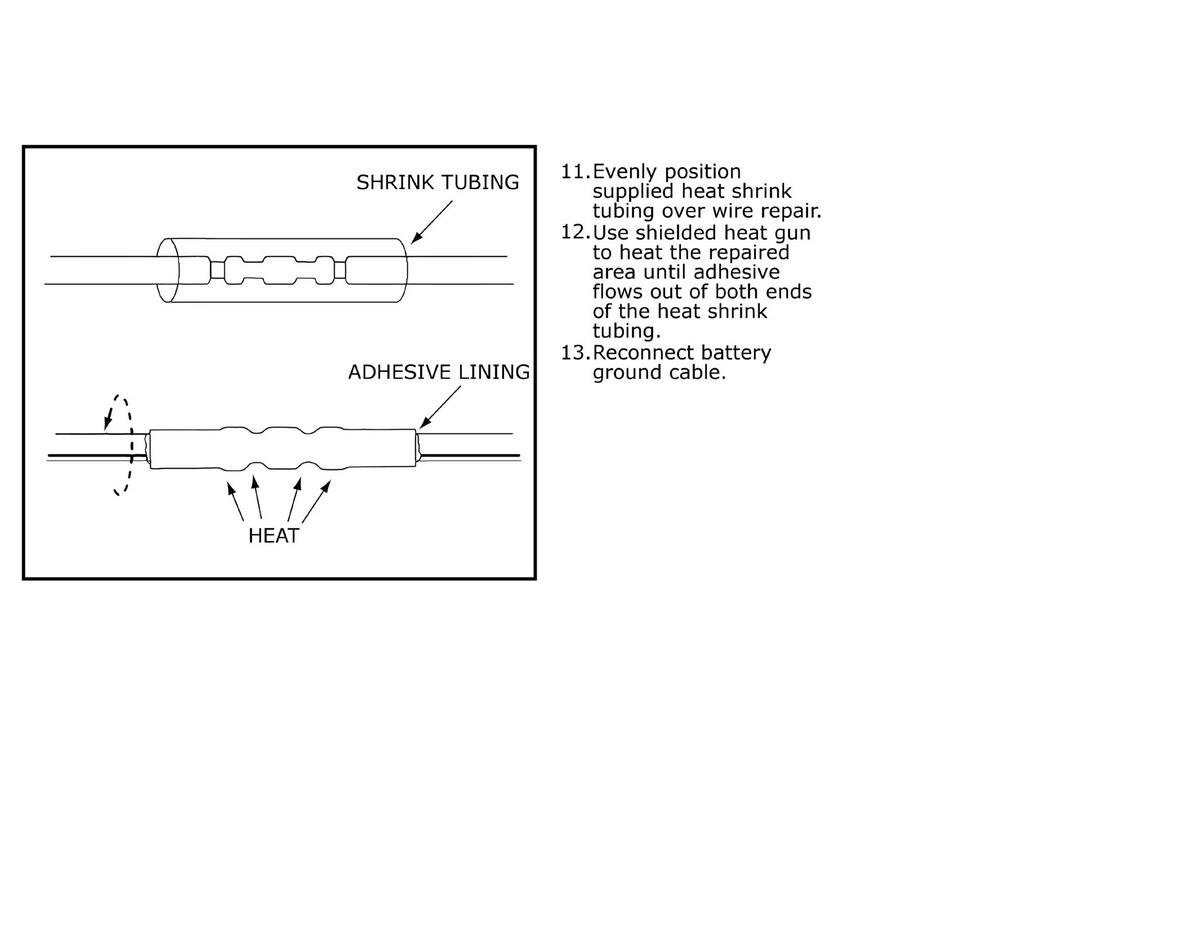

GFDWR244220Courtesy of FORD MOTOR COMPANY

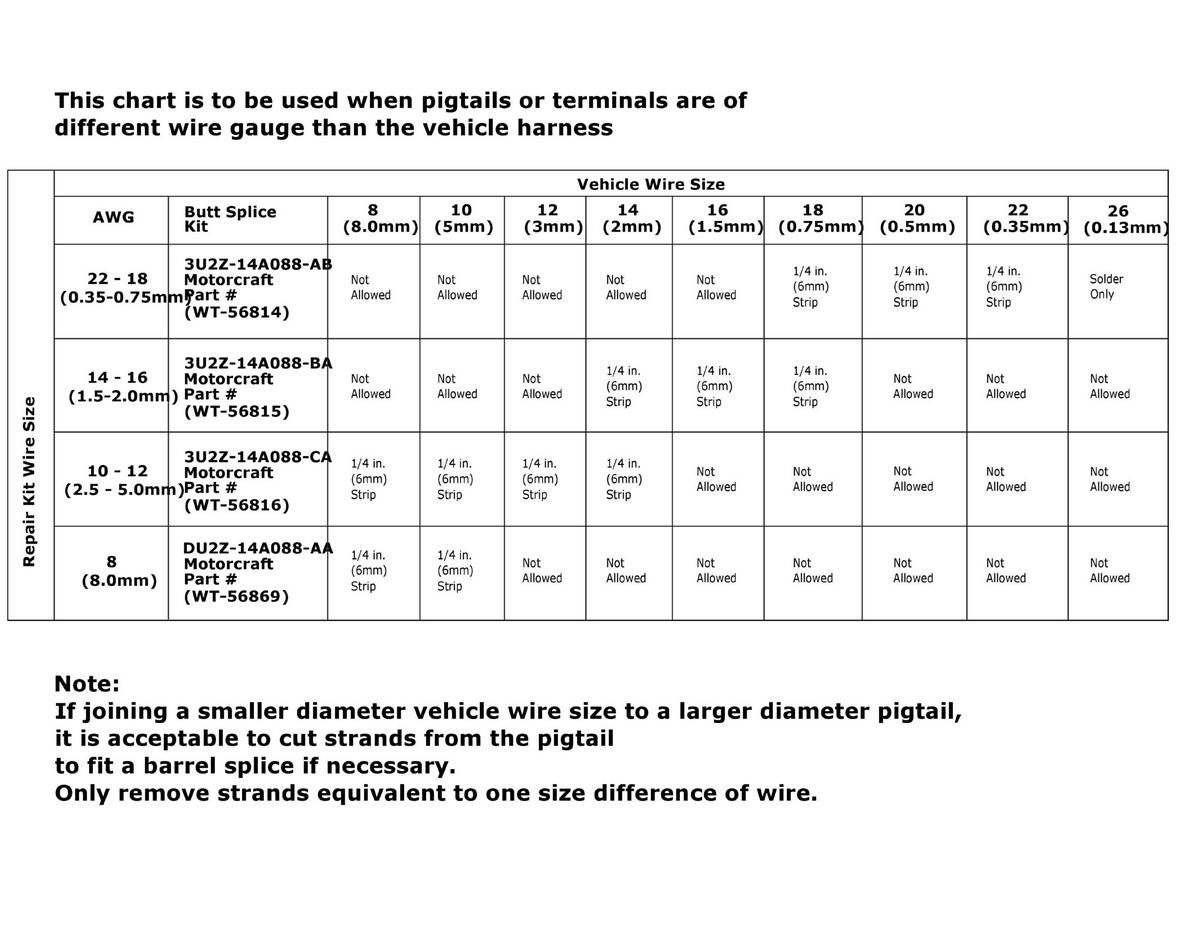

GFDWR244221Courtesy of FORD MOTOR COMPANY
