All-Wheel Drive (AWD) Module: Removal
NOTE:
Removal steps in this procedure may contain installation details.
-
WARNING: Before beginning any service procedure in this service information, refer to health and safety warnings in General Information. Failure to follow this instruction may result in serious personal injury.
Refer to: Health and Safety Precautions .
- Disconnect the battery. Refer to: BATTERY DISCONNECT AND CONNECT
- Remove the RHF tyre. Refer to: Wheel and Tire .
- Remove the RHF fender splash shield. Refer to: FENDER SPLASH SHIELD
-

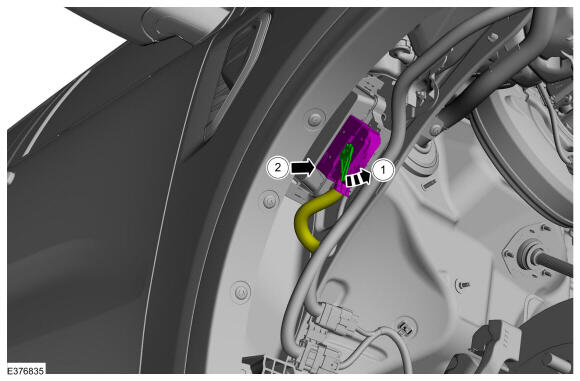

- Release the tab from the connector.
- Disconnect the electrical connector from the module.
-

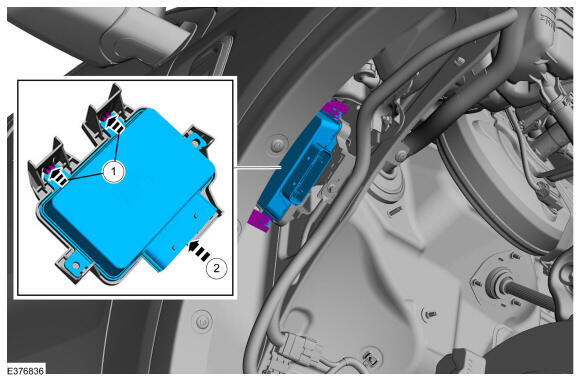

- Press and release both retaining tabs.
- Remove the AWD module from the vehicle
