Removal and Replacement

Removing and installing crank mechanism for hinged door

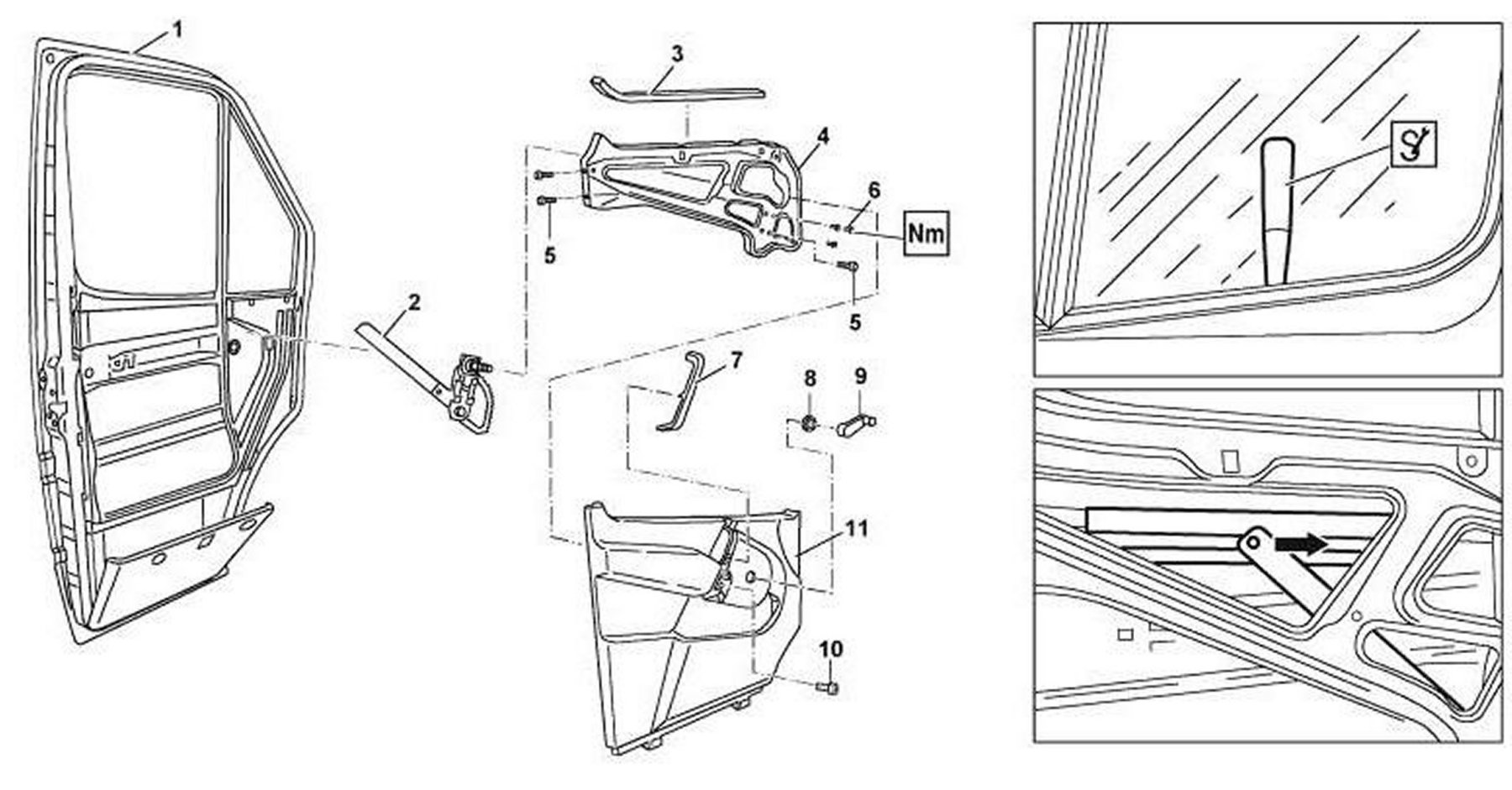

Removing And Installing Crank Mechanism For Hinged Door:

1. Door
2. Crank
3. Sealing strip
4. Carrier plate
5. Bolt
6. Blind rivet
7. Cover
8. Trim ring
9. Window crank
10. Bolt
11. Door paneling

Remove/install

1. Remove door liner from hinged door (11)
2. Block window with special tool
3. Remove crank carrier plate (4)
4. Move crank (2) out of window lift rail in direction of arrow
5. Check crank mechanism replace if necessary
6. Install in the reverse order
