Grille: Service and Repair

GRILLE

REMOVAL

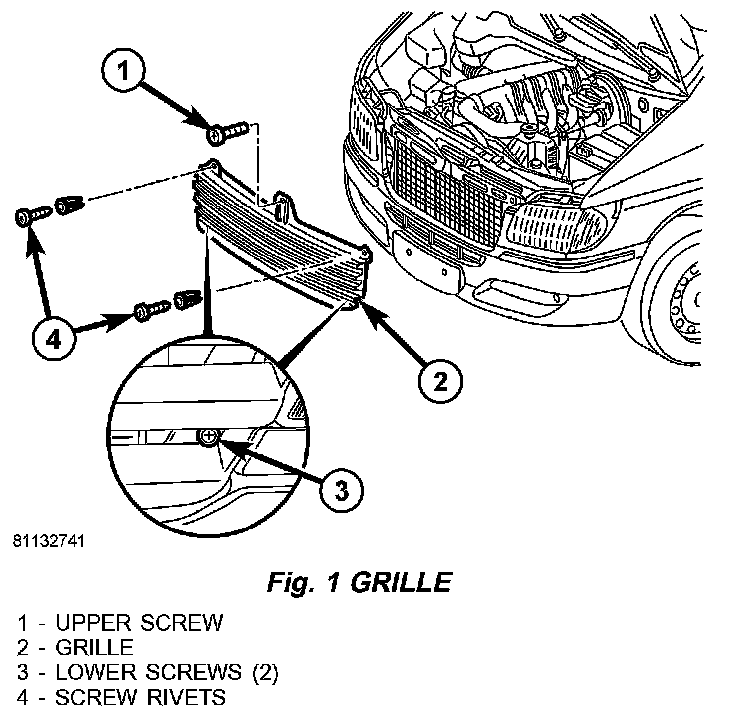

Fig. 1:

1. Remove screw rivets. (Fig. 1)
2. Loosen lower screws.
3. Remove upper screws.
4. Remove grille.

INSTALLATION

1. Install grille.
2. Install upper screw.
3. Tighten lower screws.
4. Install screw rivets.
