Blower Motor Resistor: Service and Repair

REMOVAL
1. Disconnect and isolate the negative battery cable.

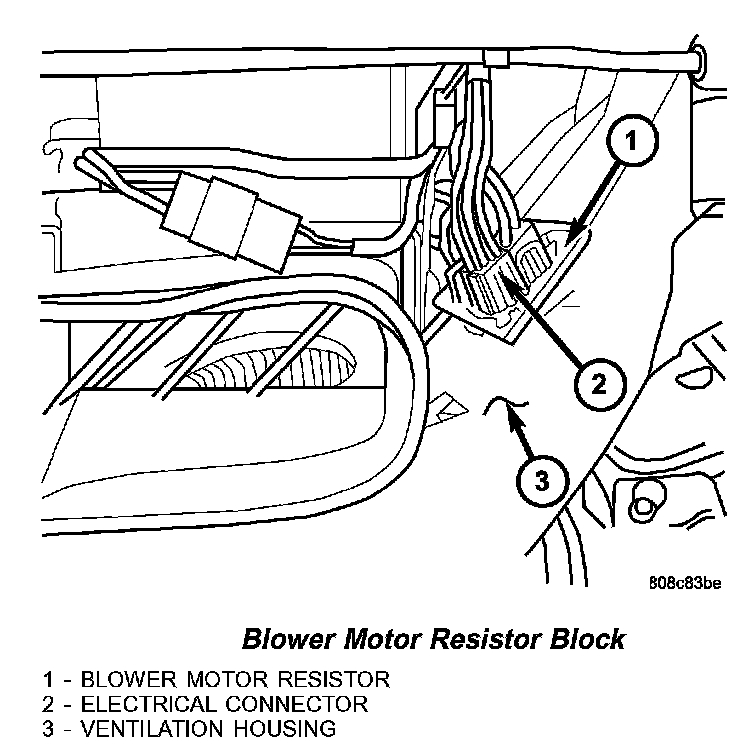

Blower Motor Resistor Block:

2. Depress the locking tab and remove the blower motor resistor from the ventilation housing by sliding the resistor inboard.
3. Depress the two locking tabs and disconnect the wire harness connector from the blower motor resistor.
4. Remove the blower motor resistor from the engine compartment.

INSTALLATION
1. Connect the wire harness connector to the blower motor resistor and engage the two locking tabs.
2. Install the blower motor resistor into the ventilation housing and engage the locking tab. The housing is indexed to allow mounting in only one position.
3. Reconnect the negative battery cable.
