Discharge Air Temperature Sensor / Switch: Service and Repair

AIR OUTLET TEMPERATURE SENSOR

REMOVAL
1. Disconnect and isolate the battery negative cable.
2. Remove the heater-A/C control from the instrument panel.

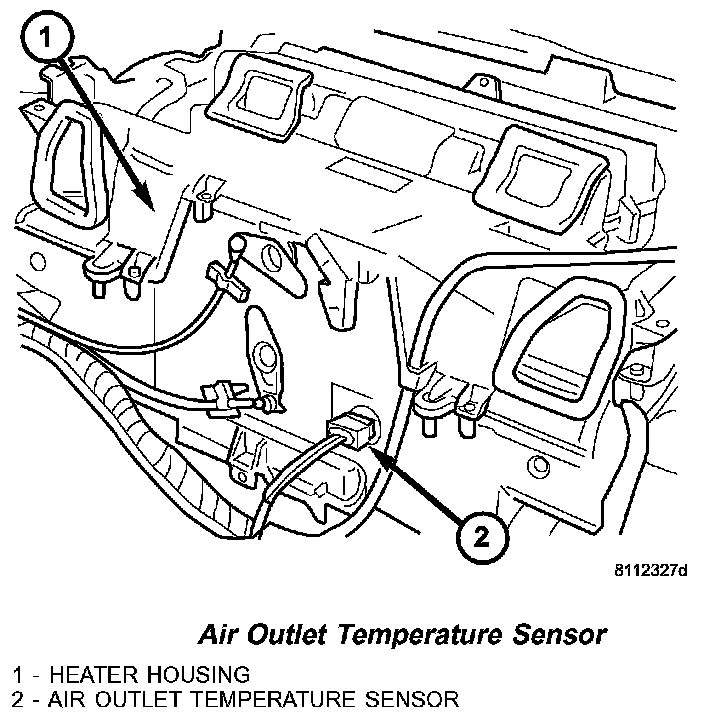

Air Outlet Temperature Sensor:

3. Disconnect the wire harness connector from the air outlet temperature sensor.
4. Remove the air outlet temperature sensor from the heater housing.

INSTALLATION
1. Install the air outlet temperature sensor onto the heater housing.
2. Connect the wire harness connector to the air outlet temperature sensor.
3. Install the heater-A/C control into the instrument panel.
4. Reconnect the battery negative cable.
