Temperature Sensor

REMOVAL
1. Disconnect and isolate the negative battery cable.
2. Remove the air filter from the rear A/C evaporator housing.

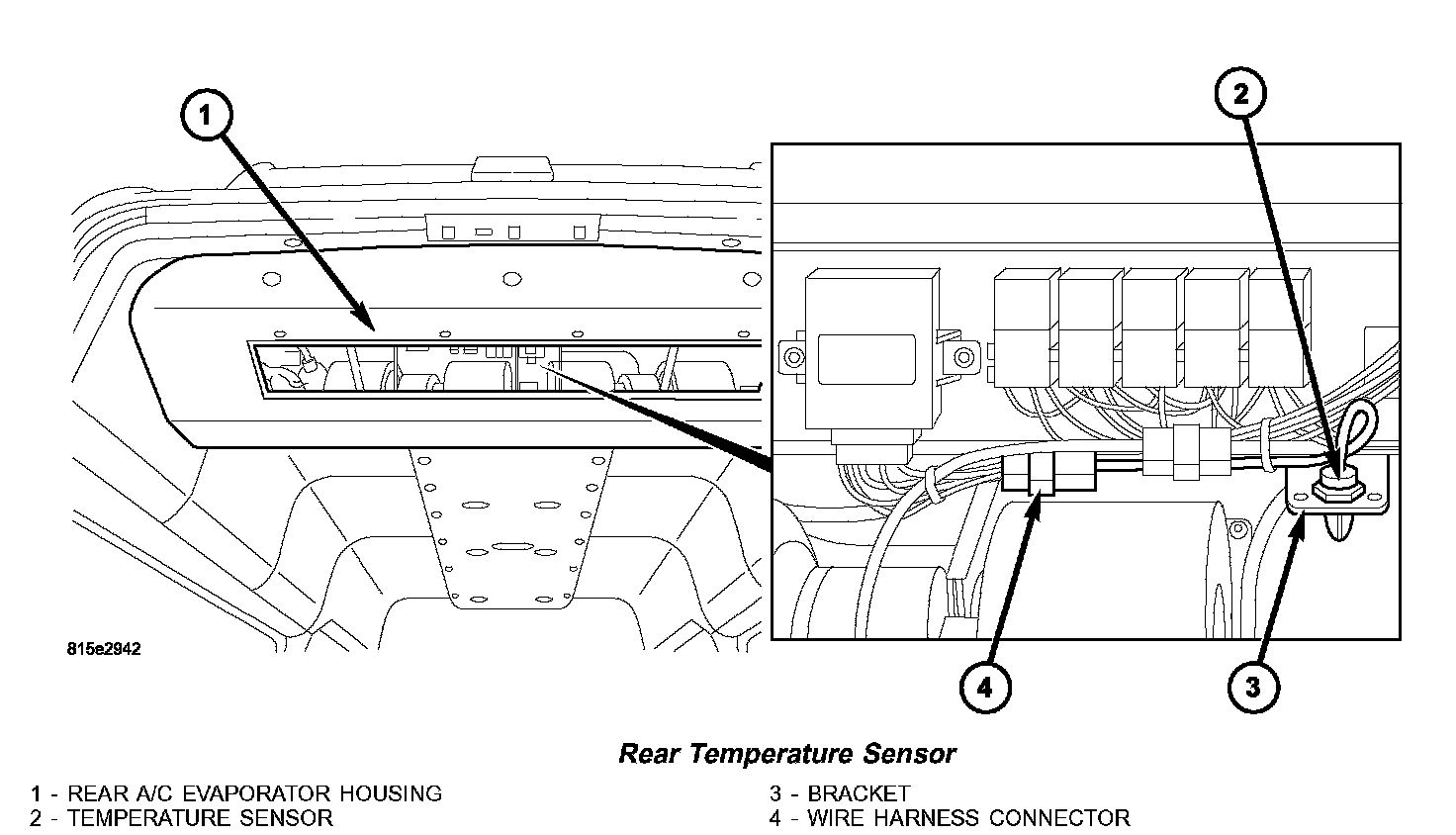

Rear Temperature Sensor:

3. Reach up into the rear A/C evaporator housing and disconnect the wire harness connector from the rear temperature sensor.
4. Carefully remove the rear temperature sensor from the bracket.

INSTALLATION
1. Carefully install the rear temperature sensor onto the bracket located in the rear A/C evaporator housing.
2. Connect the temperature sensor wire harness connector.
3. Connect the wire harness connector to the rear temperature sensor.
4. Install the rear air filter.
5. Reconnect the negative battery cable.
