Procedures

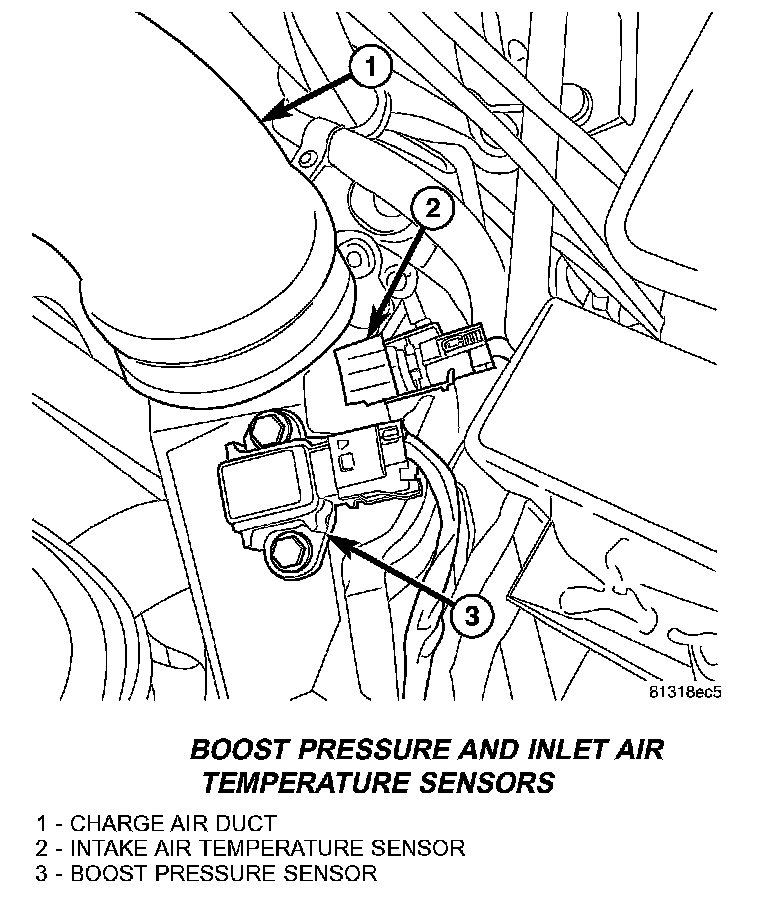

Boost Pressure And Inlet Air Temperature Sensors:

REMOVAL
1. Disconnect the negative battery cable.
2. Unplug the wiring harness connector at the intake air temperature sensor.
3. Press together the sensor locking arms and remove the sensor from the charge air pipe.

INSTALLATION
1. Position the intake air temperature sensor above the charge air pipe access hole.
2. Press together the sensor locking tabs, seat the sensor to the pipe and release tabs.
3. Connect negative battery cable.
