Ambient Temperature Sensor / Switch HVAC


Component ID: 440
Component : SENSOR-AMBIENT AIR TEMPERATURE

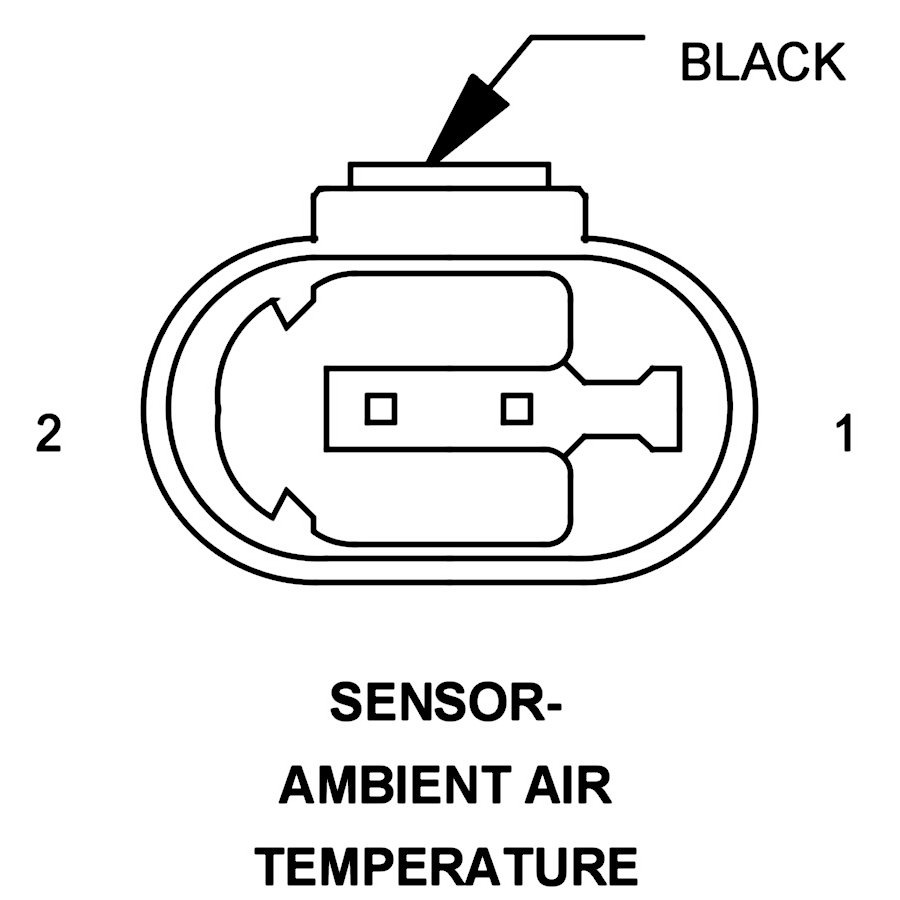

Connector:
Name : SENSOR-AMBIENT AIR TEMPERATURE
Color : BLACK
# of pins : 2




Pin Description Circuit
1 SENSOR GROUND 522 20BR
2 AAT SIGNAL 523 20DG
