Installation






INSTALLATION

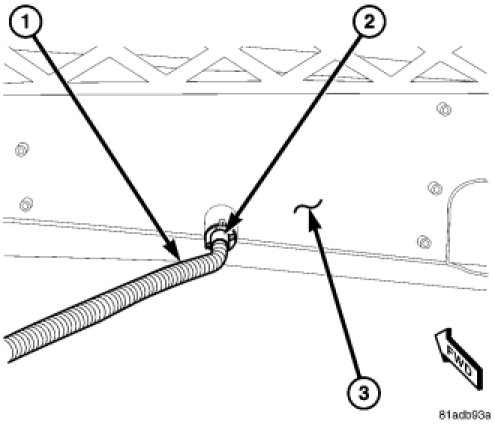

1. Connect the wire harness connector (1) to the ambient air temperature sensor (2).
2. Install the ambient air temperature sensor into the back of the front fascia (3). Make sure the sensor is fully engaged to the fascia.
3. Lower the vehicle.
4. Reconnect the negative battery cable.
