Power Distribution Center (PDC)




Power Distribution Center (PDC)

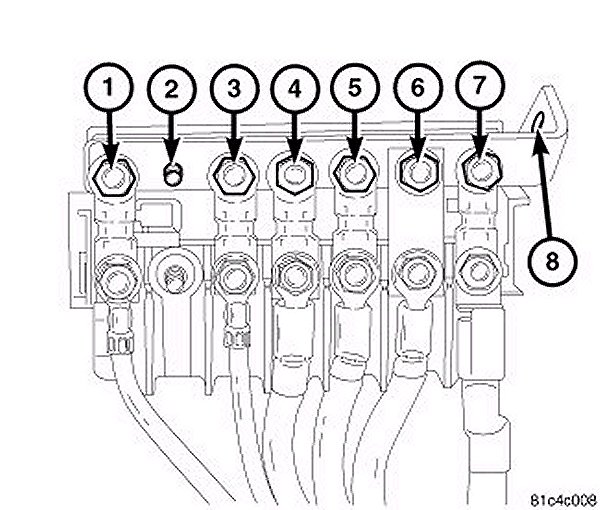

The Power Distribution Center (PDC) is attached to a stud (8) on the positive battery clamp of the starter battery. For more information, refer to
