Installation

INSTALLATION

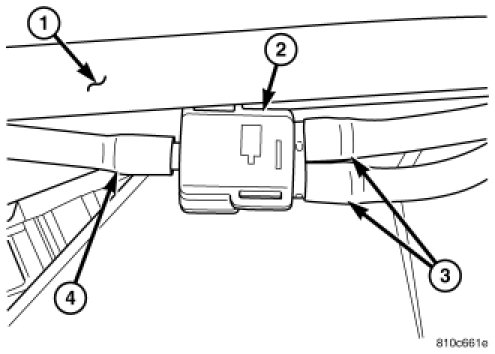

1. Position the front check valve unit (2) to the left rear corner of the engine compartment near the dash panel (1).
2. Reconnect the washer hoses (3 and 4) to the three barbed nipples of the check valve.
3. Close and latch the hood.
