Removal

REMOVAL

WARNING: Review safety precautions and warnings in this group before performing this procedure and . Failure to follow the warnings and cautions may result in serious or fatal injury.





1. Disconnect and isolate the negative battery cable.
2. Recover the refrigerant from the refrigerant system .

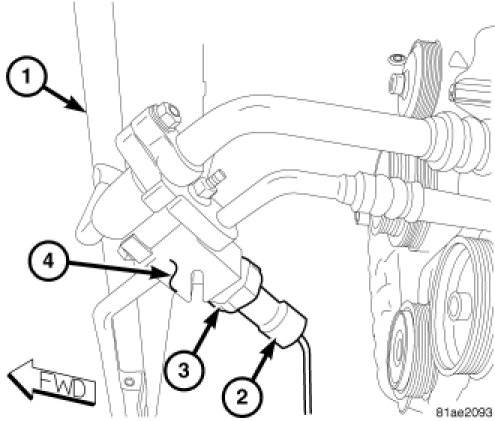

3. Disconnect the wire harness connector (2) from the A/C pressure transducer (4) located on the tapping block (4) at the left end of the A/C condenser (1).
4. Remove the A/C pressure transducer from the tapping block and remove and discard the O-ring seal.
