EGR Control Solenoid: Locations










The Exhaust Gas Recirculation (EGR) Air Flow Valve Actuator and Resonator are located in the air intake tube between the turbocharger intercooler and the intake manifold.

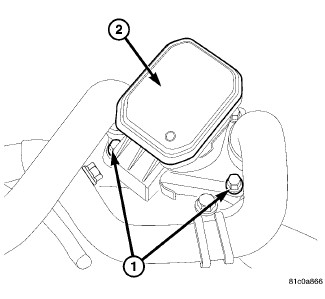

EGR valve (2).
