Headlamp Leveling Module - Removal

REMOVAL





1. Disconnect and isolate the battery negative cable.

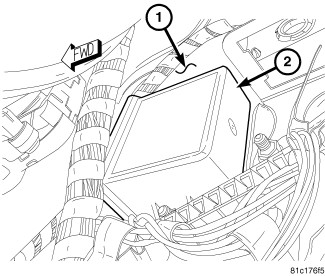

2. Remove the trim from the right cowl side inner panel (1). .
3. Remove the two nuts that secure the Automatic Headlamp Leveling Module (AHLM) (2) to the weld studs on the right cowl side inner panel.
4. Pull the AHLM off of the weld studs and rearward far enough to access and disconnect the vehicle wire harness connector from the connector receptacle on the forward-facing side of the AHLM.
5. Remove the AHLM from the vehicle.
