Steering Columns: Adjustments: Notes

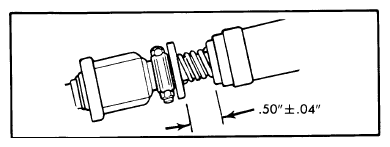

Fig 1: Coupling-to-Steering Shaft Flange Adjustment for "C" and "K" Models
G09341609Courtesy of GENERAL MOTORS COMPANY

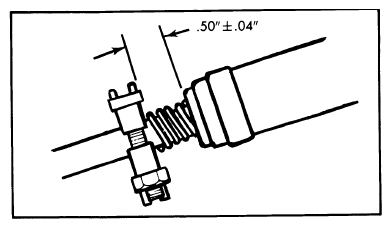

Fig 2: Coupling-to-Steering Shaft Flange Adjustment for "G" Models
G09341610Courtesy of GENERAL MOTORS COMPANY

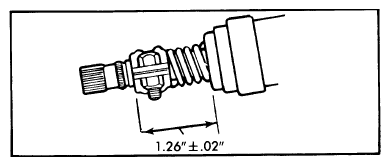

Fig 3: Coupling-to-Steering Shaft Flange Adjustment for "P" Models
G09341611Courtesy of GENERAL MOTORS COMPANY
