Steering Columns: Adjustments: Notes

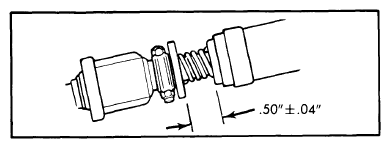

Fig 1: Coupling-to-Steering Shaft Flange Adjustment for "C" & "K" Models
G09346471Courtesy of GENERAL MOTORS COMPANY

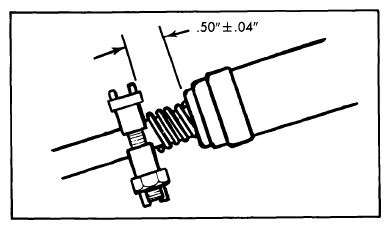

Fig 2: Coupling-to-Steering Shaft Flange Adjustment for "G" Models
G09346472Courtesy of GENERAL MOTORS COMPANY

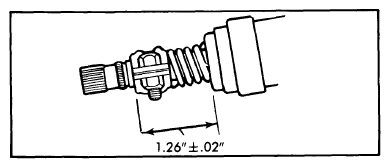

Fig 3: Coupling-to-Steering Shaft Flange Adjustment for "P" Models
G09346473Courtesy of GENERAL MOTORS COMPANY
