Choke Unloader
NOTE:
This adjustment is performed using the choke valve angle gauge. See procedure at beginning of ADJUSTMENTS .
- Choke coil lever must be adjusted correctly, and fast idle adjustment must be set before proceeding.

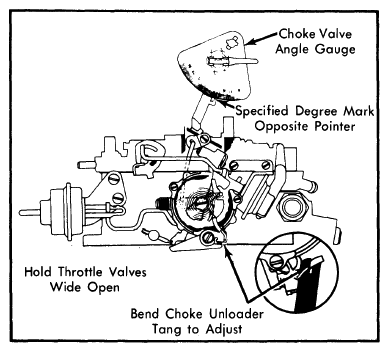

- Hold throttle valves wide open. See Fig 1. If engine is warm, close choke valve by pushing up on vacuum break lever tang. Hold in position with a rubber band.
- Bubble on choke valve angle gauge should be centered with specified degree mark opposite pointer.
- To adjust, bend choke unloader tang on throttle lever until bubble of choke valve angle gauge is centered.
