System Specifications

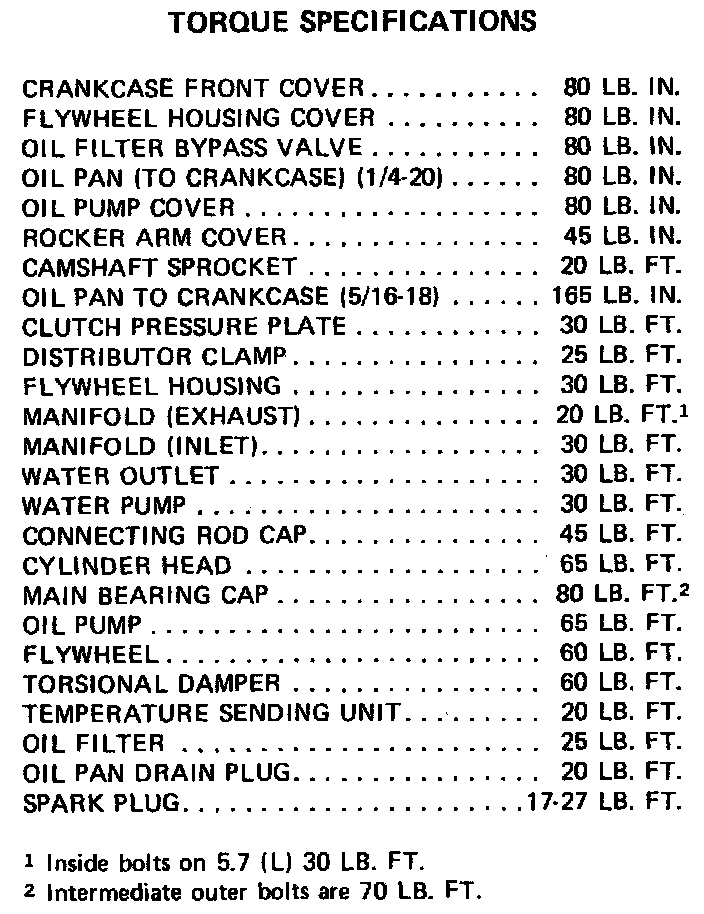

Torque Specifications:

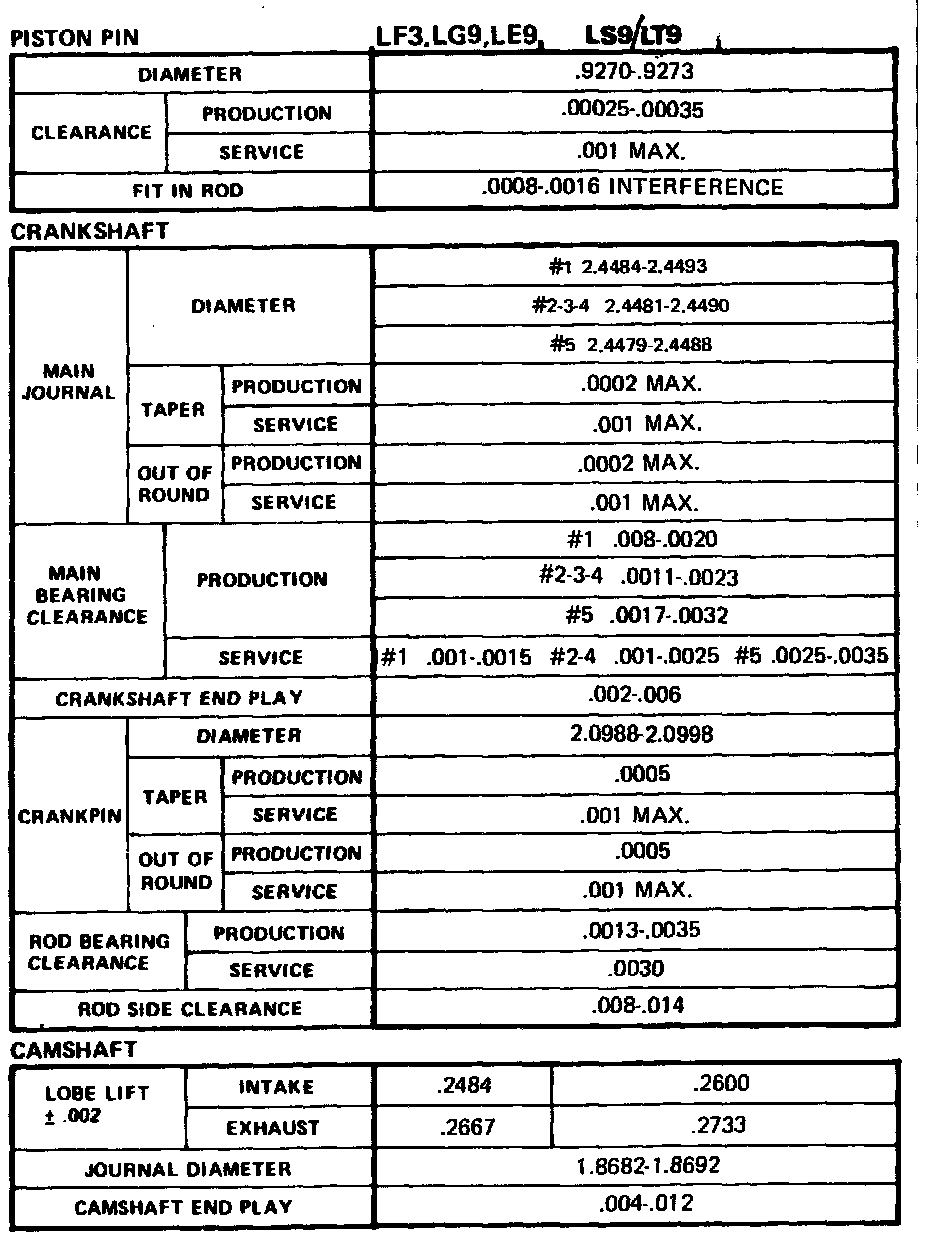

Engine Specifications:

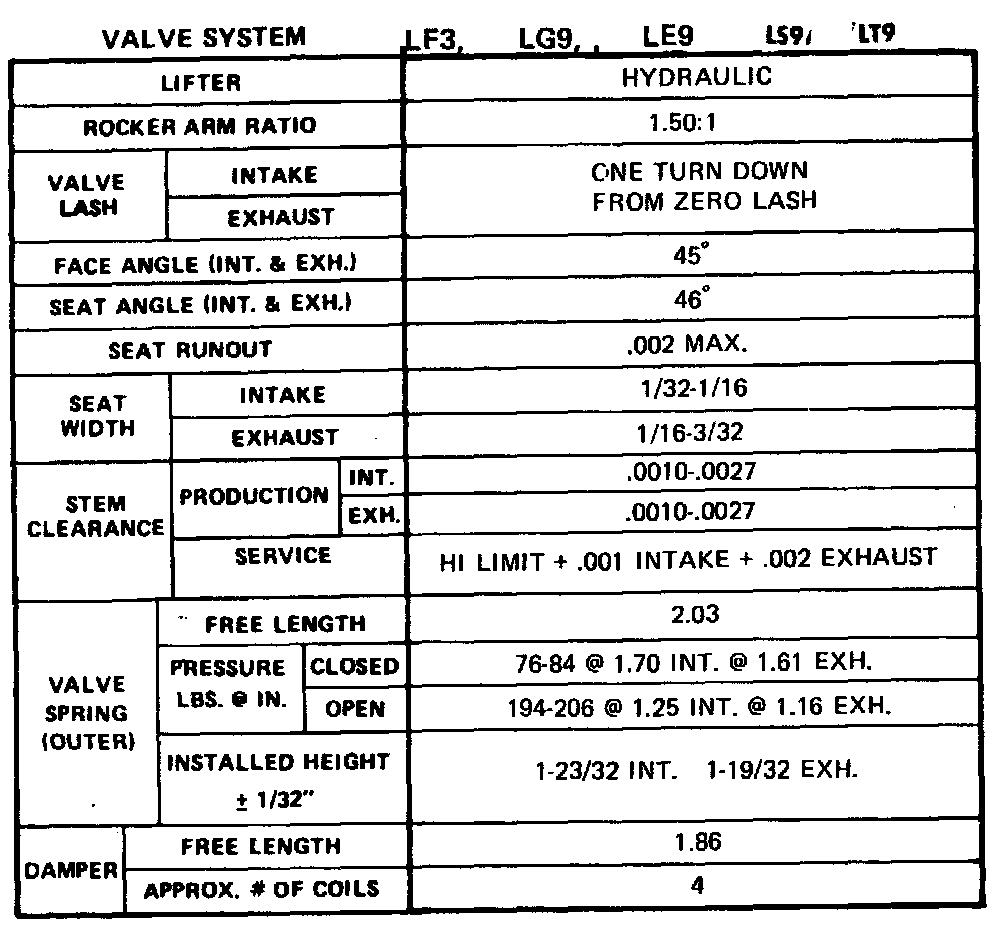

Engine Specifications:

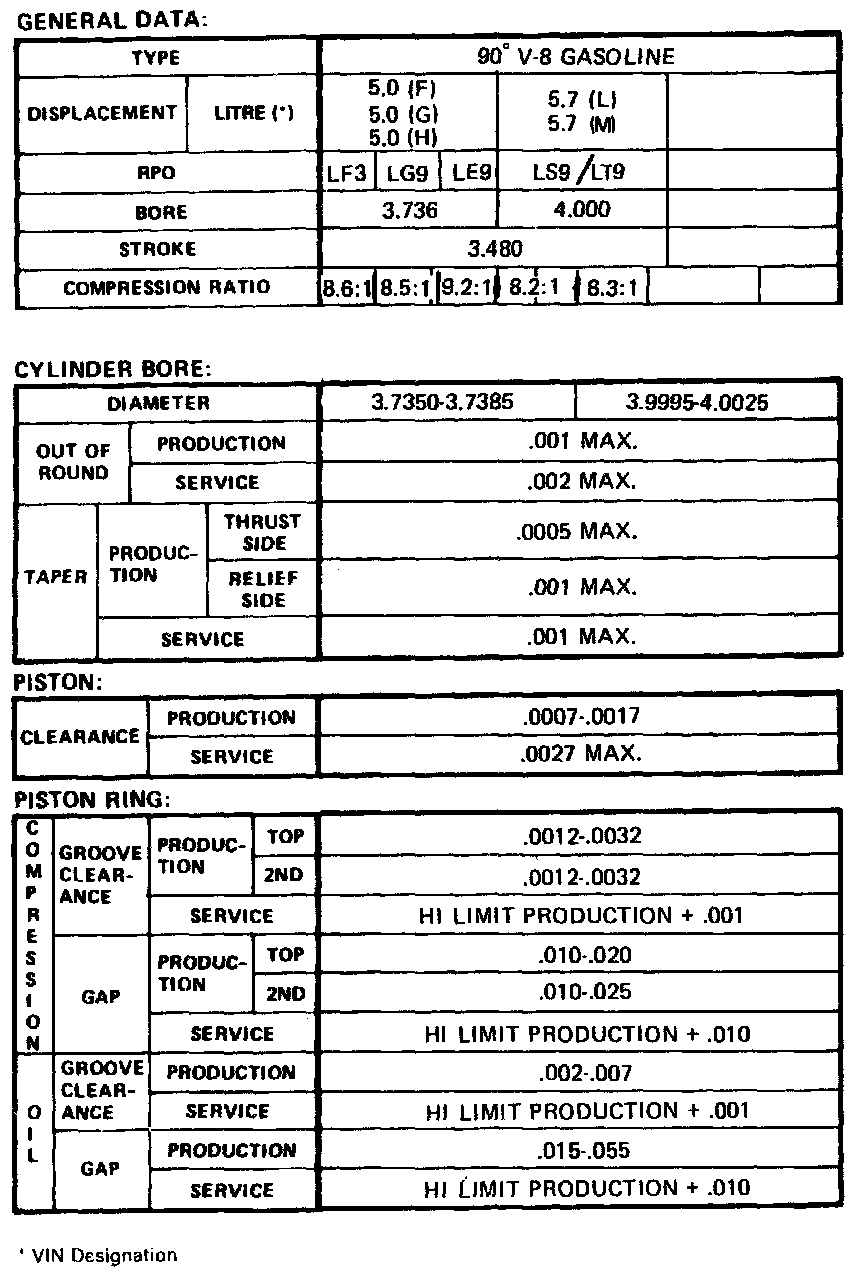

Engine Specifications:

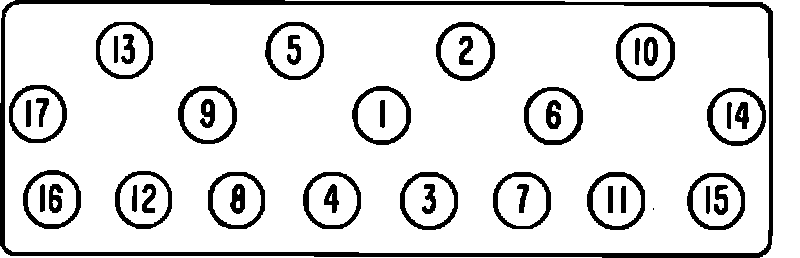

Cylinder Head Torque Sequence:
