Base Ignition Timing Specifications

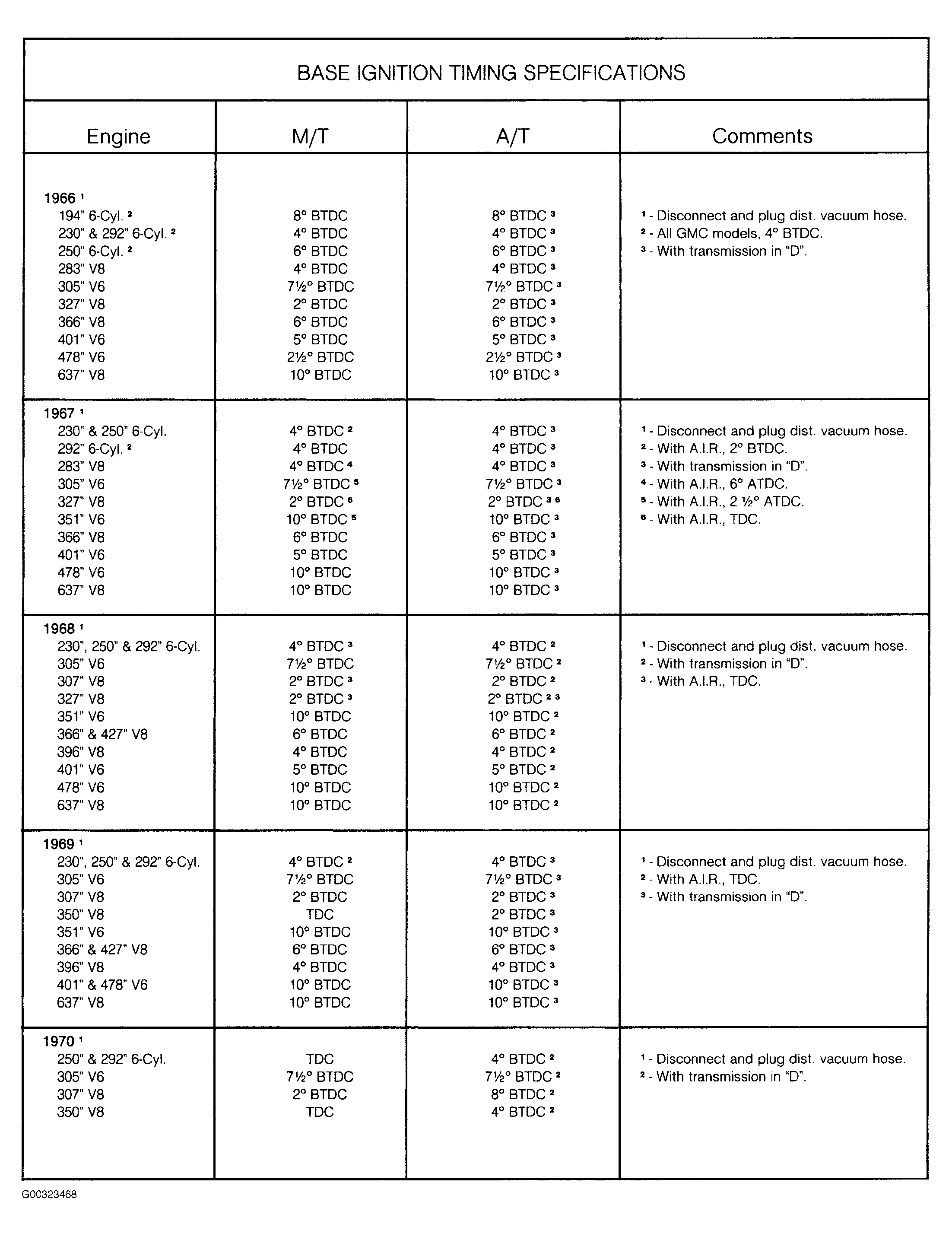

Fig 1:

G00323468

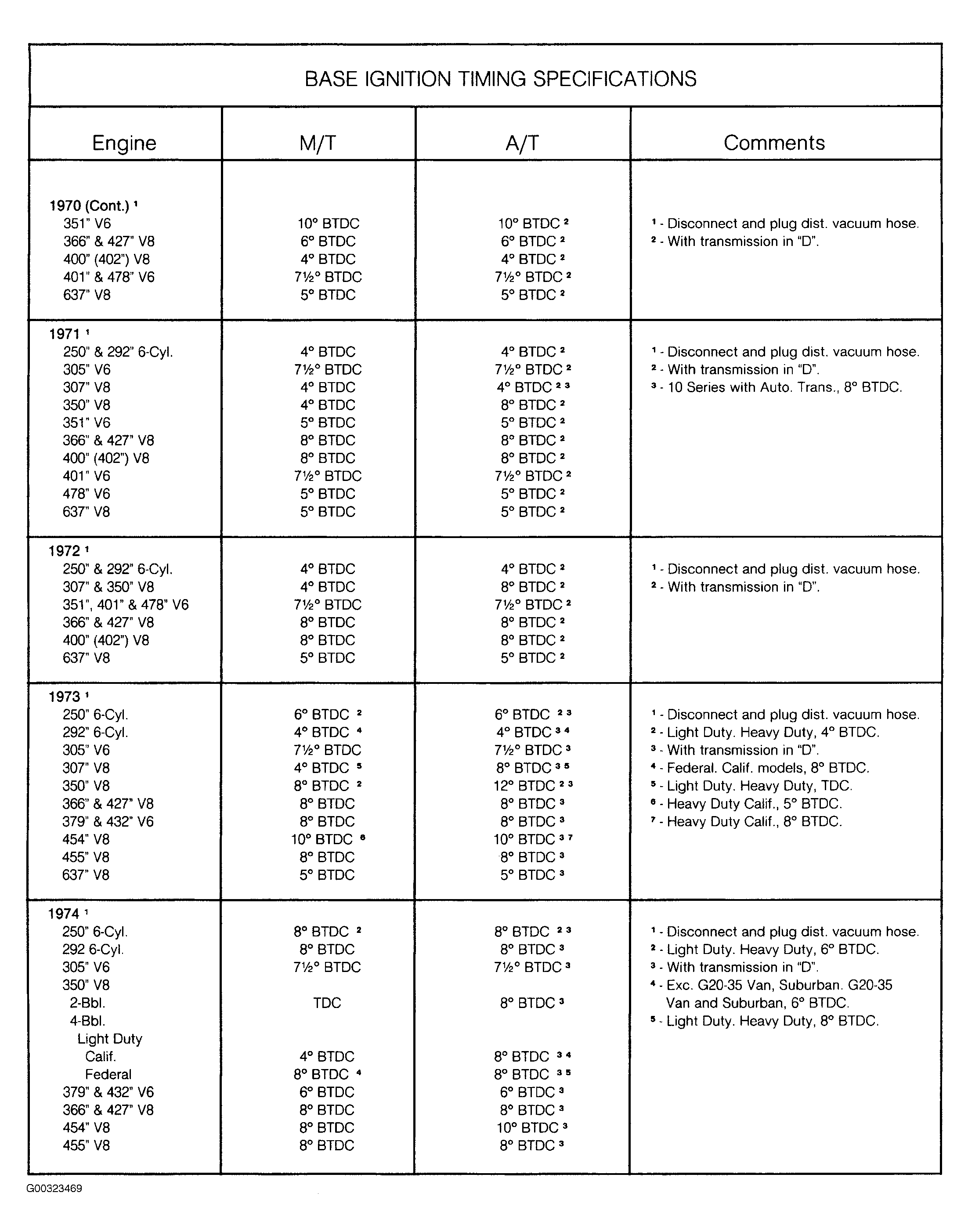

Fig 2:

G00323469

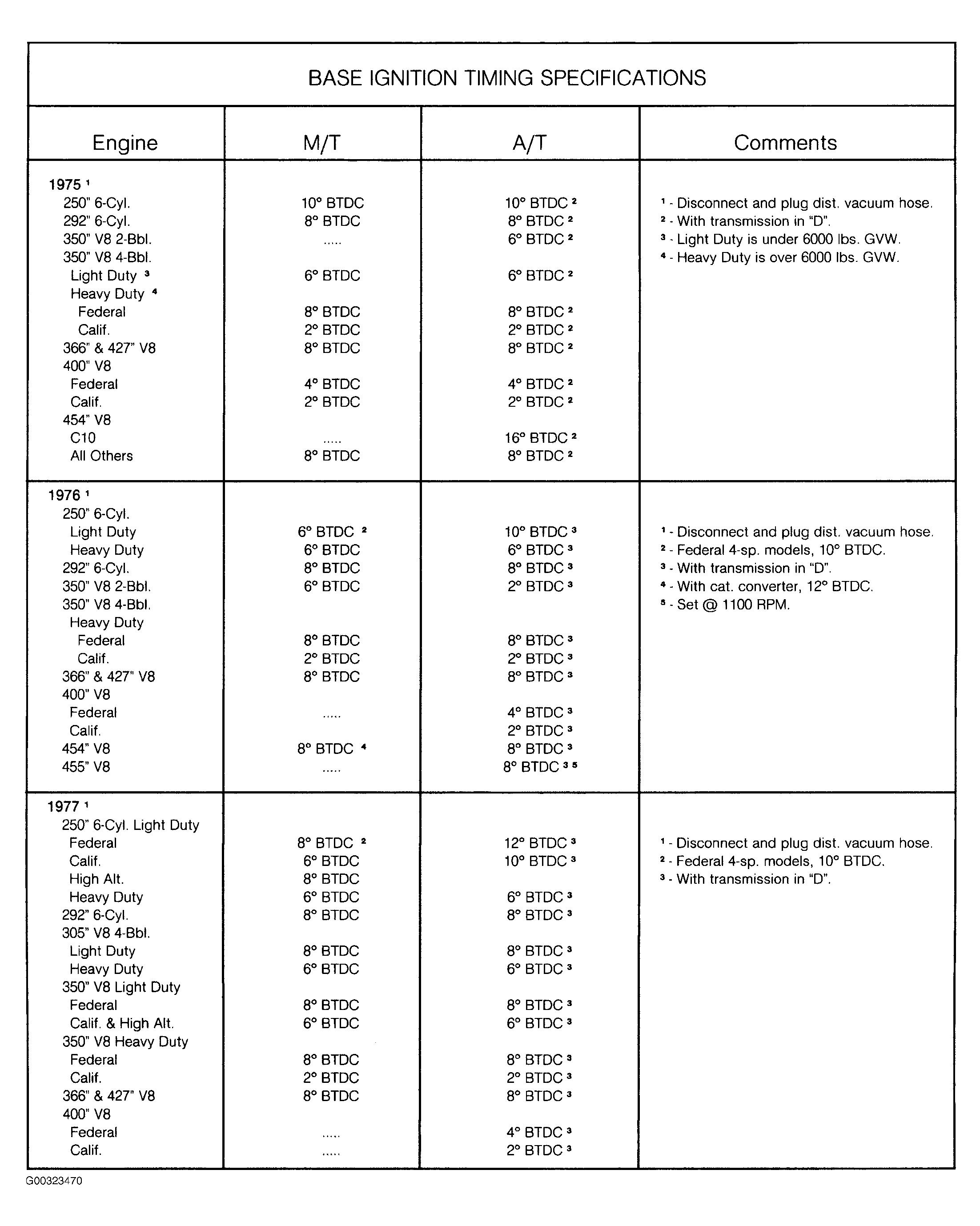

Fig 3:

G00323470

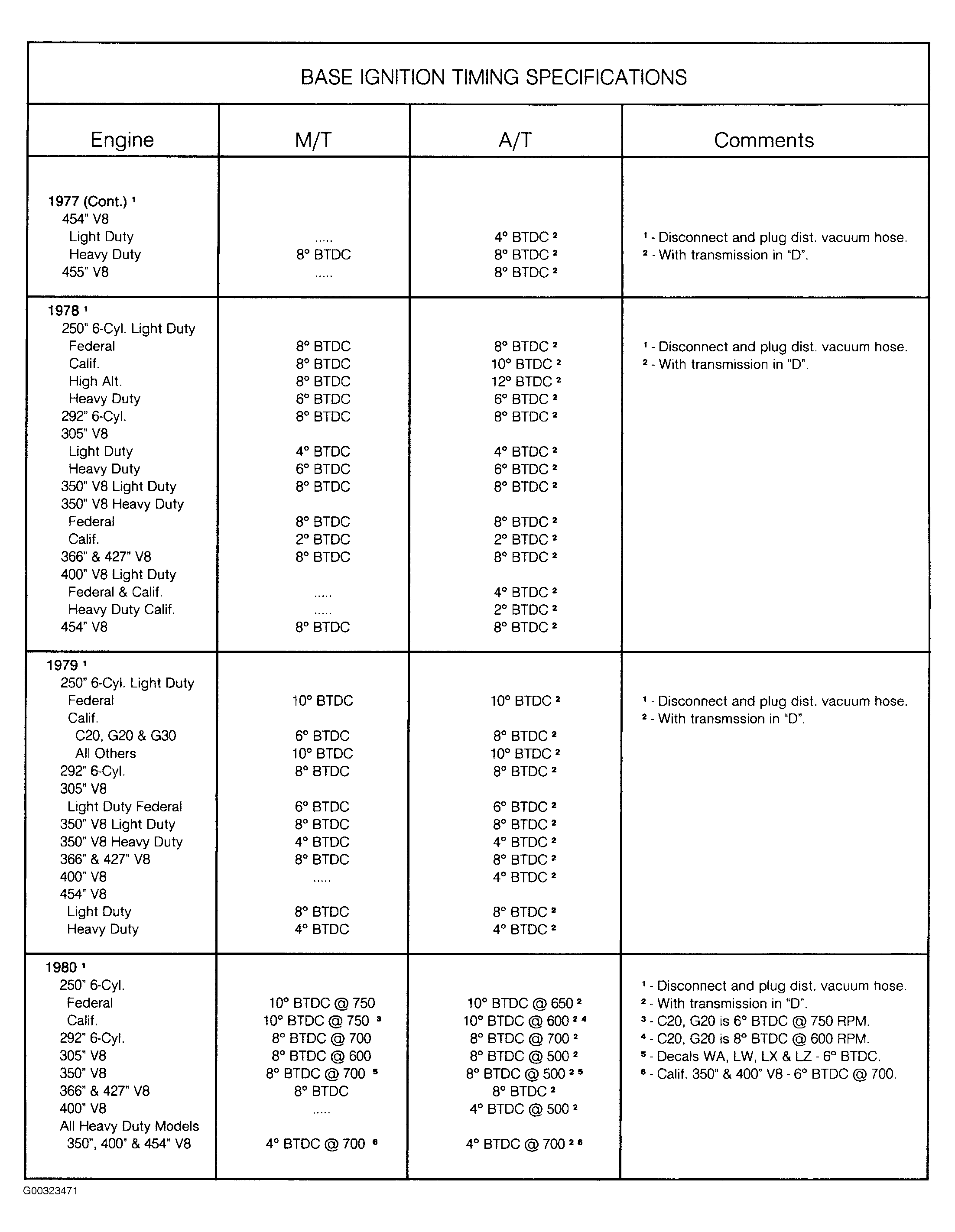

Fig 4:

G00323471

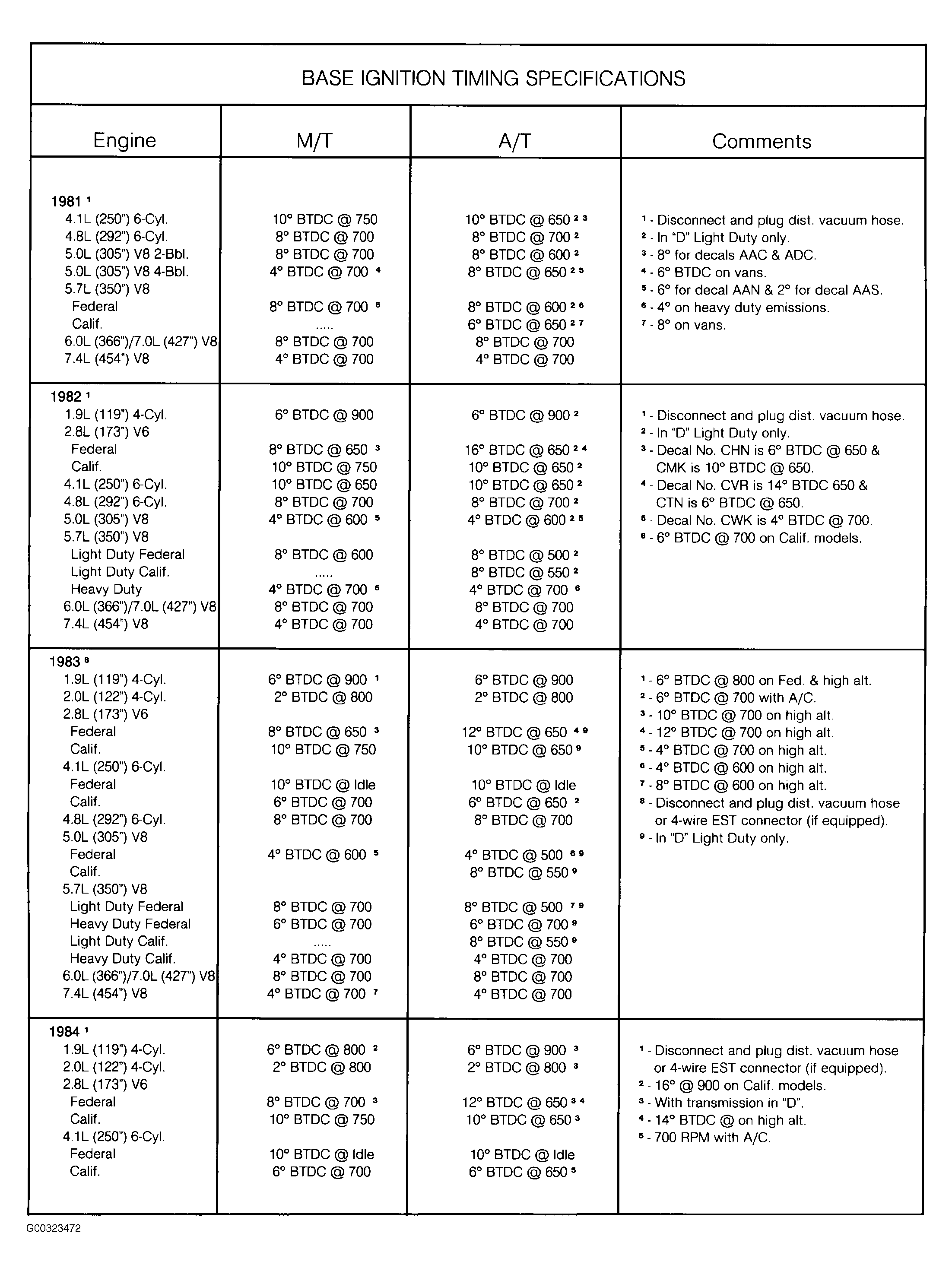

Fig 5:

G00323472

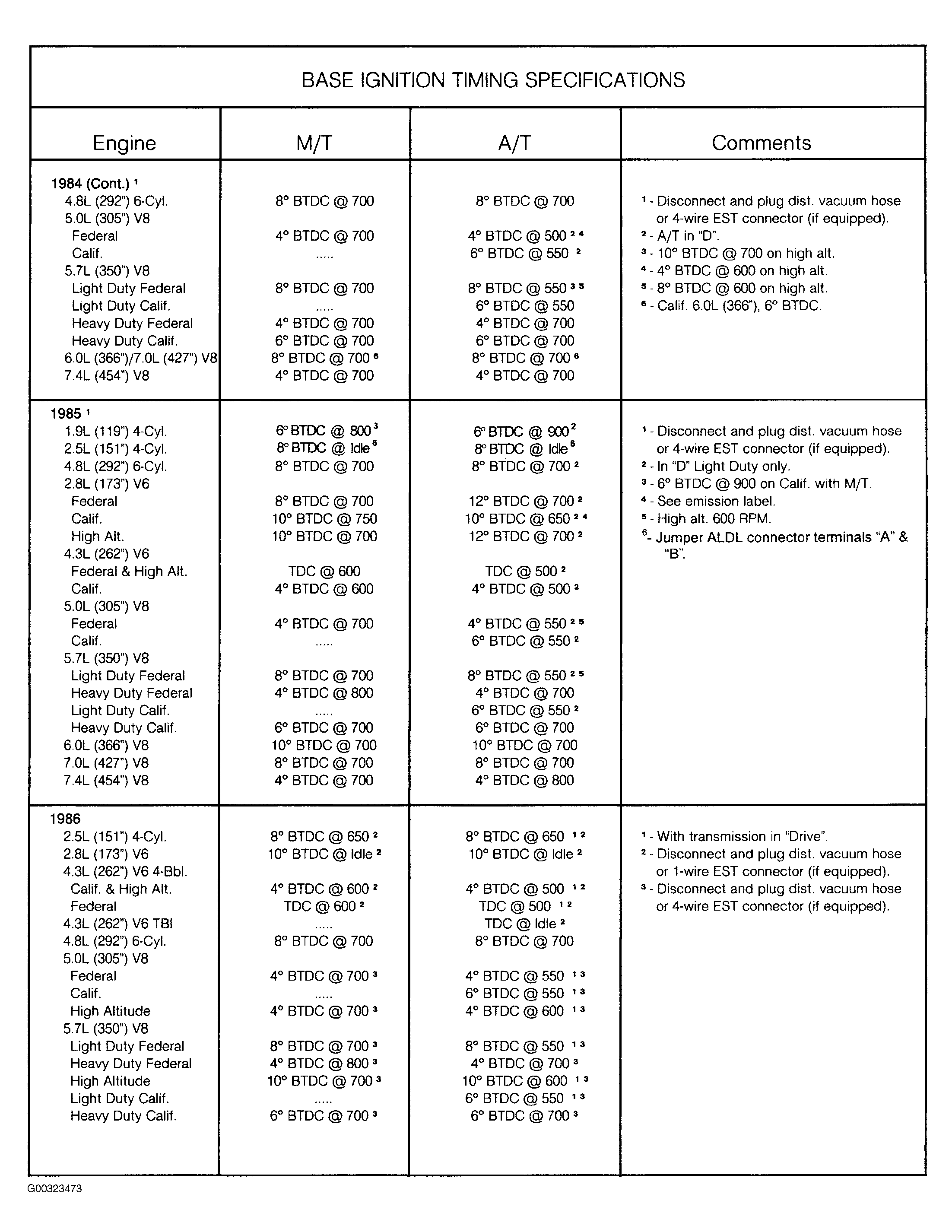

Fig 6:

G00323473

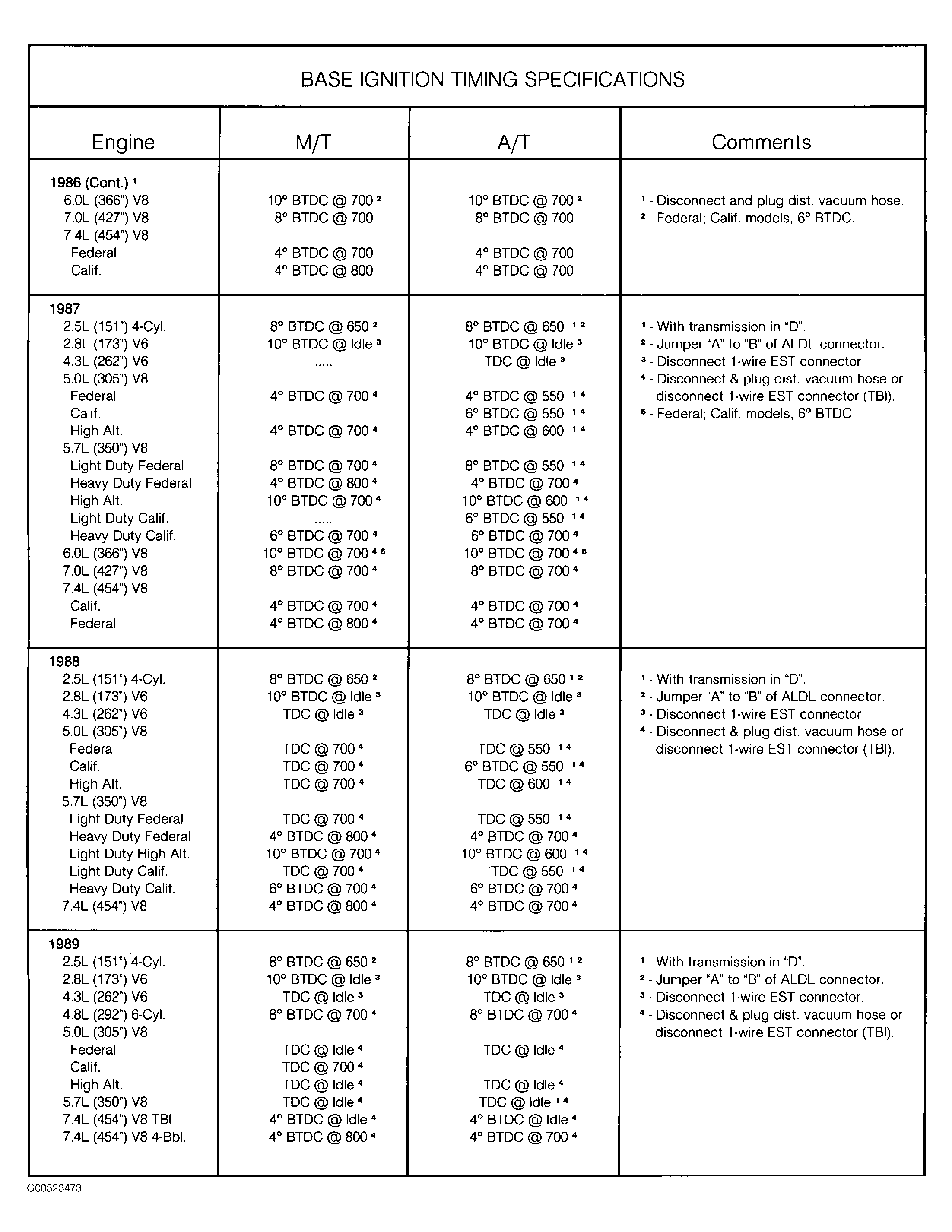

Fig 7:

G00323474

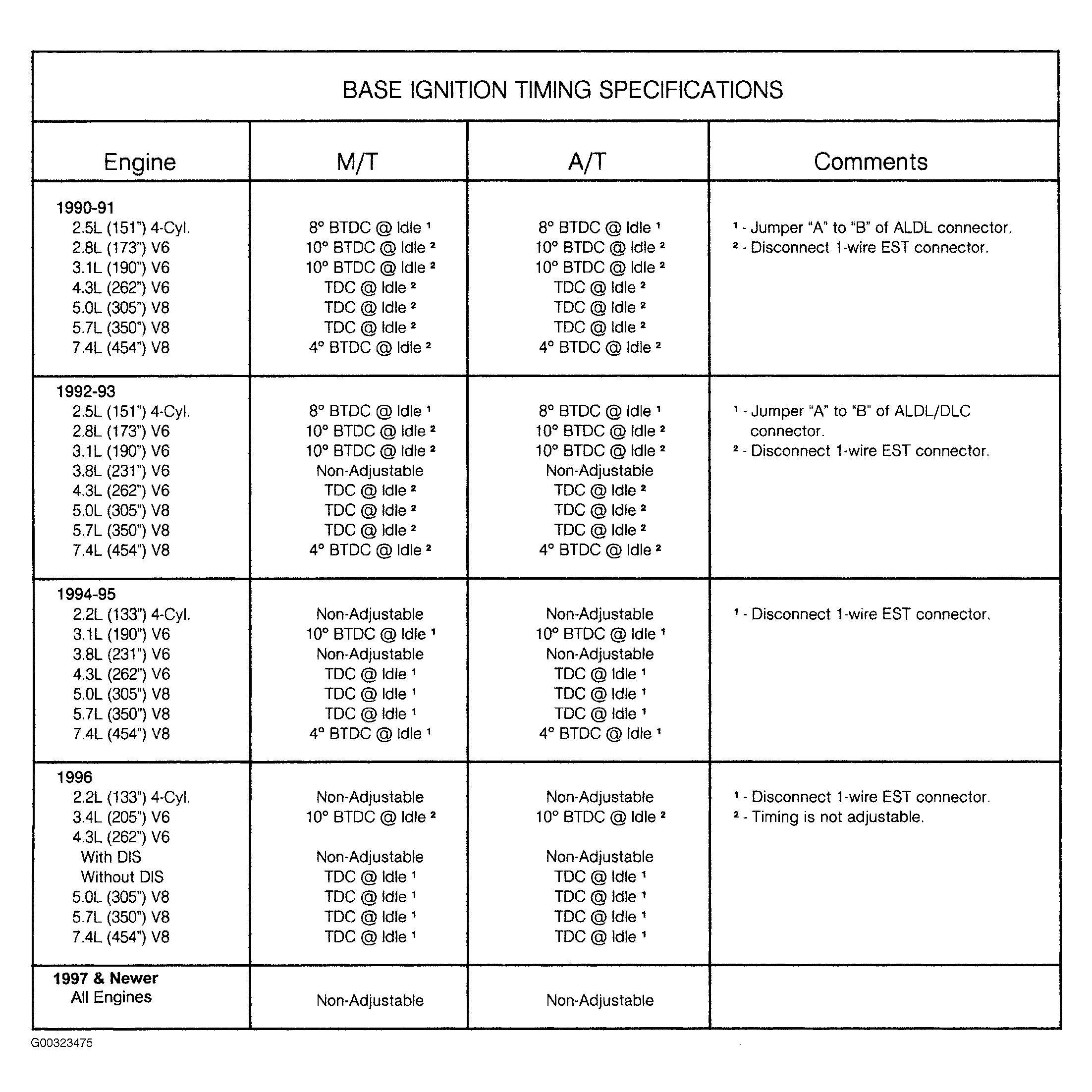

Fig 8:

G00323475
