Code 12 - No Reference Signal To ECM

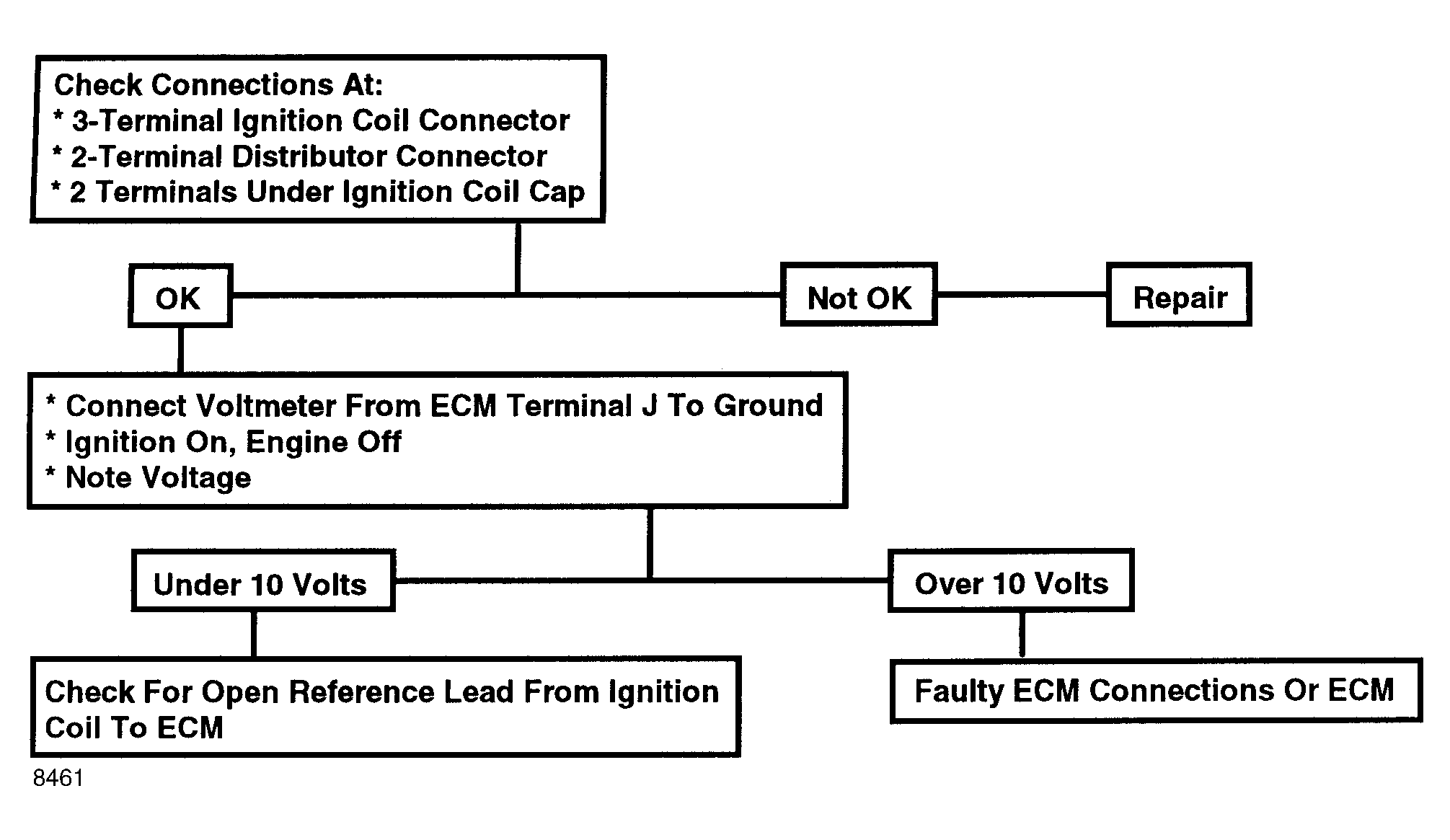

Fig 1: Flow Chart, Trouble Code 12 - No Reference Signal To ECM
G8461
Fig 2: Flow Chart, Trouble Code 12 - No Reference Signal To ECM
GB0047676
