Code 14 - Shorted Cts Circuit

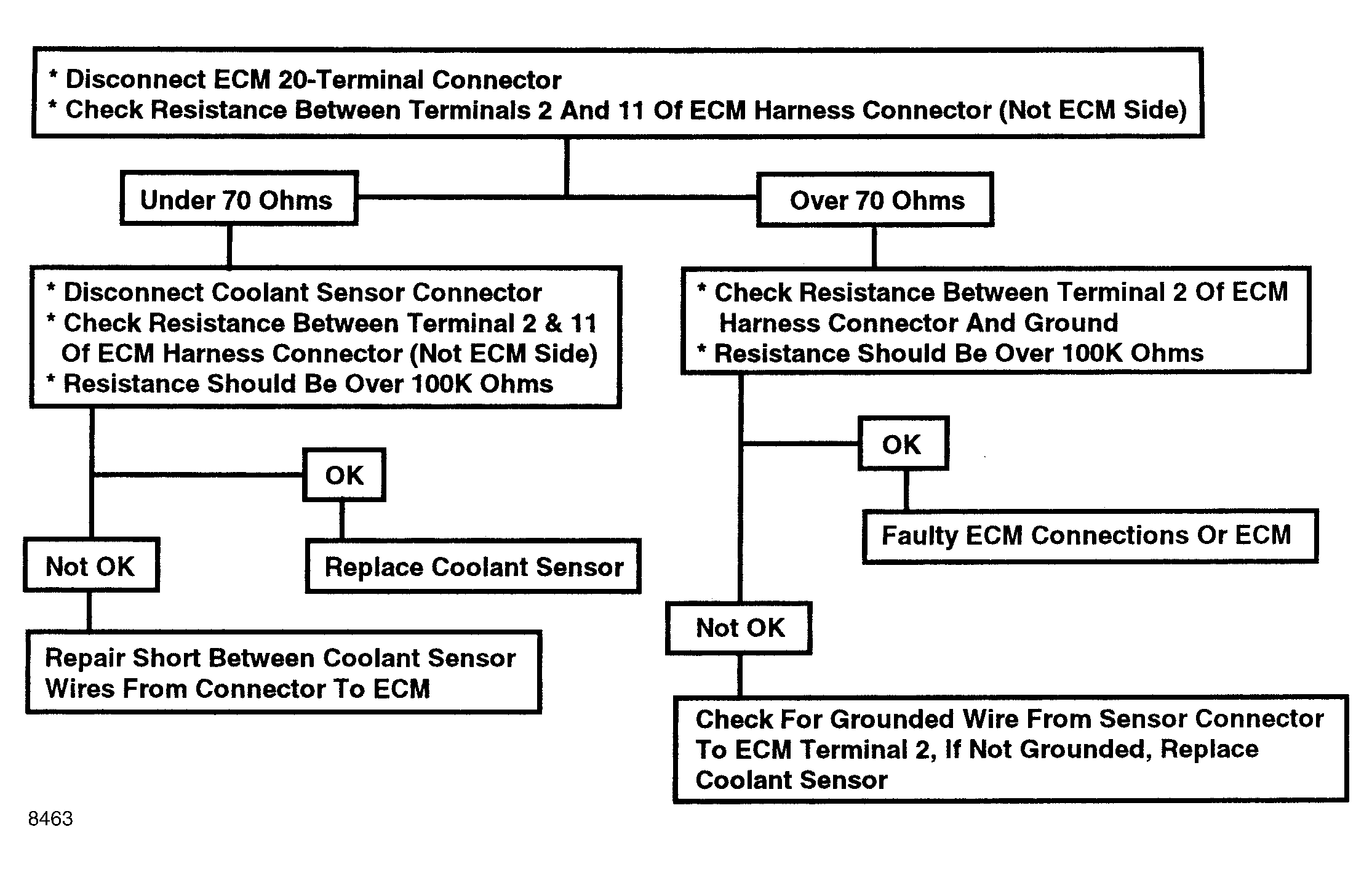

Fig 1: Flow Chart, Trouble Code 14 - Shorted Coolant Temp Sens Ckt
G8463
Fig 2: Flow Chart, Trouble Code 14 - Shorted Coolant Temp Sens Ckt
GB0047677
