Code 45 - Rich O2 Sensor Indication

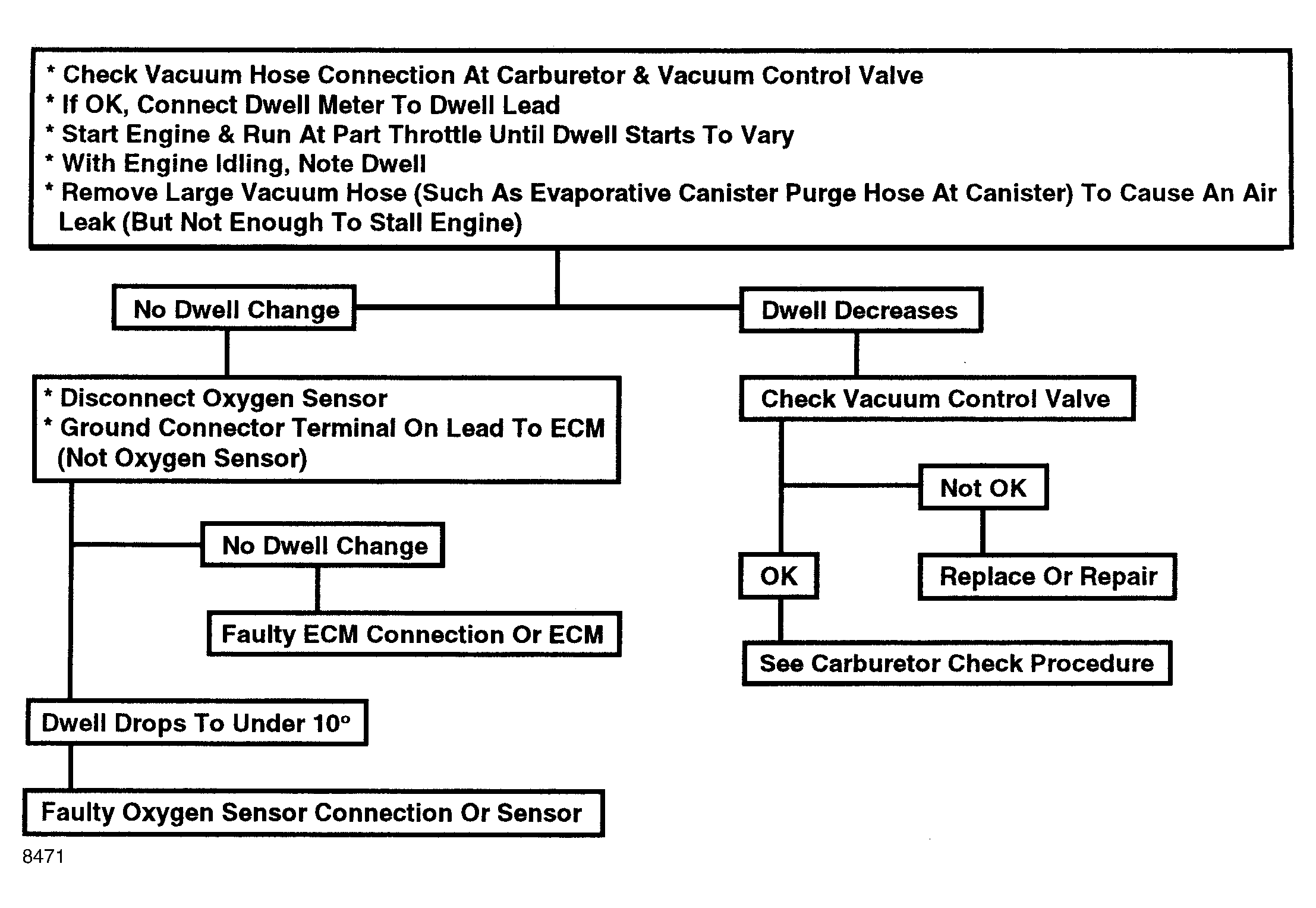

Fig 1: Flow Chart, Trouble Code 45 - Rich Oxygen (O2) Sensor Indication
Fig 2: Flow Chart, Trouble Code 45 - Rich Oxygen (O2) Sensor Indication
