System Performance Check

  1. This check verifies correct operation of the vacuum control solenoid and the main metering circuit, and also checks that the Closed Loop Emission Control system is functioning correctly. This check should always be made after any repair on the system.
  2. When performing this check, always engage parking brake and block drive wheels. Transmission should be in neutral (man. trans.) or "P" (auto. trans.).

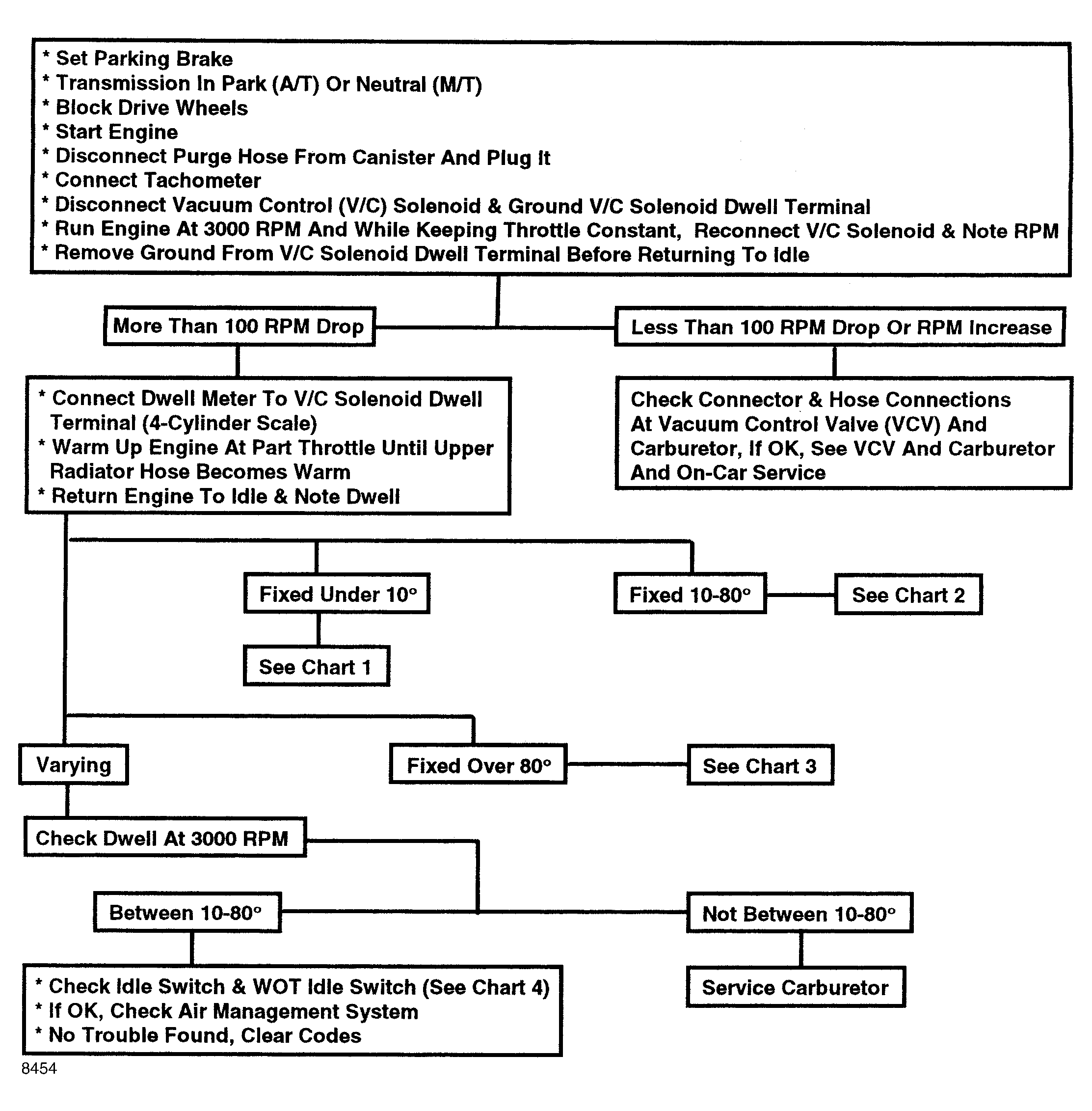

Fig 1: Flow Chart - System Performance Check
G8454

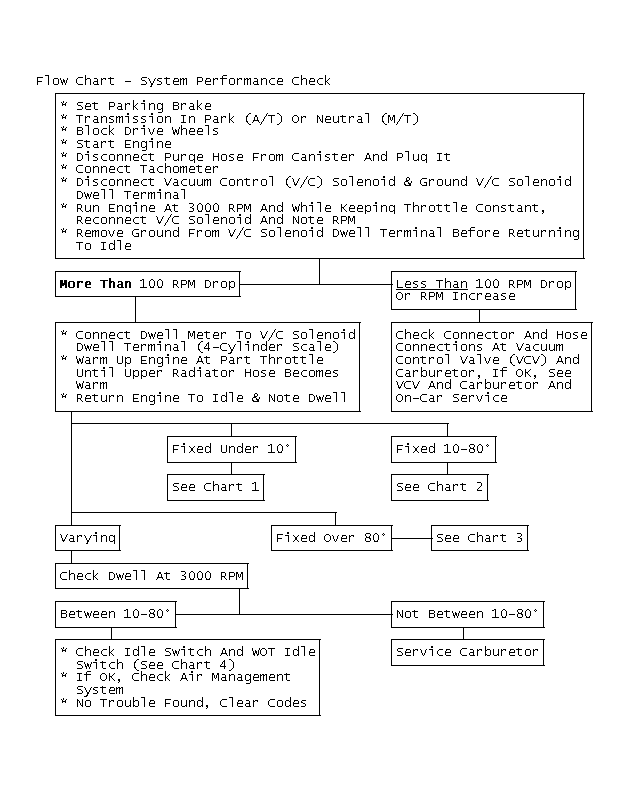

Fig 2: Flow Chart - System Performance Check
GB0047669
