Diagnostic Circuit Check

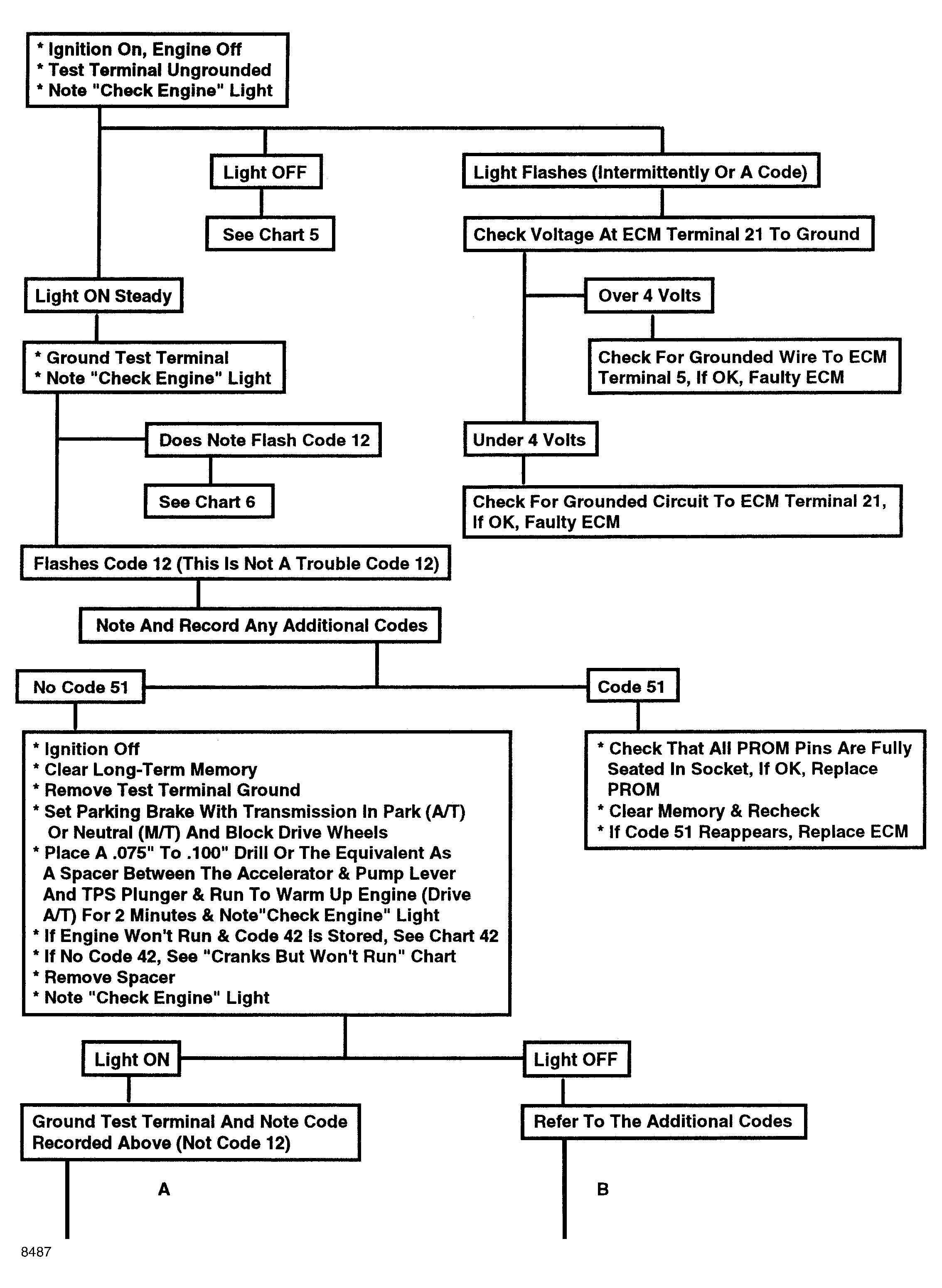

Fig 1: Flow Chart - Diagnostic Circuit Check
G8487

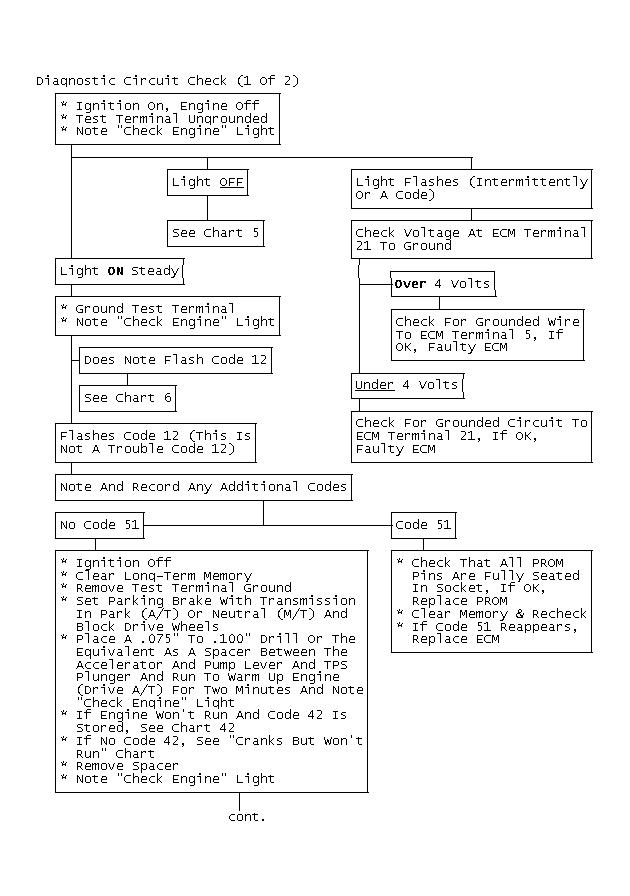

Fig 2: Flow Chart - Diagnostic Circuit Check (1 Of 2)
GB0048214
Fig 3: Flow Chart - Diagnostic Circuit Check (2 Of 2)
GB0048215
