TPS Enrichment Check

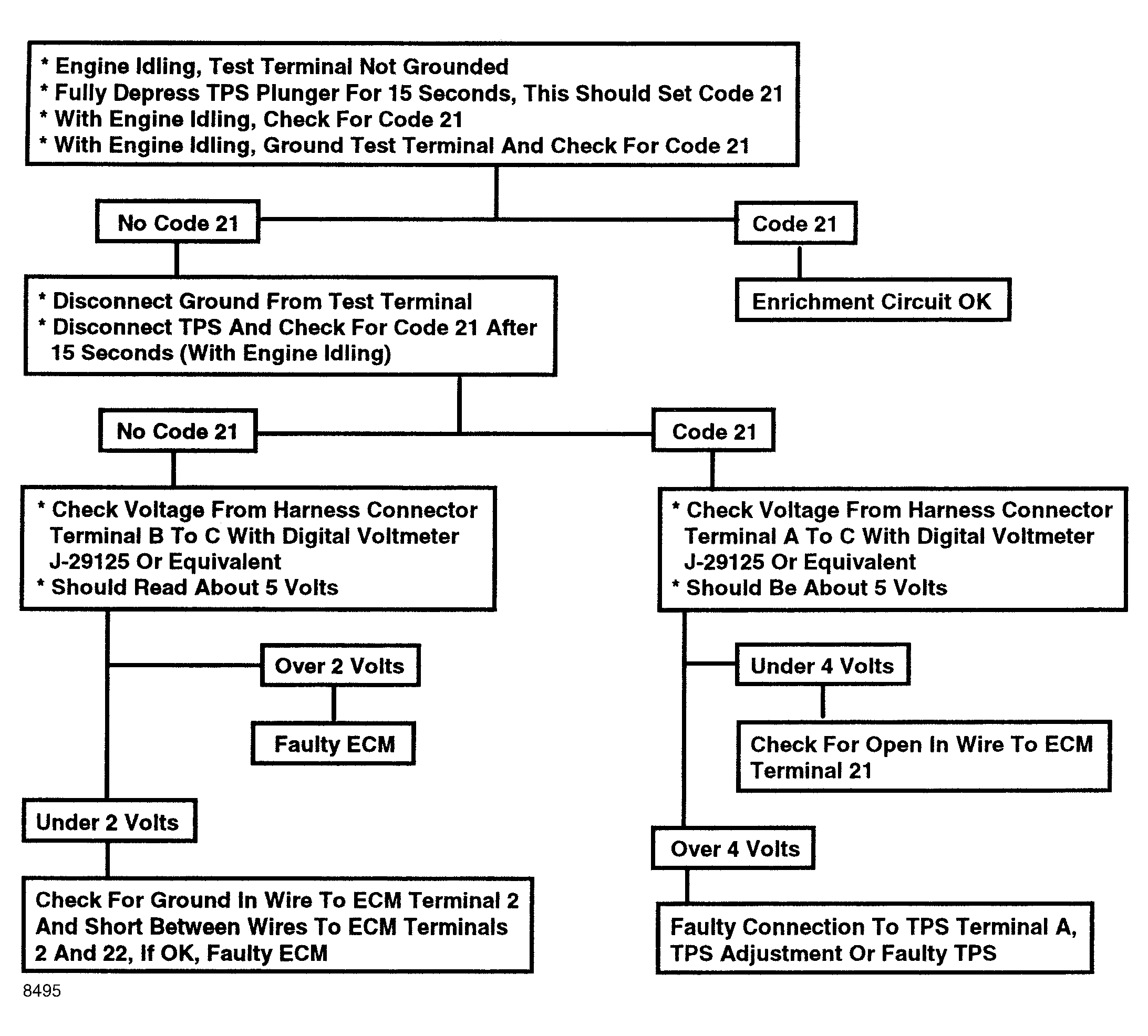

Fig 1: Flow Chart - TPS Enrichment Check

G8495

Fig 2: Flow Chart - TPS Enrichment Check

GB0048220
