Code 13 - O2 Sensor CKT

Fig 1: Flow Chart, Code 13 - Oxygen (O2) Sensor Circuit
G8509

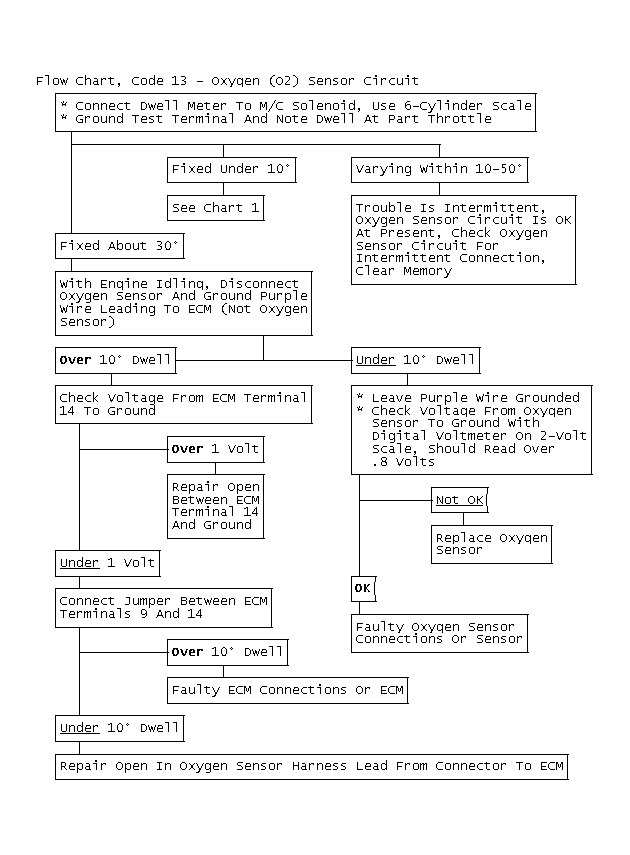

Fig 2: Flow Chart, Code 13 - Oxygen (O2) Sensor Circuit
GB0047695
