S15 Jimmy 1.9 A, RWD, Automatic
>>
Repair and Diagnosis
>>
Engine Performance
>>
System
>>
2.8L CEC Tests W/Codes
>>
System Performance Check
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
System Performance Check

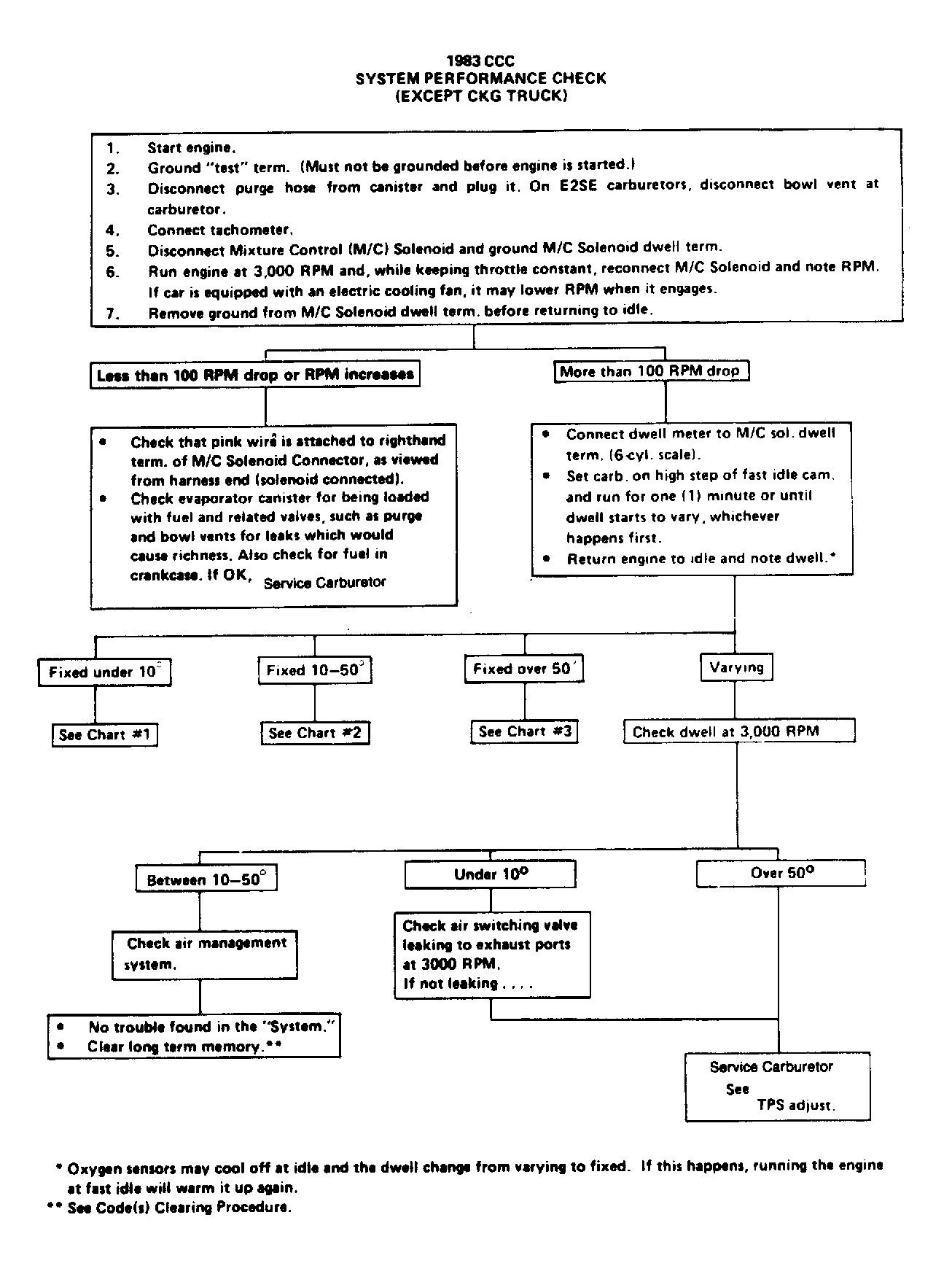

Fig 1: System Performance Check
