Miscellaneous Components
MISCELLANEOUS COMPONENTS LOCATION
| Component | Location |
|---|---|

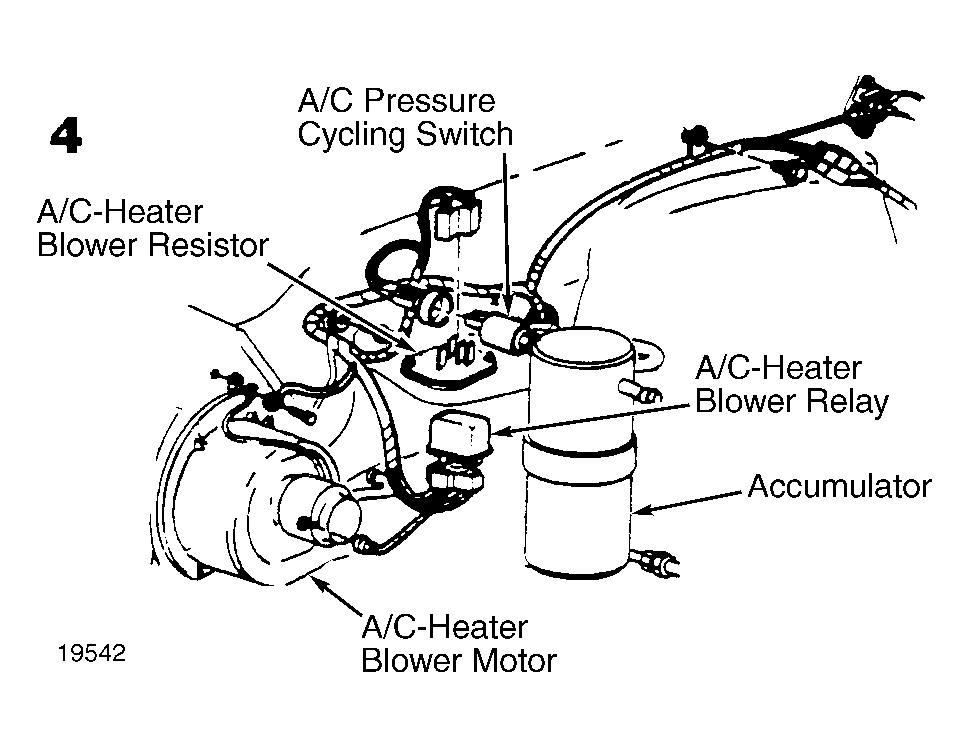

| A/C-Heater Blower Resistor | On evaporator case in engine compartment. See Figure. |
| ALDL Connector | Under right side of dashboard. |
| Convenience Center | Under left side of dashboard. |
| Fuel Heater/Water Detector (6.2L) | On firewall in engine compartment. |
| Fuse Block | Under left side of dashboard. |
| IAC Activator | On right side of throttle body. |
| Power Window Circuit Breaker | On fuse block. |
