Ignition System: Distributor

Engines are equipped with a Delco-Remy HEI solid state distributor. No adjustments are necessary.

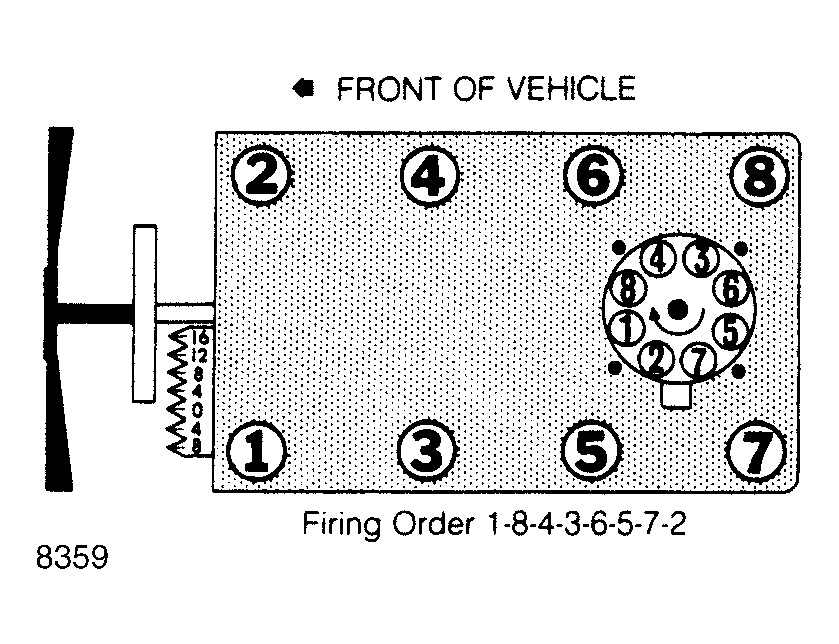

Fig 1: Firing Order & Distributor Rotation
G8359
