Steering Connecting Rod Replacement: Installation

To install, reverse removal procedure. Ensure threads on studs and nuts are clean and smooth. Check ball stud seals. Replace seals (if necessary). Inner and outer tie rod end threads must be installed equally within 3 threads. Install connecting rod on steering components. Tighten nuts. Install NEW cotter pins. Ensure connecting rod clamps are properly aligned.

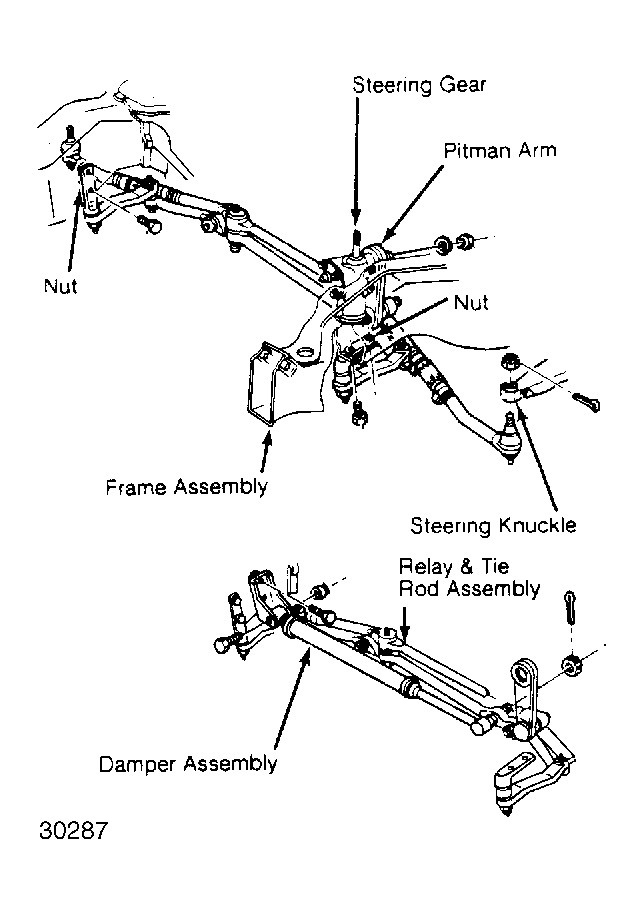

Fig 1: Steering Linkage ("R" Series & P20/P30 Step Van)

Courtesy of GENERAL MOTORS CORP.

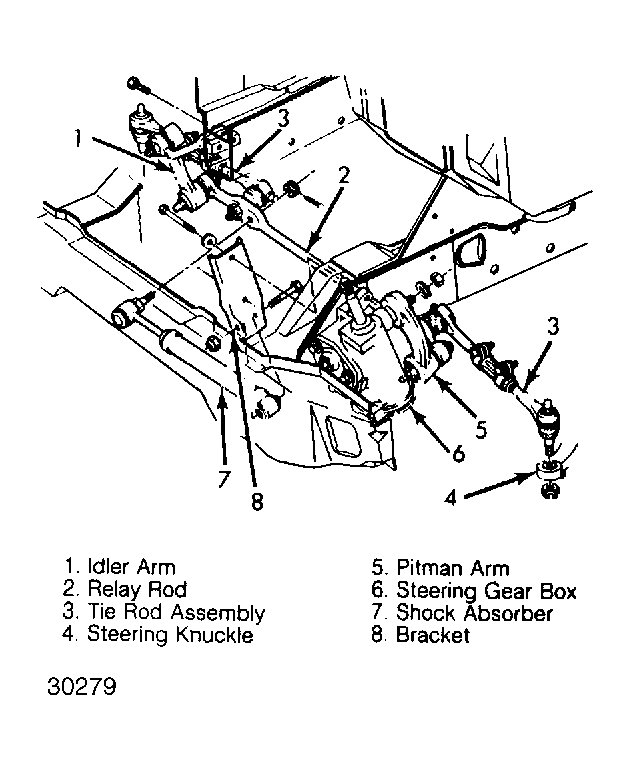

Fig 2: Steering Linkage ("G" Series)

Courtesy of GENERAL MOTORS CORP.

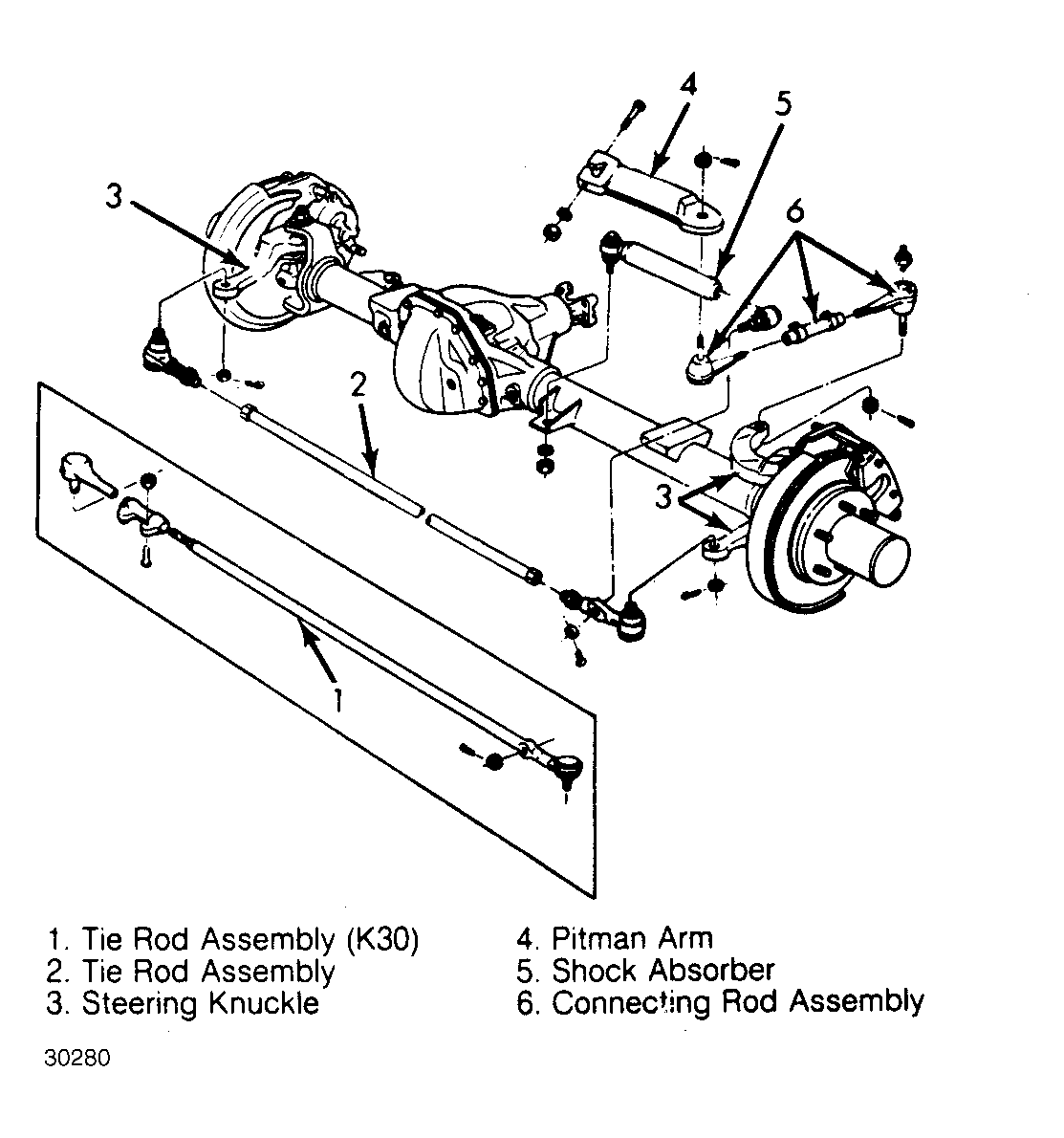

Fig 3: Steering Linkage ("V" Series)

Courtesy of GENERAL MOTORS CORP.

Fig 4: Steering Linkage with I-Beam Axle (P30)

Courtesy of GENERAL MOTORS CORP.

Fig 5: Steering Linkage (P30 Motorhome)

Courtesy of GENERAL MOTORS CORP.

Fig 6: Steering Linkage ("S" Series)

Courtesy of GENERAL MOTORS CORP.

Fig 7: Steering Linkage (Astro & Safari)

Courtesy of GENERAL MOTORS CORP.
