Connector Identification & Speed Control Fuse Location

WARNING: This page is about a different car, the 1995 Plymouth Voyager, 1995 Plymouth Grand Voyager, 1995 Dodge Grand Caravan, 1995 Dodge Caravan, and 1995 Chrysler Town & Country. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: For connector terminal identification, see Fig 1 -8.

Fuse block is located on left side of instrument panel, behind access door. Speed (cruise) control fuse is No. 14.

Fig 1: Identifying Brake Switch Connector Terminals
G94H65828Courtesy of CHRYSLER CORP.
Fig 2: Identifying Clockspring Connector Terminals
G93A76331Courtesy of CHRYSLER CORP.
Fig 3: Identifying Speed Control Servo Connector Terminals
G92F04802Courtesy of CHRYSLER CORP.

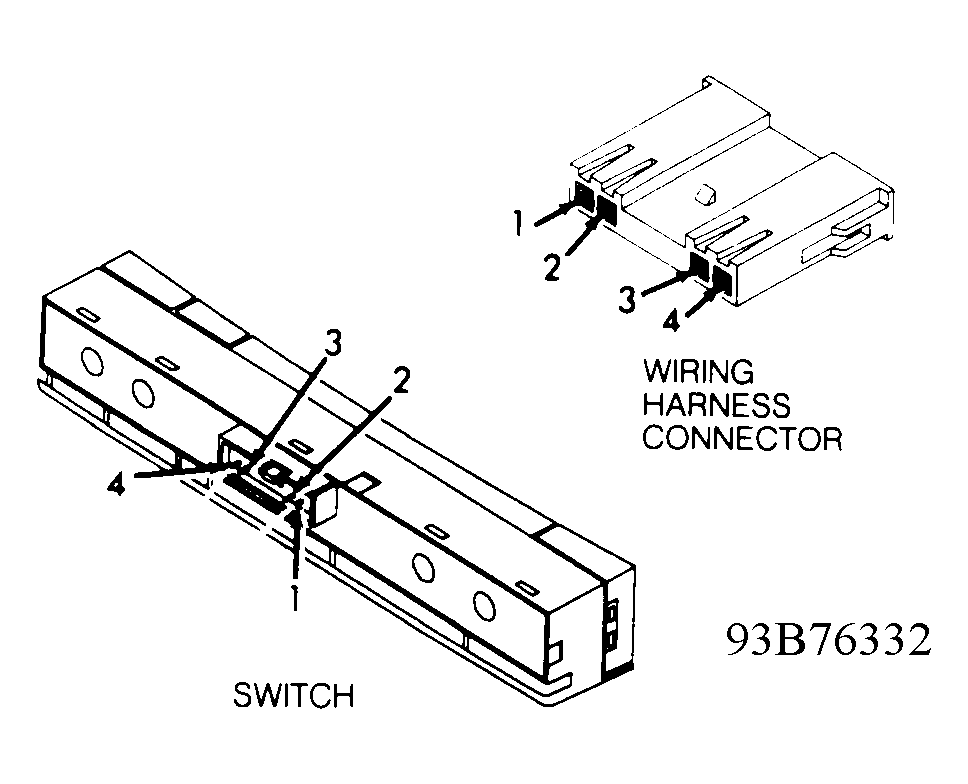

Fig 4: Identifying Speed Control Switch Connector Terminals
G93B76332Courtesy of CHRYSLER CORP.
Fig 5: Identifying Vehicle Speed Sensor (VSS) Connector Terminals
G93C76333Courtesy of CHRYSLER CORP.
Fig 6: Powertrain Control Module (PCM) Connector Terminals ID
G92B04800Courtesy of CHRYSLER CORP.
