Test B: Diagnosis Of Power Window System

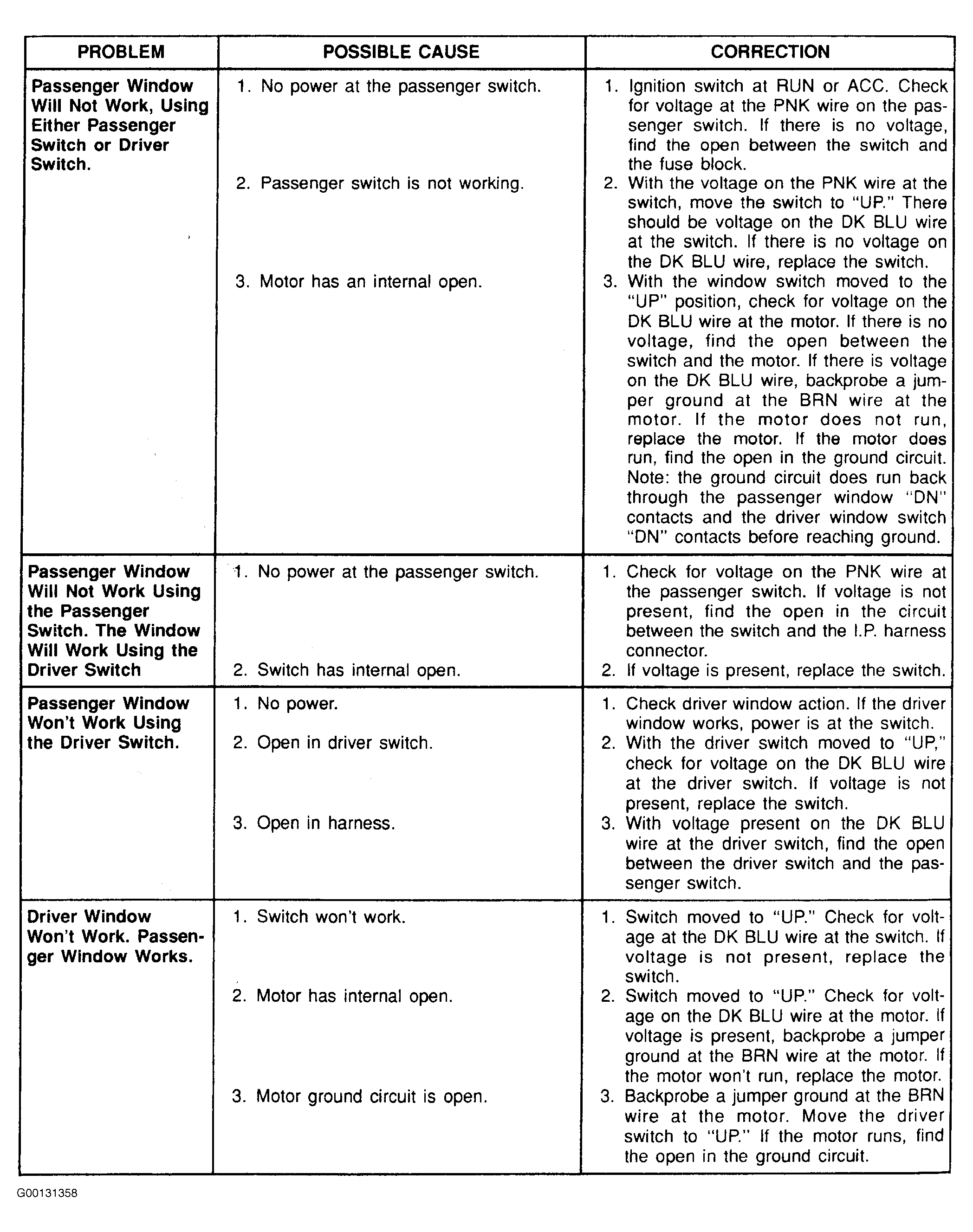

Fig 1: Diagnosis Of Power Window System
Courtesy of GENERAL MOTORS CORP.
