Connector Identification

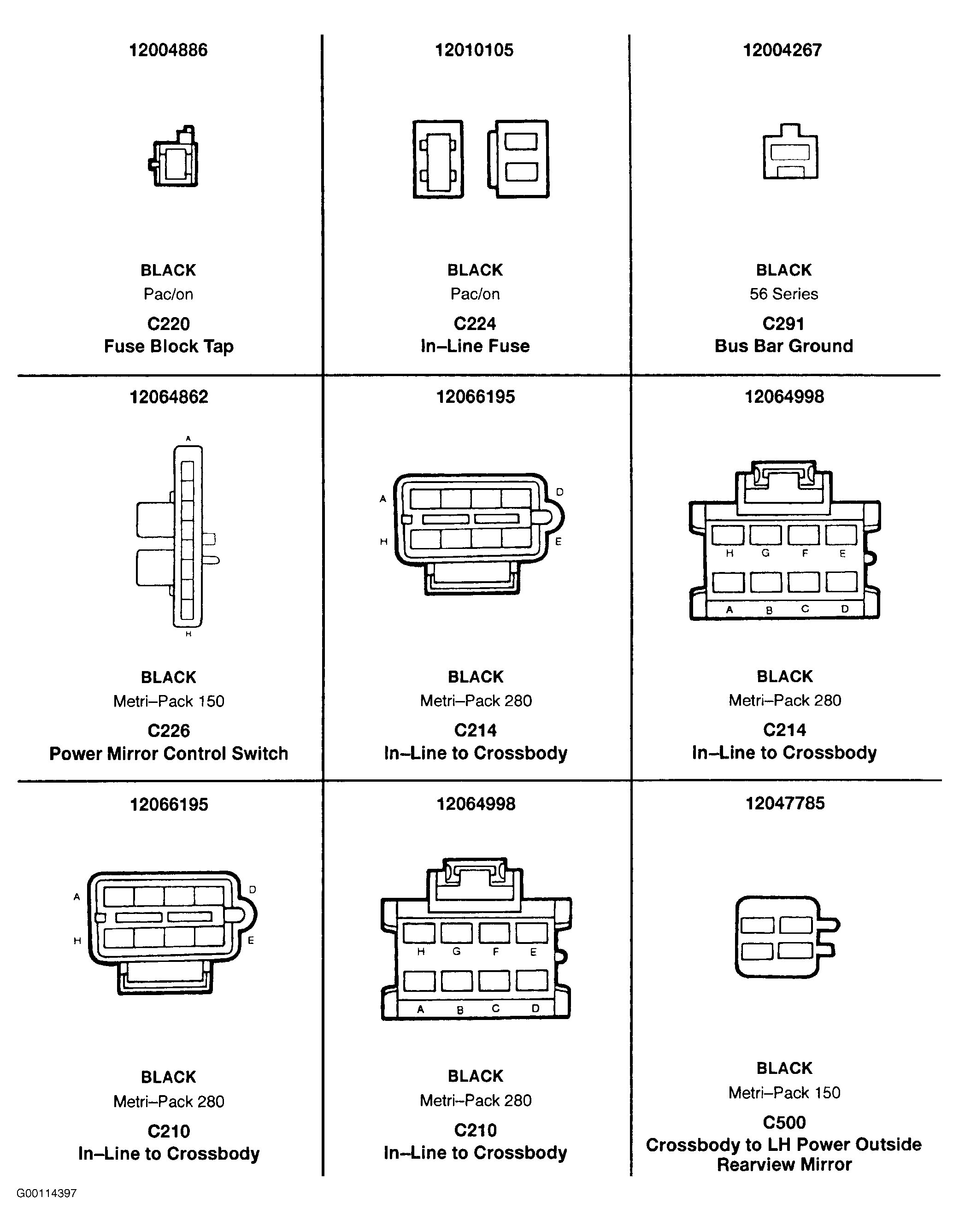

Fig 1: Power Mirror Connector End View (1 Of 2)
G00114397Courtesy of GENERAL MOTORS CORP.

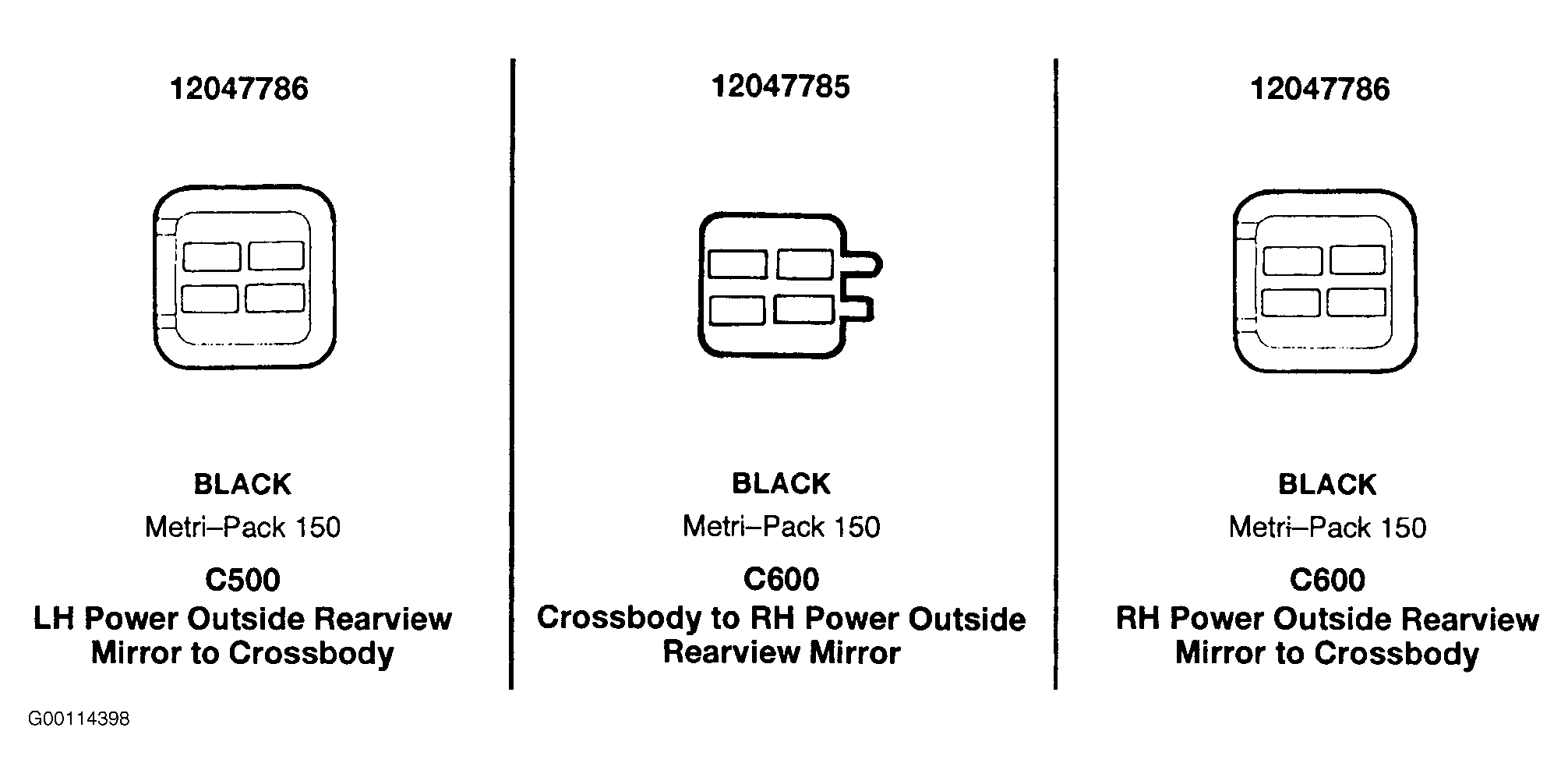

Fig 2: Power Mirror Connector End View (2 Of 2)
G00114398Courtesy of GENERAL MOTORS CORP.
